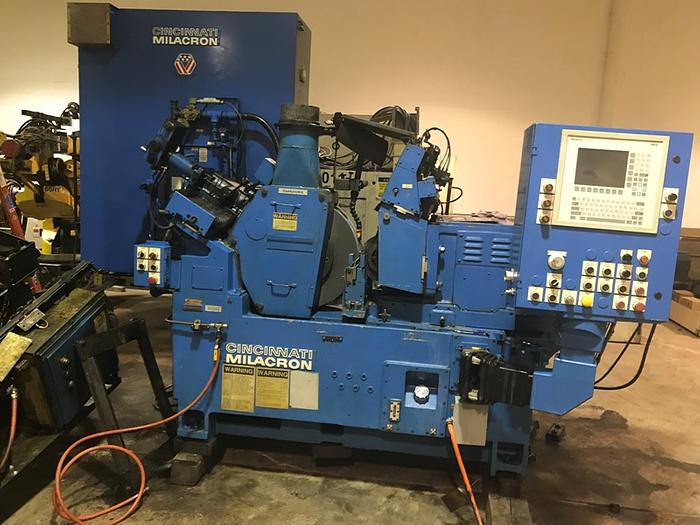

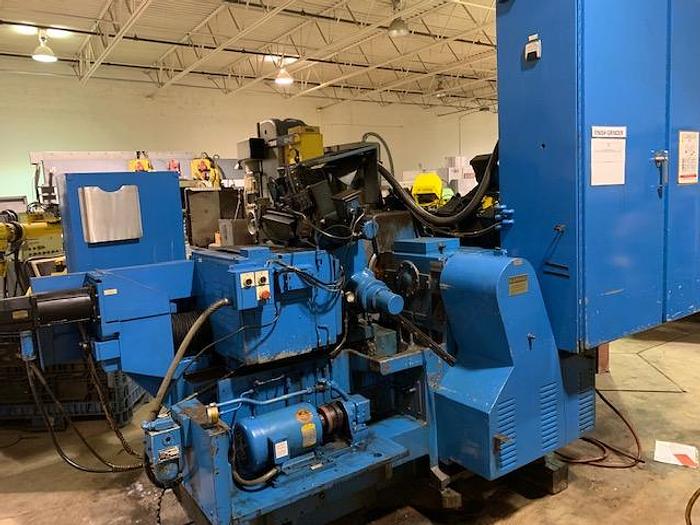

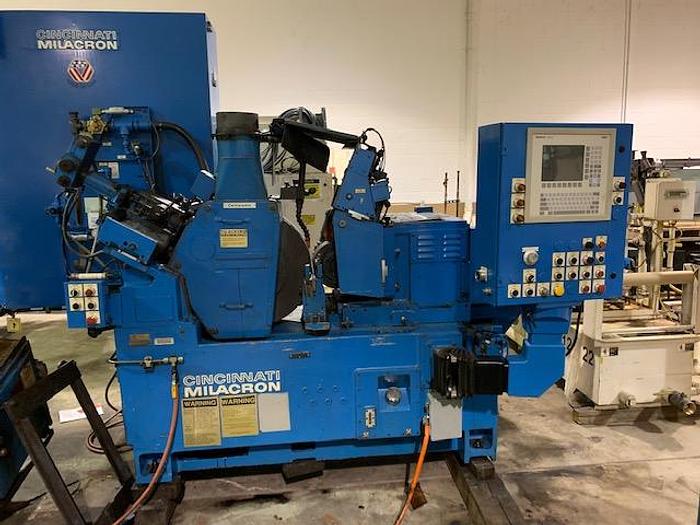

CINCINNATI MODEL 220-8 CENTERLESS GRINDER WITH PLC CONTROLS

Contact us for price

Harbor Springs, MI

orCall 1-231-526-9525

Description

Machine Capacity 0.063-3.000" w/Std. Thrufeed
Max. Work Diameter 4.750"
Min. Diameter Wheelhead 17"
Max. Diameter Wheelhead 24"
Collet Hole Diameter 12"
Grinding Wheel Width 3-8" Max. 10"
Grinding Wheel Speed 6500 ft/min.
Motor 20-HP / 1800 RPM
New Regulating Wheel 12"
Used Regulating Wheel 10"
I.D. Regulating Wheel 5"
No. Regulating Wheel Speeds Infinite
Low Wheel Speeds 15-56 RPM
High Wheel Speeds 56-300 RPM
Regulating Wheel Motor 1-1/2HP @ 1200 RPM
Max. Lower Side Travel 6.375"
Max. Upper Side Travel 2.875"
Hydraulic Reservoir 21 Gal.

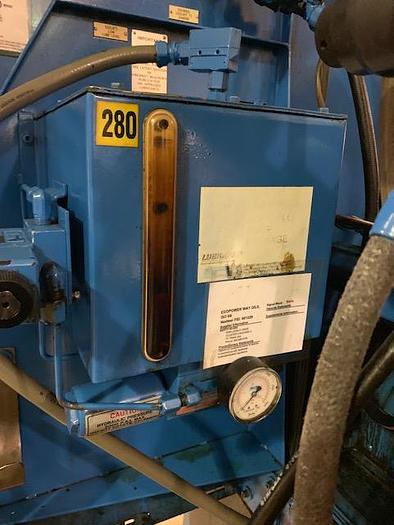

Automatic Feed Lubrication 3 Gal.
Approx. Weight 12,500 lbs.

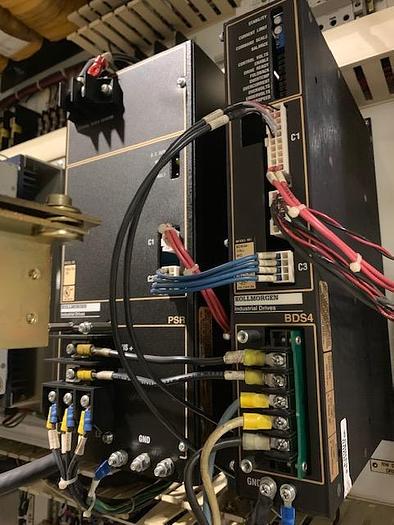

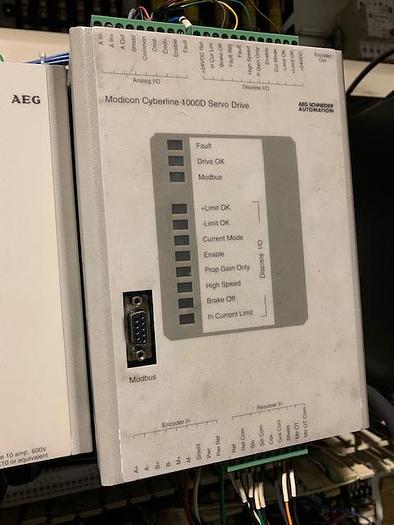

SERVO INFEED MOTOR

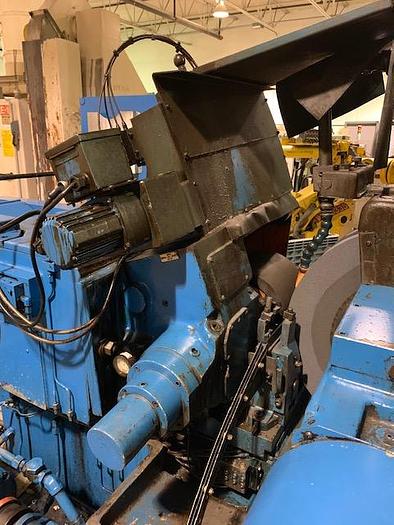

SERVO DRESSER MOTORS

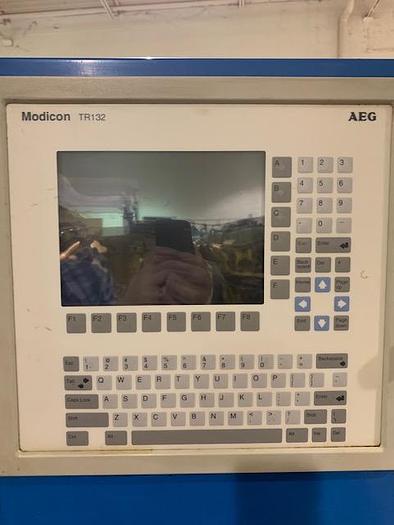

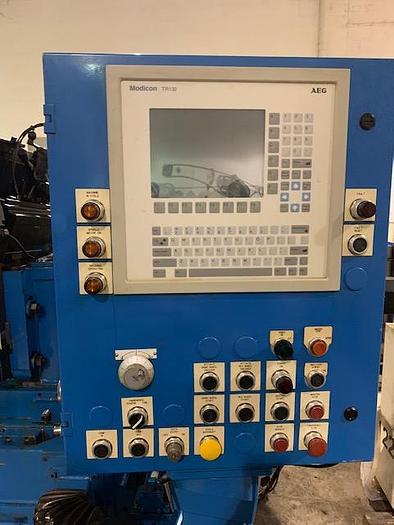

MODICON OPERATORS CONTROL INTERFACE

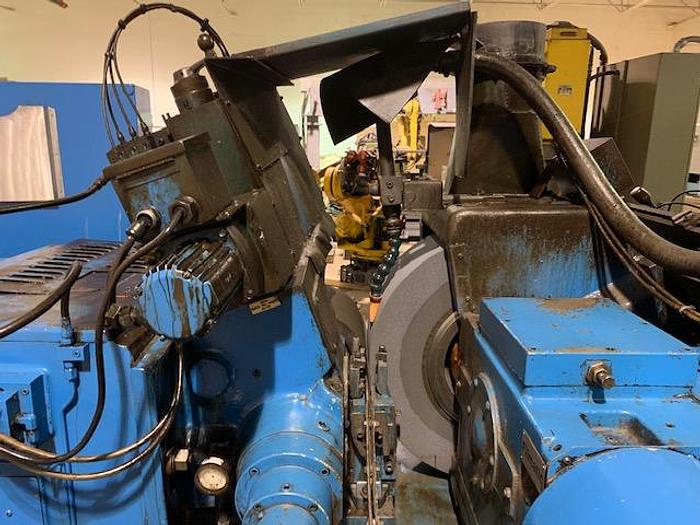

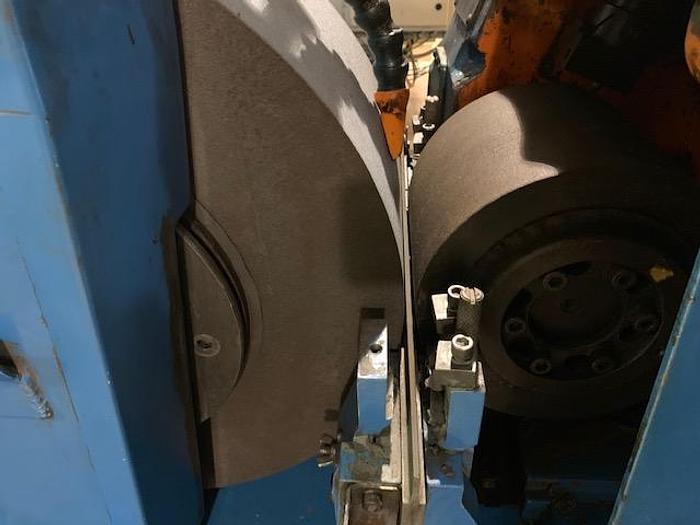

CURRENTLY RUNNING 24" GRINDING WHEEL
SET UP FOR THROUGH FEED OPERATION

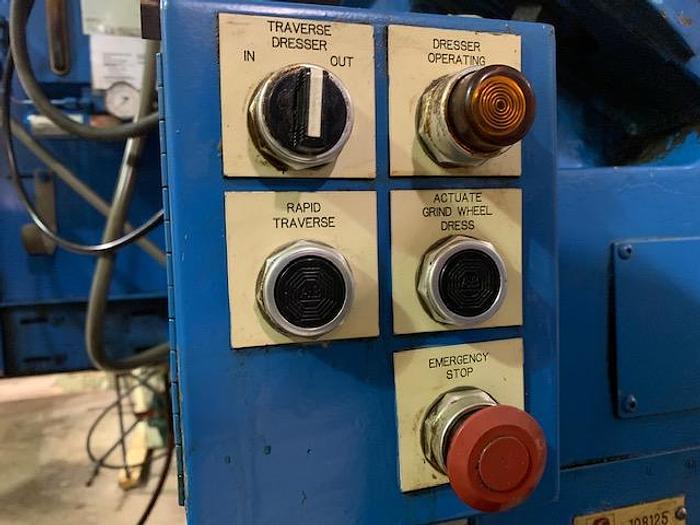

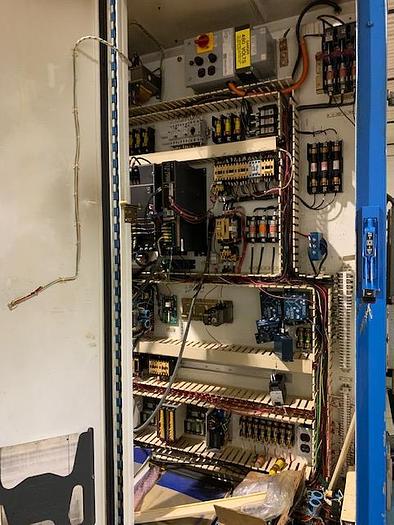

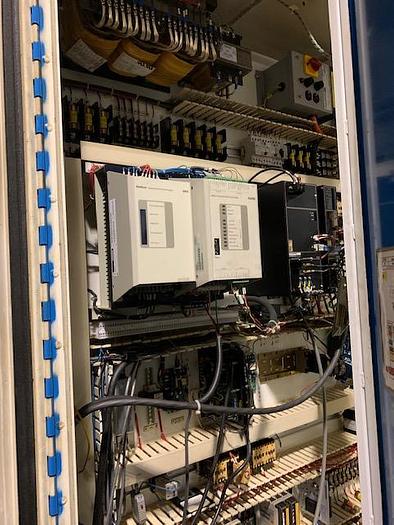

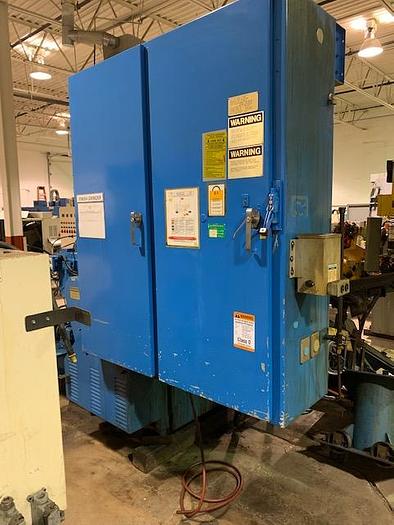

JIC PANEL AND CONTROLS

Specifications

ManufacturerCINCINNATI
Model220-8 CENTERLESS GRINDER
ConditionUsed

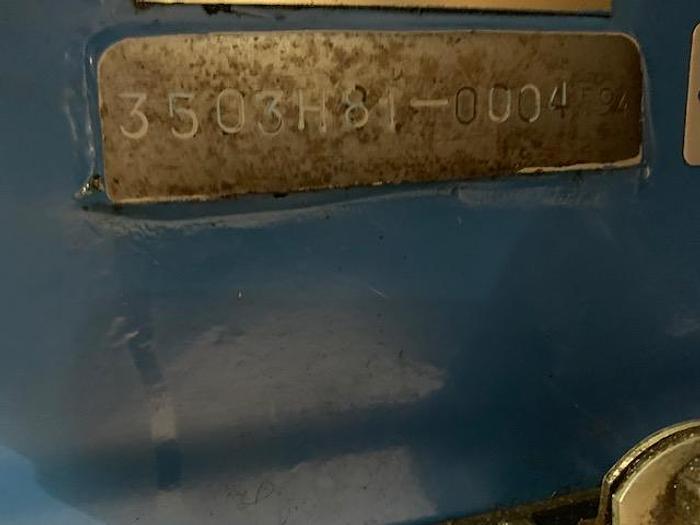

Serial Number3503H810004
Stock Number103639
