HARDINGE BRIDGEPORT XR760 VMC VERTICAL MACHINING CENTER WITH FANUC 18-iM CONTROL

HARDINGE BRIDGEPORT XR760 VMC VERTICAL MACHINING CENTER WITH FANUC 18-iM CONTROL

Contact us for price

Location:Imlay City, MI

orCall 1-231-526-7135 fax

Description

1-USED HARDINGE BRIDGPORT MODEL XR760 VMC PRODUCTION CENTER

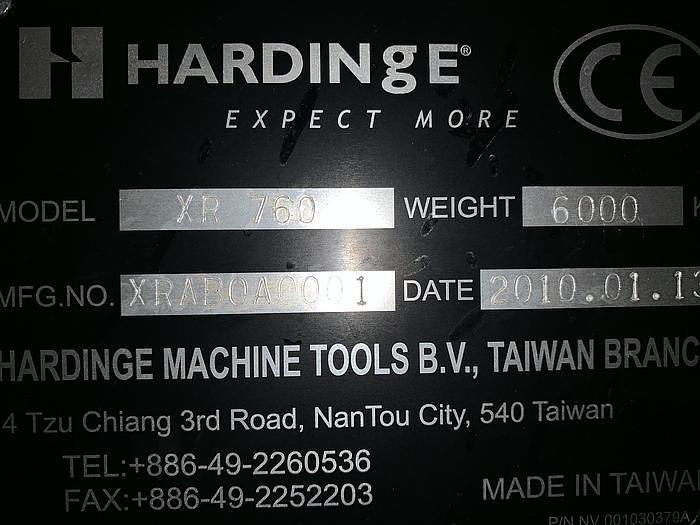

MACHINE SERIAL NUMBER XRAB0A0001

DATE OF MFG. NOV. 2010

STK# 104077

==============================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

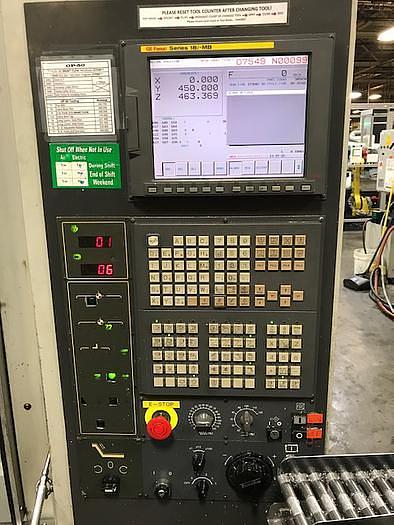

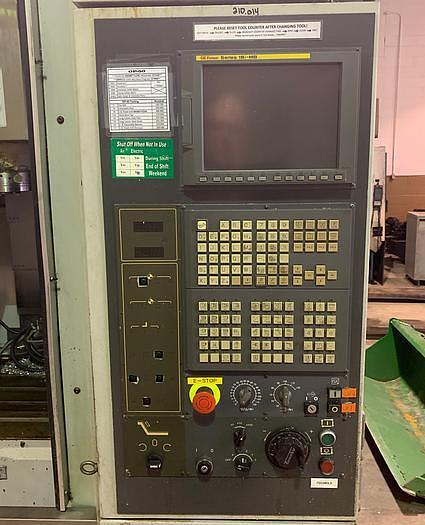

Control Fanuc 18i-M

X Axis Travel 30”

Y Axis Travel 24”

Z Axis Travel 24”

Table Size 35” x 23.6"

Max. Table Load 2,000 Lbs.

Spindle To Table Surface 3.94” – 27.9”

Spindle Motor 25 HP

Spindle Speeds 12,000 RPM

Spindle Taper CT 40

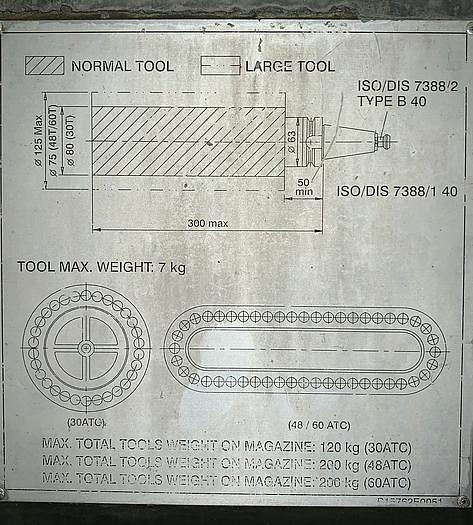

ATC 48 Tools Bidirectional Side Mount

Rapids (XY/Z) 1,692/ 1,417 IPM

Machine Dimensions (Approx.) 155” x 92” x 92”

Machine Weight (Approx.) 16,000 Lbs.


Equipped With:

Fanuc 18i-M CNC Control

12,000 RPM BIG-PLUS Spindle

Chip Conveyor

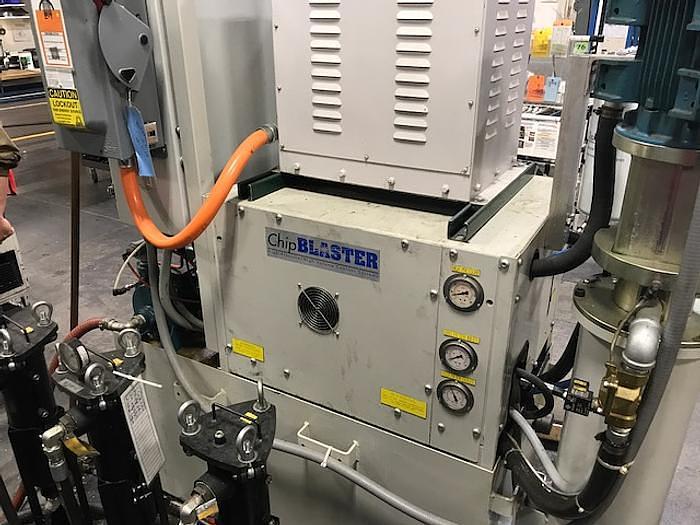

Chip Blaster For Through Spindle Coolant

Rigid Tap

External Hydraulic Unit

Mist Collector

3 Stage Coolant Filter


Specifications

ManufacturerHARDINGE BRIDGEPORT
ModelXR760 VMC VERTICAL MACHINING CENTER WITH FANUC 18-iM CONTROL
ConditionUsed
Stock Number104077
