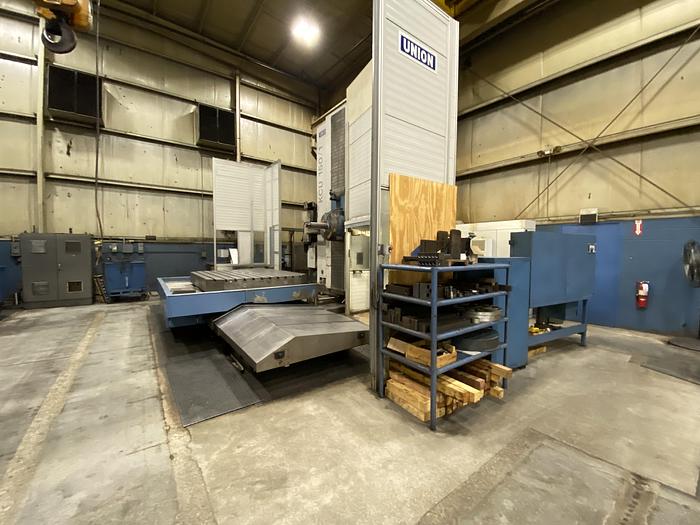

UNION MODEL KCU 150 PLANER TYPE HBM W/ CNC FACING HEAD
No longer available
UNION MODEL KCU 150 PLANER TYPE HBM W/ CNC FACING HEAD
Description
UNION MODEL KCU 150 PLANER TYPE HBM W/ CNC FACING HEAD
YEAR 2008 (INSTALLED NEW IN 2010)
STOCK# 103926
SPECIFICATIONS:
===================================================
Control....................................................Siemens 840D
X axis travel.............................................3200mm (126")
Y axis travel.............................................3000mm (118")
Z axis travel.............................................1500mm (59")
W axis travel (Spindle bar)........................700mm (30")
U axis travel (Facing slide)........................200mm (8")
B axis travel (Rotary table) / Inc................360 degrees (.001)
Rotary table size......................................79 x 98"
Rotary table load capacity........................44000 lbs
Spindle bar size / tool flange.....................6" Cat 50
Spindle speed..........................................3000 rpm
Spindle torque / power.............................1610 ft-lbs/ 62 hp
Rapid traverse rates (X, Y & Z)................590 ipm
Automatic tool changer capacity...............60 tools
Machine Features & Options - Heidenhain Scale Feedback / Roller Guide axes bearings / Machine guarding for chips, coolant and chip conveyor / Coolant thru spindle (300 PSI) with filtration system / Integral CNC Facing head with "pass thru" spindle / Facing head range up to 48" diameter / Facing head speed range from 2.5 to 330 RPM / Complete documentation
Specifications
Manufacturer | UNION |
Model | MODEL KCU 150 PLANER TYPE HBM W/ CNC FACING HEAD |
Condition | Used |
Stock Number | 103926 |
