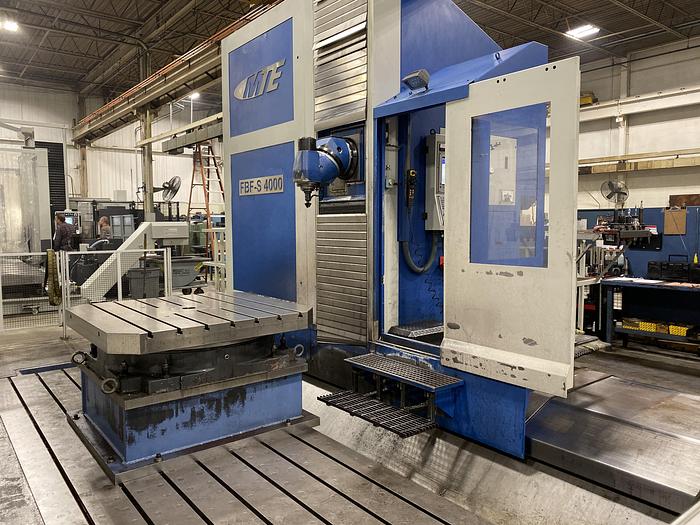

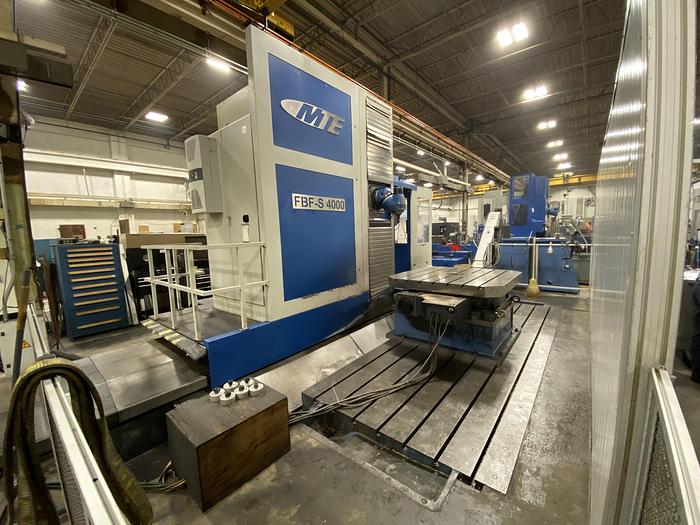

2011 MTE MODEL FBF-S 4000 CNC TRAVELING COLUMN UNIVERSAL MACHINING CENTER

2011 MTE MODEL FBF-S 4000 CNC TRAVELING COLUMN UNIVERSAL MACHINING CENTER

Contact us for price

orCall 1-231-526-7135 fax

Description

MTE MODEL FBF-S 4000 CNC TRAVELING COLUMN UNIVERSAL MACHINING CENTER YEAR 2011 STOCK # 103927 SPECIFICATIONS: =============================================== Control....................................................Heidenhain iTNC530 X axis travel............................................4000mm (157") Y axis travel............................................1200mm (47") Z axis travel (Vertical)..............................2000mm (79") A axis travel............................................+/- 120 degree B axis travel............................................360 degree Fixed Table size......................................60" x 160" Spindle...................................................Cat 50 Spindle Speed........................................4000 rpm Spindle Torque / Power...........................1060 ft-lbs/50 hp Rapid Traverse rates (X, Y & Z)...............590 ipm Machine Features & Options - Heidenhain Scale Feedback / Roller Guide axes bearings / Operator cabin with controls / Coolant thru spindle (300 PSI) with filtration system / CNC Universal head with 2.5 degree resolution / Interface for rotary table / Complete documentation

Specifications

ManufacturerMTE
ModelMODEL FBF-S 4000 CNC TRAVELING COLUMN UNIVERSAL MACHINING CENTER
Year2011
ConditionUsed
Stock Number103927
