LINCOLN ELECTRIC/FANUC MIG WELDING CELL WITH ARC MATE 120iC & ARC MATE 120iC/12L R-30iB DUAL TRUNNION

LINCOLN ELECTRIC/FANUC MIG WELDING CELL WITH ARC MATE 120iC & ARC MATE 120iC/12L R-30iB DUAL TRUNNION

Contact us for price

Location:Imlay City, MI

orCall 1-231-526-7135 fax

Description

1-LINCOLN MIG WELDING CELL WITH:

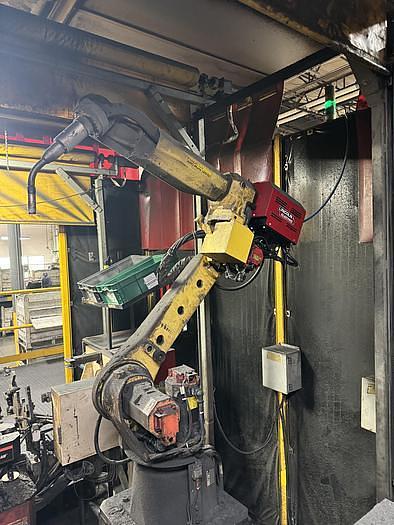

1-FANUC ARCMATE 120iC ROBOT SN F136186

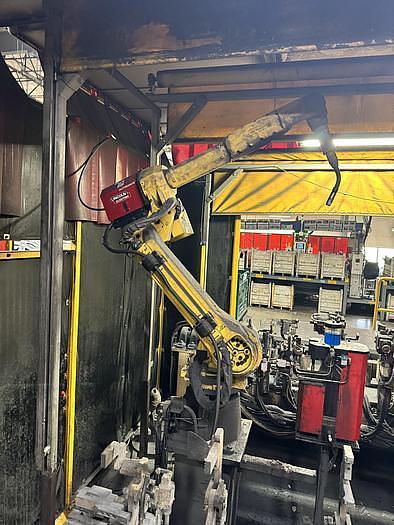

1-FANUC ARCMATE 120iC/12L SN F164320

2-LINCOLN WIRE FEEDERS ROBOT MOUNTED

2-LINCOLN R-350 MIG WELDING POWER SUPPLYS

2-LINCOLN TORCH TIP CLEANERS

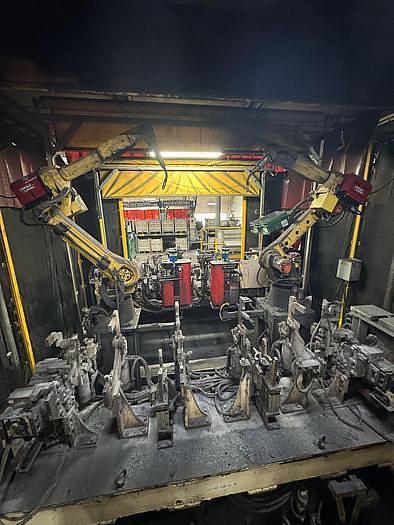

2-FANUC SERVO DRIVEN TRUNNIONS ONE FRONT AND ONE BACK OF THE ROBOTS

TRUNNION LENGTH TRUNNION WEIGHT CAPACITY

1-LINCOLN FUME EVACUATION HOOD

LIGHT CURTAINS

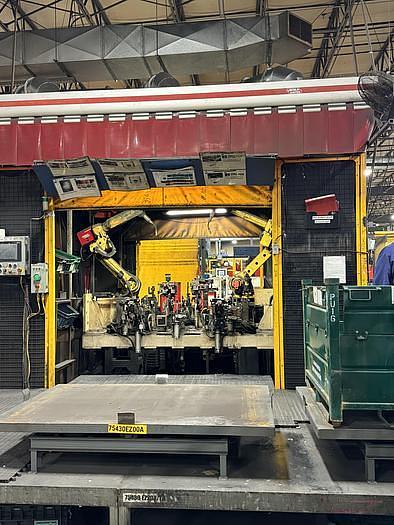

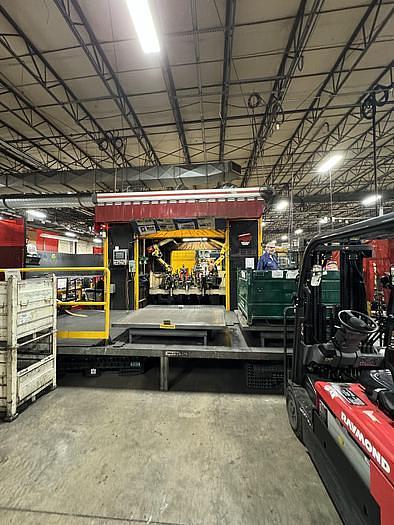

COMPLETE ENCLOSER WITH ROLL UP DOORS

DATE OF MFG. 2014

STK#104096

================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:


ARCMATE 120iC SPECIFICATIONS:

A FANUC ARC Mate 120iC/12L is a long reach robot, designed specifically for arc welding. The ARC Mate 120iC/12L has a long arm, allowing a reach up to 2009mm.It is the highest motion performance robot for its class, yet maintains a slim and compact design to help reach those tight spaces. Featuring a hollow wrist for the torch cable integration, unique wrist design, and 12kg payload, this robot produces at the utmost speed while providing easy management.


Robot Specifications:

Axes: 6

Payload: 12kg

H-Reach: 2009mm

Repeatability: ±0.08mm

Robot Mass: 250kg

Structure: Articulated

Mounting: Floor, Inverted, Angle


Robot Motion Speed:

J1 200 °/s (3.49 rad/s)

J2 175 °/s (3.05 rad/s)

J3 190 °/s (3.32 rad/s)

J4 430 °/s (7.5 rad/s)

J5 430 °/s (7.5 rad/s)

J6 630 °/s (11 rad/s)


Robot Motion Range:

J1 ±370°

J2 ±260°

J3 ±461°

J4 ±400°

J5 ±360°

J6 ±900°


Applications:

Arc Welding Robots

Welding Automation Robots


FANUC ARC MATE 120iC SPECIFICATIONS:

The ARC Mate 120iC FANUC robot can be controlled by a wide range of controllers such as the R-30iA, the R-30iB, the R-30iB Mate Cabinet, the R-30iB A-Cabinet, the R-30iB B-Cabinet, or the R-30iB iPendant touch. It also has a built-in collision detection system keeps it from running into external objects, endangering themselves or other equipment.


Robot Specifications:

Axes: 6

Payload: 20kg

H-Reach: 1811mm

Repeatability: ±0.08mm

Robot Mass: 250kg

Structure: Articulated

Mounting: Floor, Inverted, Angle


Robot Motion Speed:

J1 195 °/s (3.4 rad/s)

J2 175 °/s (3.05 rad/s)

J3 180 °/s (3.14 rad/s)

J4 360 °/s (6.28 rad/s)

J5 360 °/s (6.28 rad/s)

J6 550 °/s (9.6 rad/s)


Robot Motion Range:

J1 ±370°

J2 ±260°

J3 ±458°

J4 ±400°

J5 ±360°

J6 ±900°


Applications:

Mig Welding Robots

Laser Cutting Robots

Laser Welding Robots

Orbital Welding Robots

Plasma Cutting Robots

Plasma Welding Robots

Submerged Arc Welding Robots

MAG Welding Robots


Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.

Specifications

ManufacturerLINCOLN ELECTRIC/FANUC
ModelMIG WELDING CELL WITH ARC MATE 120iC & ARC MATE 120iC/12L R-30iB DUAL TRUNNION
ConditionUsed
Stock Number104096
