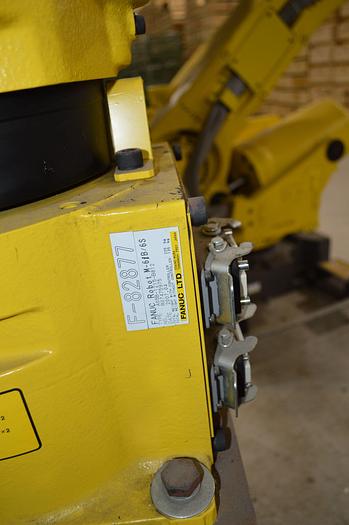

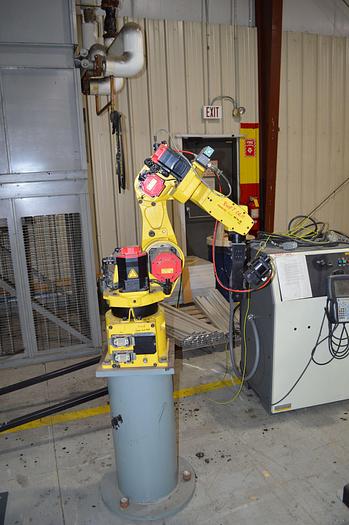

FANUC M-6iB/6S WITH R-J3iC CONTROLS, TEACH PENDANT & CABLES

FANUC M-6iB/6S WITH R-J3iC CONTROLS, TEACH PENDANT & CABLES

YEAR 2007

SN

STOCK# 103946

Robot Specifications

Axes: 6

Payload: 6.00kg

H-Reach: 951.00mm

Repeatability: ±0.0800mm

Robot Mass: 135.00kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed

J1 200 °/s (3.49 rad/s)

J2 200 °/s (3.49 rad/s)

J3 260 °/s (4.54 rad/s)

J4 400 °/s (6.98 rad/s)

J5 400 °/s (6.98 rad/s)

J6 720 °/s (12.57 rad/s)

Robot Motion Range

J1 ±170°

J2 ±125°

J3 ±155°

J4 ±190°

J5 ±140°

J6 ±360°

The FANUC M-6iB/6S is a short arm robot arm designed for compact, confined spaces. The M6iB/6S RJ3iB robot arm performs material handling tasks where parts sizes and work envelopes are less of an issue. A +/- 0.08 millimeter repeatability and a 6 kilogram maximum payload capacity allow the M 6iB/6S to perform precise, lightweight material handling.

ROBOT APPLICATIONS MATERIAL HANDLING

EQUIPPED WITH:

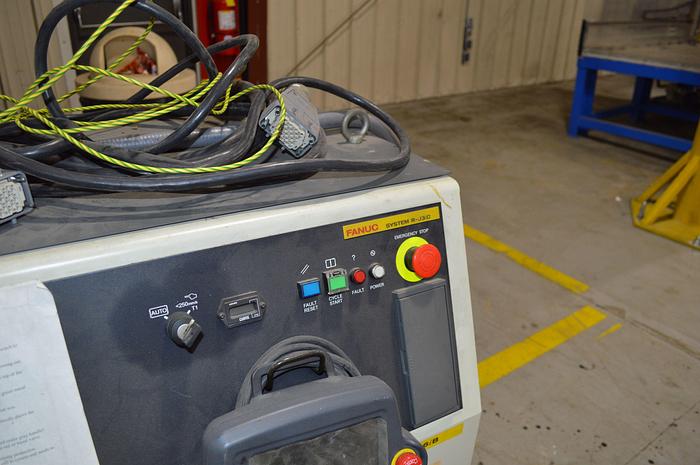

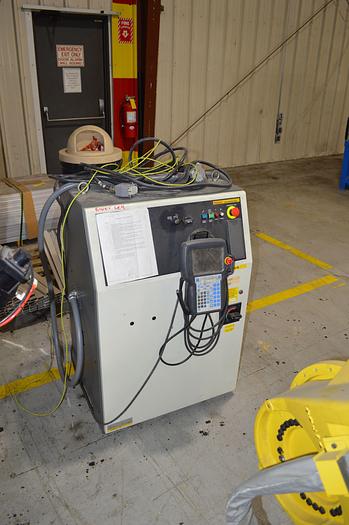

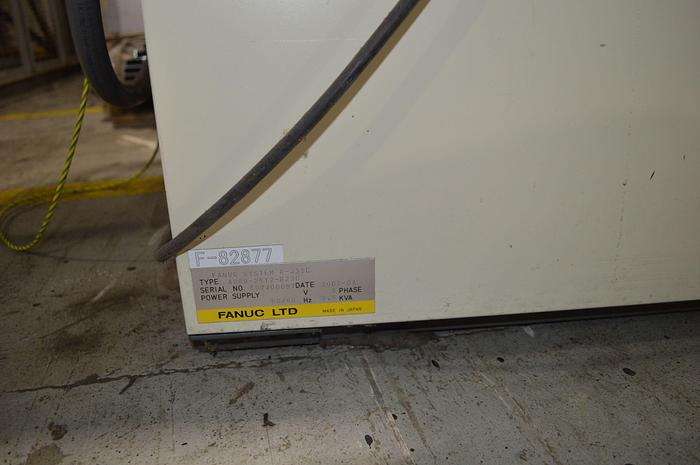

FANUC RJ3iC CONTROLLER (R30iA)

CABLES

TEACH PENDANT
