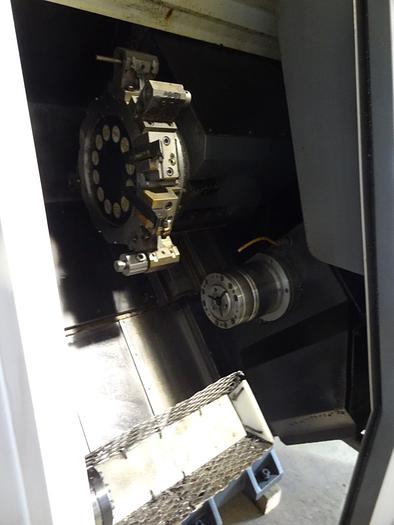

NAKAMURA TOME SC250 CNC LATHE W/SUB SPINDLE 2005
NAKAMURA TOME SC250 CNC LATHE W/SUB SPINDLE 2005
Contact us for price
Location:Harbor Springs, MI
or
Call 1-231-526-7135 fax
Description
Dodecagonal

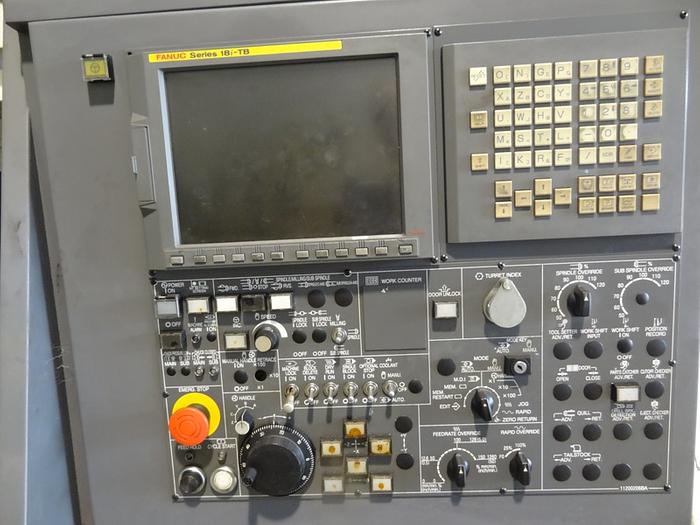

Fanuc 18i-TB Control

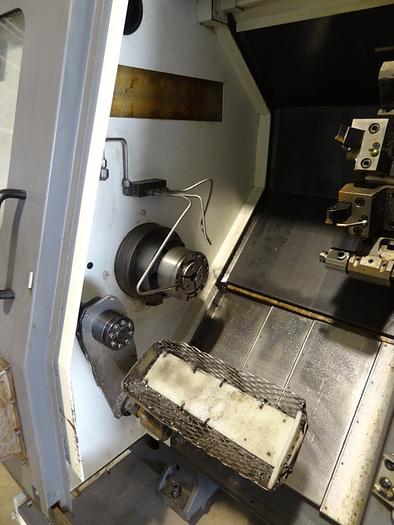

Sub Spindle Option
Bar Feed Interface
Specifications
| Manufacturer | NAKAMURA TOME |
| Model | SC250 |
| Year | 2005 |
| Condition | Used |
| Stock Number | 103625 |
| Weight | 8,377 Pounds |
| Chuck size | 8" (EQUIPPED COLLET NOSE AND COLLET) |
| Bar capacity | 2" |
| Slide travel x axis | 6.988" |
| Slide travel z axis | 19.685" |
| Turret tool capacity | 12 |
| Maxiumum turning length | 19.7" |
| Main spindle drive power | 20/25 HP |
| Maxiumum turning diameter | 11.8" |
| Main spindle maxiumum speed | 5,000 RPM |
| Slide travel y (sub spindle) axis | +/- 1.614" |
| Floor space (lenth, width, height) | 102.28" x 65.79" x 71.46" |
