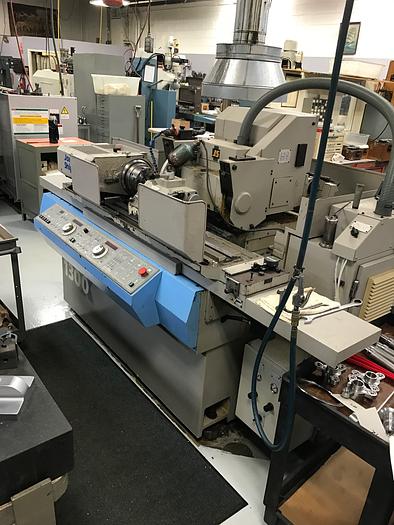

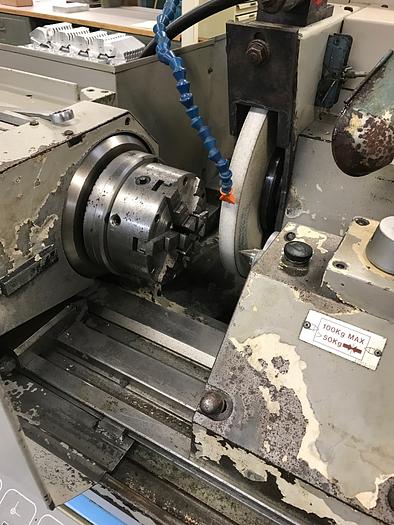

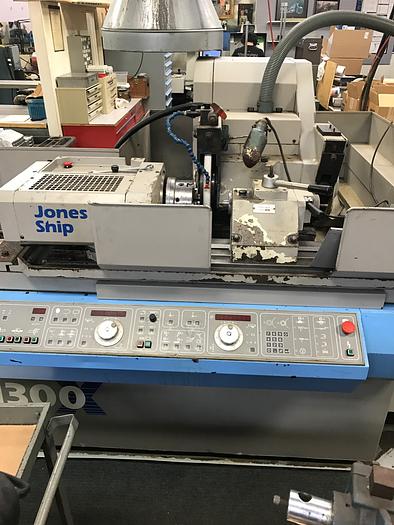

JONES & SHIPMAN MODEL 1300X MICRO-PROCESSOR

Contact us for price

Harbor Springs, MI

orCall 1-231-526-7135 fax

Description

PLC CONTROLLED UNIVERSAL GRINDER 10" x 27" Capacity 5.5 HP Spindle Speed 2400 RPM Grinding Wheel Diam. 14" Total Infeed, 9.6" Max. Programmable Diametral Infeed Rate, per Min., 3.9" Min. Programmable Increment 0.00005" HPG Increments 0.00005", 0.0005", 0.005" Swivel Range 109 Deg. CW or 45 Deg. CCW Left Hand Standard 14" x 2" x 5" Right Hand Standard 12" x 1" x 5" Max. Diameter Ground Using 14" Wheel 12" Max. Diameter Ground Using 12" Wheel 14" Spindle Speeds 1775, 2068, 2400rpm Motor Power 5.5HP Diameter Range (Standard Spindle) 0.75" - 1.5" Spindle Speeds, Standard 16500rpm Motor Power 3HP Maximum Traverse Speed, Per Minute 196.8" Minimum Programmable Increment 0.00005" HPG Increments 0.00005", 0.0005", 0.005" Maximum Length Between Centers 27" Table Swivel Angle 16 Deg. CW to 18 Deg. CCW Center Height, Standard 5" Maximum Workpiece Weight Between Centers 220lbs. Motor Power 1.5HP Speed Range, Continuously Variable 1 to 660rpm Swivel Range 15 Deg. CW to 90 Deg. CCW

Specifications

ManufacturerJONES & SHIPMAN
Model1300X MICRO-PROCESSOR
Year1996
ConditionUsed
Stock Number103562
