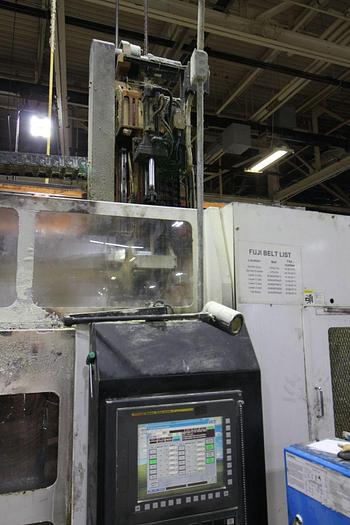

FUJI ANS-320TTS TWIN TURRET CNC LATHE WITH ROBOT LOAD/UNLOAD AND STOCKER TABLES

FUJI ANS-320TTS TWIN TURRET CNC LATHE WITH ROBOT LOAD/UNLOAD AND STOCKER TABLES

Contact us for price

Location:Michigan

orCall 1-231-526-7135 fax

Description

FUJI ANS-320TTS TWIN TURRET CNC LATHE WITH ROBOT LOAD/UNLOAD AND STOCKER TABLES

YEAR 2008

SN

STOCK# 103978


CATALOG SPECS:

================================================================================

MAX WORK DIAM......................................................................................7.1

LENGTH.......................................................................................................23.6

SPINDLE DIA...............................................................................................3.9"

SPINDLE NOSE..........................................................................................A2-6

SPINDLE BORE..........................................................................................2.2"

SPINDLE SPEED.......................................................................................3500 RPM

SPINDLE MOTOR.......................................................................................15/18 (20/25)

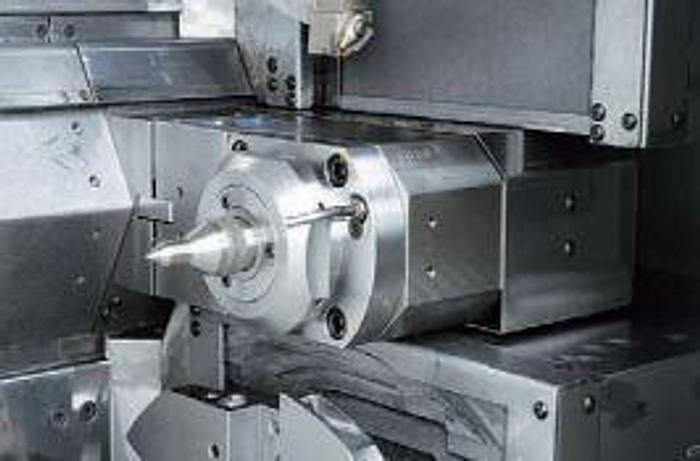

TAILSTOCK..................................................................................................MT4

TAILSTOCK STROKE................................................................................13.78"

QUILL DIAM.................................................................................................3.9

SLIDE STROKE

X AXIS...........................................................................................................3.35" UPPER & LOWER

Z AXIS...........................................................................................................28.94 UPPER & LOWER

RAPID TRAVERSE RATE

X AXIS...........................................................................................................945IMP UPPER & LOWER

Z AXIS............................................................................................................945IMP UPPER & LOWER

LEAST INPUT INCREMENT X & Z ........................................................0.0001 UPPER & LOWER

FEED MOTOR X & Z....................................................................................1.9 UPPER & LOWER

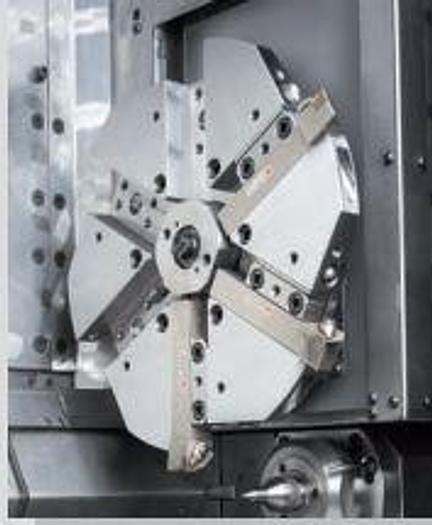

NUMBER OF TOOLS....................................................................................6 UPPER & LOWER

TOOL SIZE......................................................................................................1

CHUCK SIZE..................................................................................................8

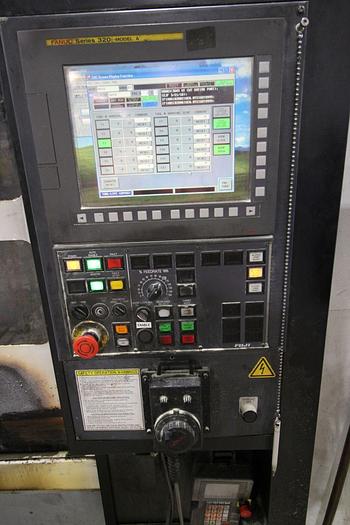

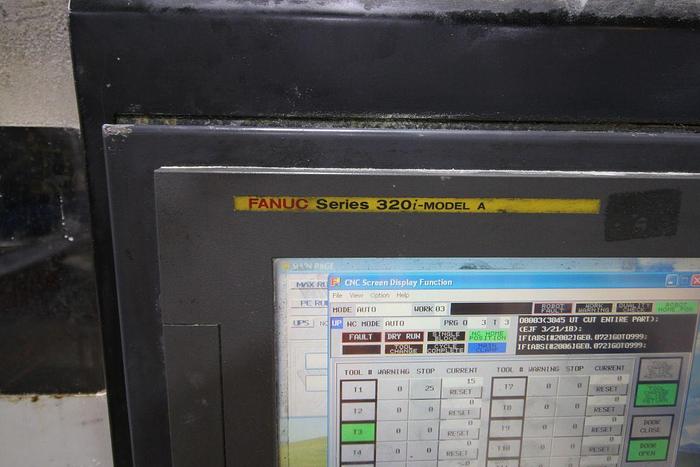

CNC CONTROL.............................................................................................FANUC 320i-A

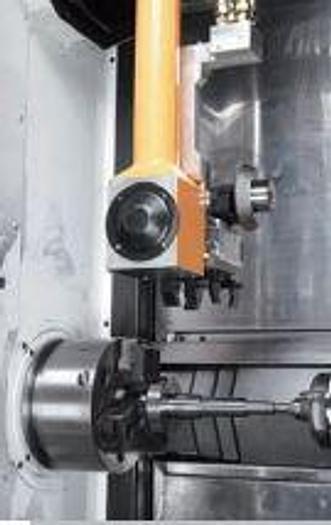

ROBOT TYPE.................................................................................................L672-B

ROBOT CAPACITY........................................................................................22+22

ROBOT CONTROLLER................................................................................MAX SP1

WEIGHT...........................................................................................................14,300

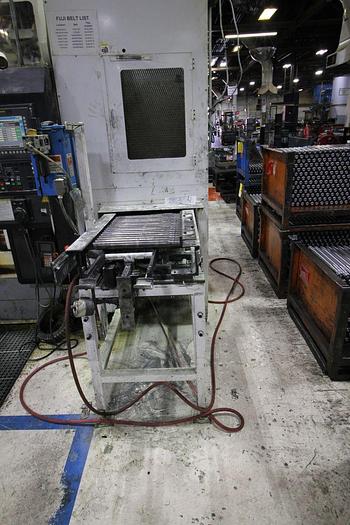

STOKER TABLES

CHIP CONVEYOR


WWW.HARBORMACHINERY.COM

231-526-9525

Specifications

ManufacturerFUJI
ModelANS-320TTS TWIN TURRET CNC LATHE WITH ROBOT LOAD/UNLOAD AND STOCKER TABLES
ConditionUsed
Stock Number103978
