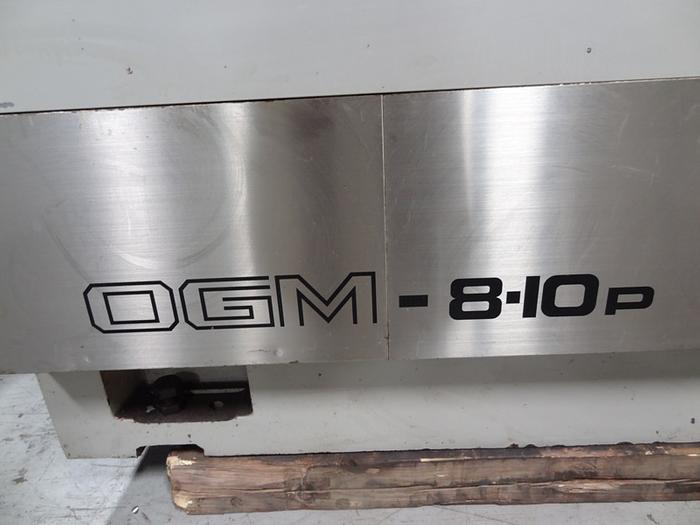

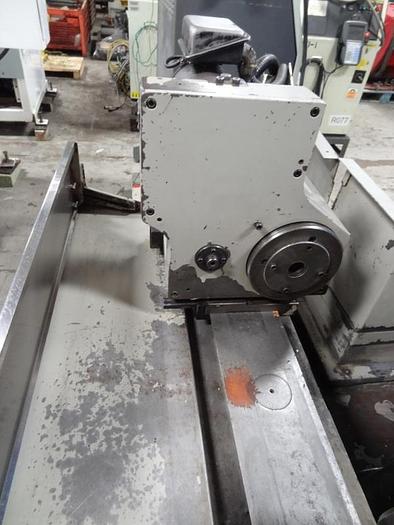

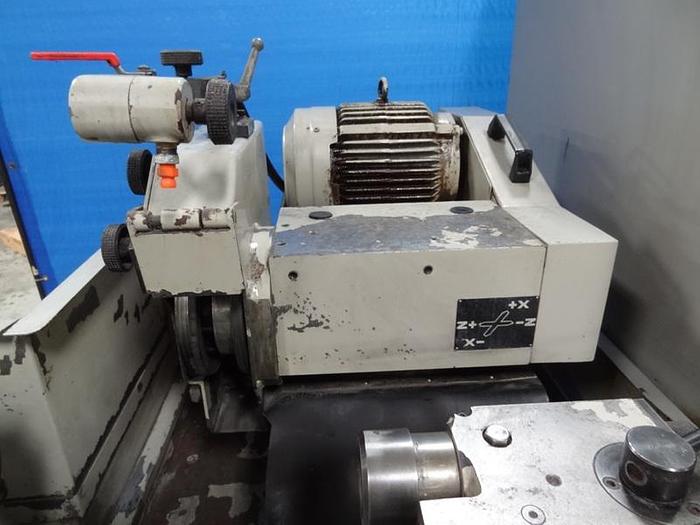

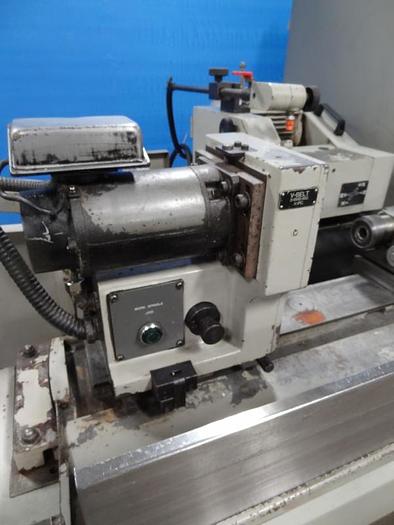

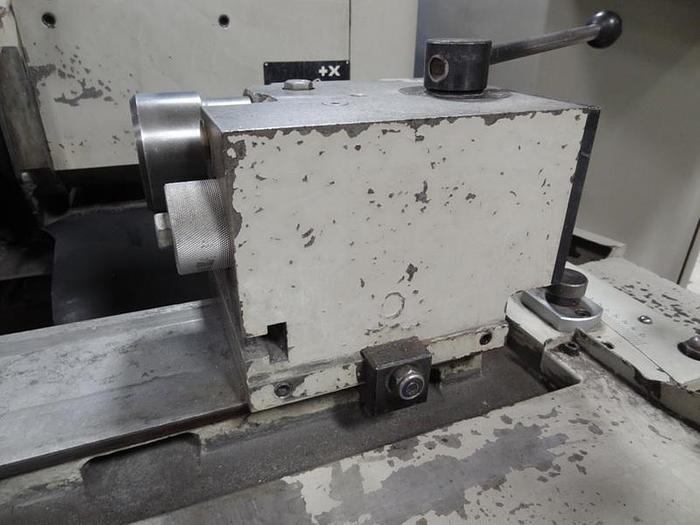

1994 OKAMOTO OGM 8-10P PLAIN PROGRAMMABLE CYLINDRICAL GRINDER

Contact us for price

Harbor Springs, MI

orCall 1-231-526-9525

Description

SWING OVER TABLE 8.6"
DISTANCE BETWEEN CENTERS 10"
MAXIMUM DIAMETER TO GROUND 8"
MAXIMUM WEIGHT BETWEEN CENTERS 45 LBS
SIZE (D X W X B) 14" X 2" X 5"
GRINDING WHEEL SPEED 1,880 RPM/2,240 RPM
TOTAL STROKE 8"
SWIVEL ANGLE NA
AUTOMATIC INFEED 0.00001" TO 0.002" IPR (19 SETTINGS)
CONTINOUS FEED RATE 0 TO 157 IPM
MANUAL PULSE RATE 0.00001", 0.0001", 0.001"
WHEELHEAD RAPID RETRACT 157 IPM
GRIND FEED OVERRIDE 0 TO 200%
MAXIMUM TABLE TRAVEL 15.6"
SWIVEL ANGLE +4 DEG TO -9 DEG
TRAVERSE SPEED 0 TO 157 IPM
MANUAL PULSE FEED 0.00001", 0.0001", 0.001"
FEEDRATE OVERRIDE 0 TO 200%
SPARK OUT 0 TO 10 SECONDS (PLUNGE GRIND) 0-10 CYCLES OF TABLE
(TRAVERSE GRIND)
CENTER MT. NO 3
SWIVEL ANGLE +30 DEG TO - 90 DEG
SPINDLE SPEED 15-650 RPM
CENTER MT. NO 3
SPINDLE STROKE 0.8"
GRINDING WHEEL SPINDLE 5 HP
WORKHEAD SPINDLE 0.5 HP
WHEELHEAD FEED 1.2 HP
TABLE FEED AND RAPID FEED 1.0 HP
POWER SUPPLY 13 KVA
7' WIDE X 5'4" DEEP X 5'4" TALL
APPROX WEIGHT 4,500 LBS
FANUC POWER MATE CONTROL
FANUC SERVO DRIVES

Specifications

ManufacturerOKAMOTO
ModelOGM 8-10
Year1994
ConditionUsed
Stock Number103633
