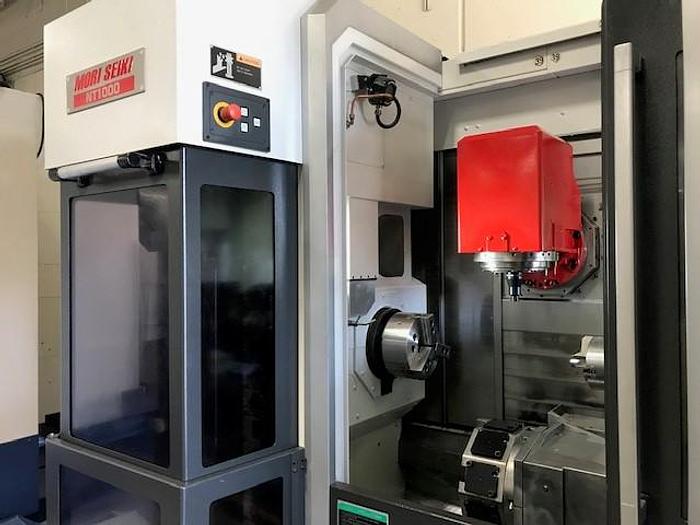

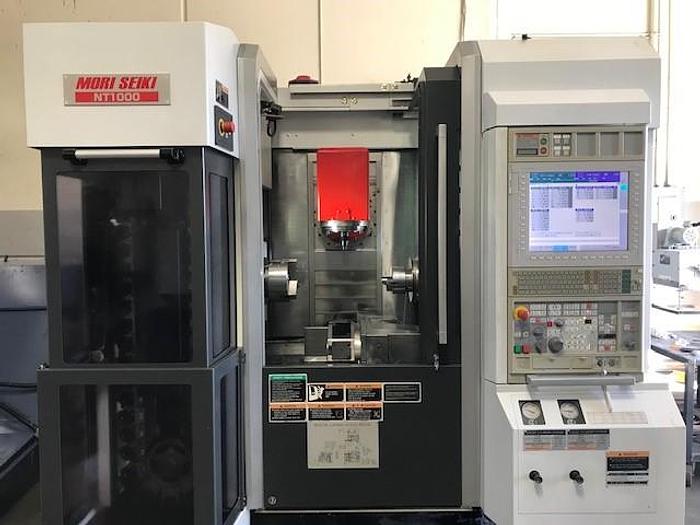

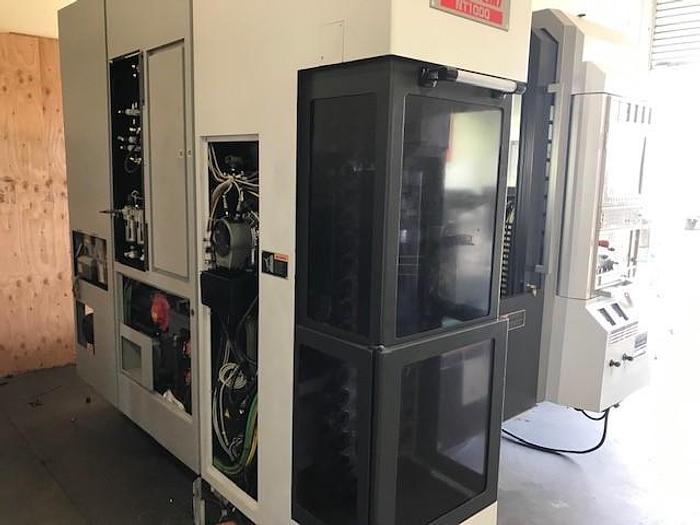

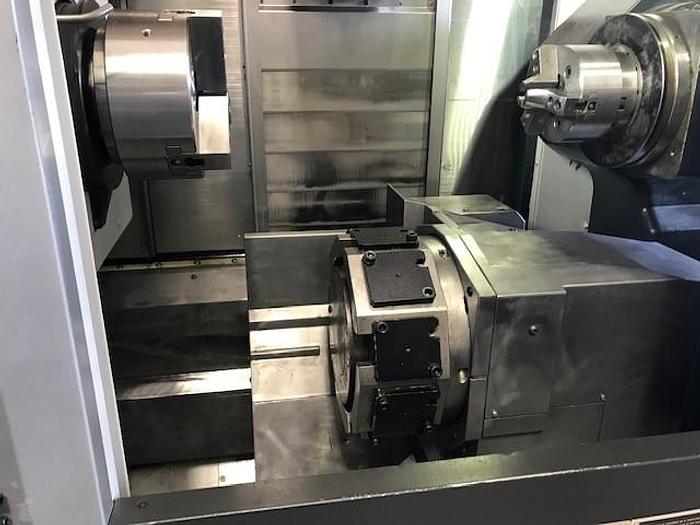

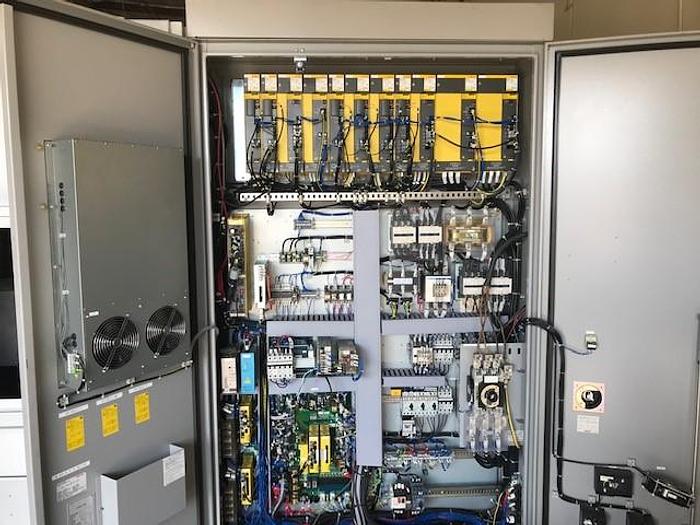

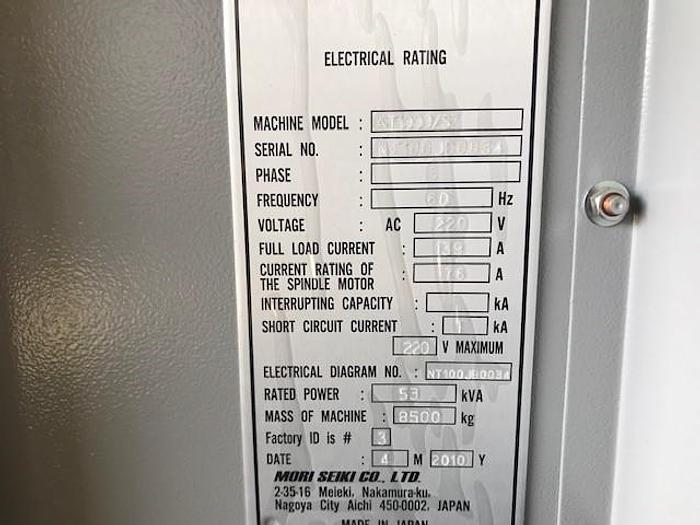

2010 MORI SEIKI NT-1000SZ Multi-Axis Turning Center

2010 MORI SEIKI NT-1000SZ Multi-Axis Turning Center

$149,500 (USD)

orCall 1-231-526-7135 fax

Description

MORI SEIKI NT-1000SZ MULTI-AXIS CNC TURNING CENTER

YEAR 2010

STOCK# 103990



SPECIFICATIONS:

.MAX WORKPIECE DIAMETER 14.57"

.SWING OVER CROSS SLIDE 14.57"

.MAXIMUM DISTANCE BETWEEN SPINDLE NOSES 35"

.BW-AXIS MAX. SWING 35.04"

.MAXIMUM TURNING DIAMETER TOOL SPINDLE 14.57"/TURRET 10.63"

.MAXIMUM TURNING LENGTH 16.69"

.BAR WORK CAPACITY 2.05"

TRAVEL:

.X1-AXIS TOOL SPINDLE 14.96"

.Y AXIS TOOL SPINDLE 4.13"

.Z1 AXIS TOOL SPINDLE 18.11" + 6.1" ATC TRAVEL

.B AXIS TOOL SPINDLE +/- 120 DEGREES

.X2 AXIS TURRET 2 6.10"

.Z2 AXIS TURRET 2 24.01"

.BW AXIS 0 DEGREES PROCESS/-25 DEGREES PROCESS/-90 DEGREES RETRACT/

        -180 DEGREES LS LOADER/-225 DEGREES WORKPIECE CONVEYOR

SPINDLE 1:

.SPINDLE SPEED 6,000 RPM

.NUMBER OF SPINDLE SPEED RANGES 2 STEP WOUND ROTOR

.SPINDLE NOSE JIS A2-5

.THROUGH SPINDLE HOLE DIAMETER 2.4"

.MINIMUM SPIDNLE INDEXING ANGLE 0.0001 DEGREES

.SPINDLE BEARING INSIDE DIAMTER 3.94"

.SPINDLE TORQUE 40%ED/30MIN/CONT N.M 223/172/158

SPINDLE 2:

.SPINDLE SPEED 5,270 RPM

.NUMBER OF SPINDLE SPEED RANGES 1

.SPINDLE NOSE TYPE 80g6 FLAT NOSE

.THROUGH SPINDLE HOLE 1.5"

.MINIMUM SPINDLE INDEXING ANGLE 0.0001 DEGREES

.SPINDLE BEARING INSIDE DIAMETER 2.76"

.SPINDLE TORQUE (15%ED/CONT) N.m 49/22

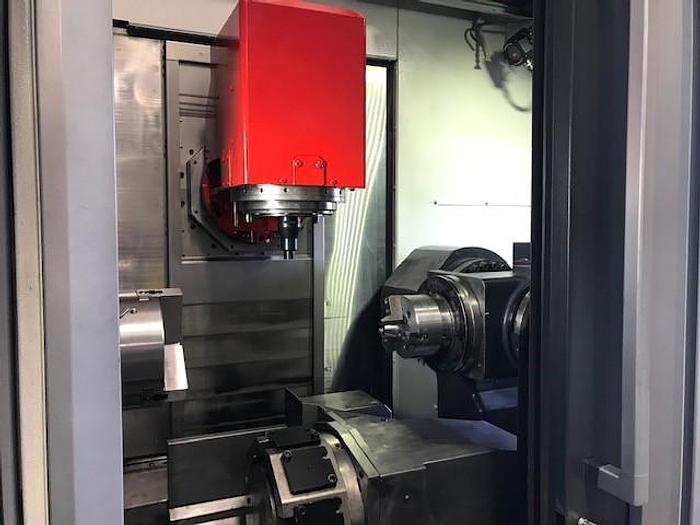

TOOL SPINDLE TURRET 1:

.NUMBER OF TOOLS ON SPINDLE HEAD 1

.MINIMUM B AXIS INDEXING ANGLE 0.0001 DEGREES

.TOOL SPINDLE SPEED 12,000 RPM

.TAPER HOLE OF TOOL SPINDLE C5/HSK-A50

.INSIDE DIAMETER OF TOOL SPINDLE BEARING 2.56"

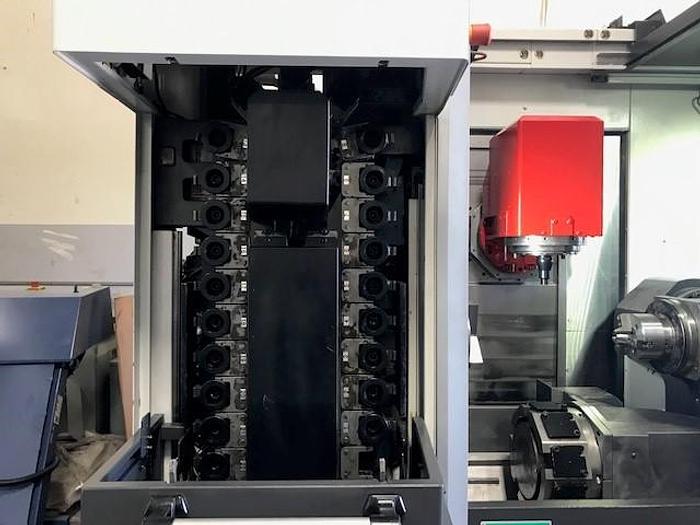

.TOOL MAGAZINE 38 TOOLS

.MAXIMUM TOOL DIAMETER WITHOUT ADJACENT TOOL 5.12"

.MAXIMUM TOOL LENGTH 9.84" WHEN TOOL DIAMETER LESS THAN 2.756"

                   -8.27" WHEN TOOL DIAMETER GREATER THAN 2.756"

.MAXIMUM TOOL MASS 11 LBS

.MAXIMUM TOOL MOVEMENT FROM GAGE TO LINE 3.9"

.SPINDLE TORQUE (15%ED/25%ED/CONT.) 49/37/22 N.m

.TOOL-SPINDLE COUPLING INDEX ANGLE 7.5 DEGREES

TURRET 2:

.NUMBER OF TOOLS ON TURRET 10

.SQUARE SHANK HEIGHT OF SINGLE POINT TOOL .79"

.SHANK DIAMETER BORING BAR 1.26"

FEEDRATES:

.RAPID TRAVERSE RATE IN M/MIN

X 40

Y 40

Z 50

TURRET 2 X 2 30

Z2 30

SPINDLE 2 A 36

MIN-1 B 100 C 250

MOTORS:

.SPINDLE 1 DRIVE MOTOR (40%ED/30MIN/CONT.) HP 15/15/10

.SPINDLE 2 DRIVE MOTOR (25%ED/CONT.) HP 10/7.5

.TOOL-SPINDLE DRIVE MOTOR 25%ED/CONT.) HP 12/7.4

.COOLANT PUMP MOTOR HP 1.62

.COOLANT PUMP MOTOR THRU SPINDLE HIGH PRESSURE COOLANT HP 1.39

.COOLANT PUMP MOTOR SPINDLE 1 HP 1.39

.COOLANT PUMP MOTOR TURRET 2 HP 1.39

.COOLANT PUMP MOTOR COOLING UNIT HP .7

TANK CAPACITIES:

.COOLANT TANK 79.2 GALLONS

.LUBRICANT TANK CAPACITY (OIL AIR/SHAFT LUBRICANT) .528/1.11 GALLONS

.SPINDLE OIL COOLER TANK CAPACITY 5.28 GALLONS

.HYDRAULIC UNIT TANK CAPACITY 5.28 GALLONS

.COOLANT COOLING TANK CAPACITY 50.69 GALLONS

.HIGH PRESSURE COOLANT TANK CAPACITY 35.11 GALLONS

MACHINE SIZE:

.94.48" TALL

.REQUIRED FLOOR SPACE 95.47" X 106.5"

.MACHINE WIEGHT WITHOUT UNLOADER 18,700 LBS


EQUIPPED WITH:

8” CHUCK ON MAIN SPINDLE

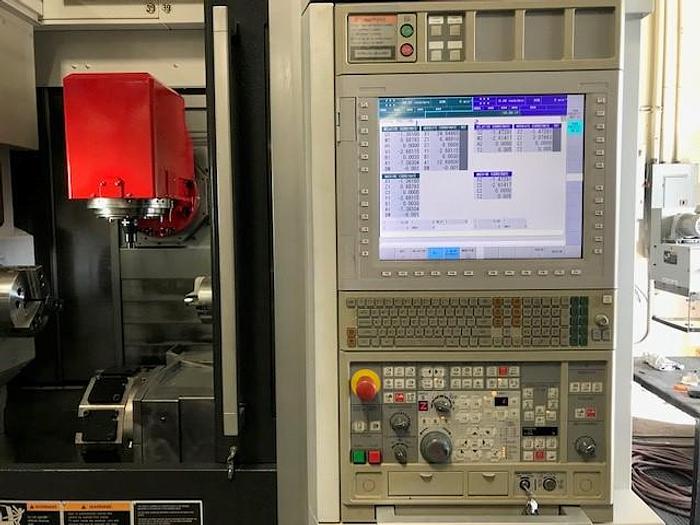

FANUC CONTROL

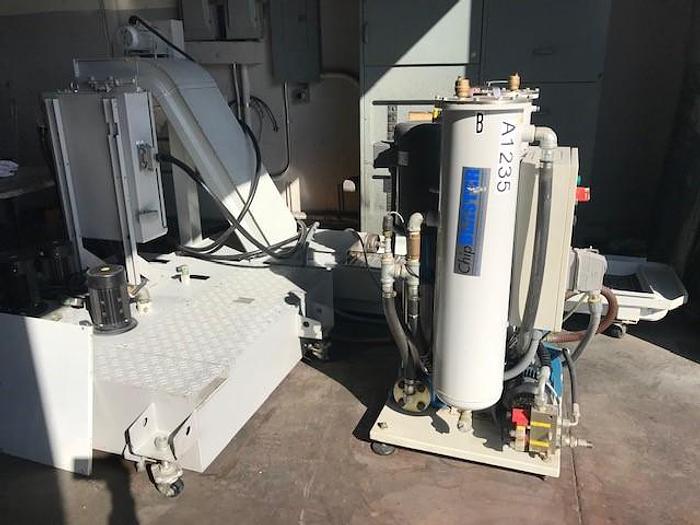

CHIP CONVEYOR

HIGH PRESSURE COOLANT UNIT

ALL AVAILABLE MANUALS


WWW.HABRORMACHINERY.COM

231-526-9525

Specifications

ManufacturerMORI SEIKI
ModelNT-1000SZ Multi-Axis Turning Center
Year2010
ConditionUsed
Stock Number103990
