2015 GENESIS/FANUC DUAL FANUC ROBOT, DUAL TRUNION MIG WELDING CELL WITH FULL ENCLOSURE, VERY LOW HOURS

GENESIS/FANUC DUAL FANUC ROBOT 100iC WITH R30iB CONTROLS, DUAL TRUNION MIG WELDING CELL WITH FULL ENCLOSURE, VERY LOW HOURS

YEAR 11/2015

STOCK # 104157

HOURS ROBOT 1 4787

ROBOT 2 5921

SPECITICATIONS:

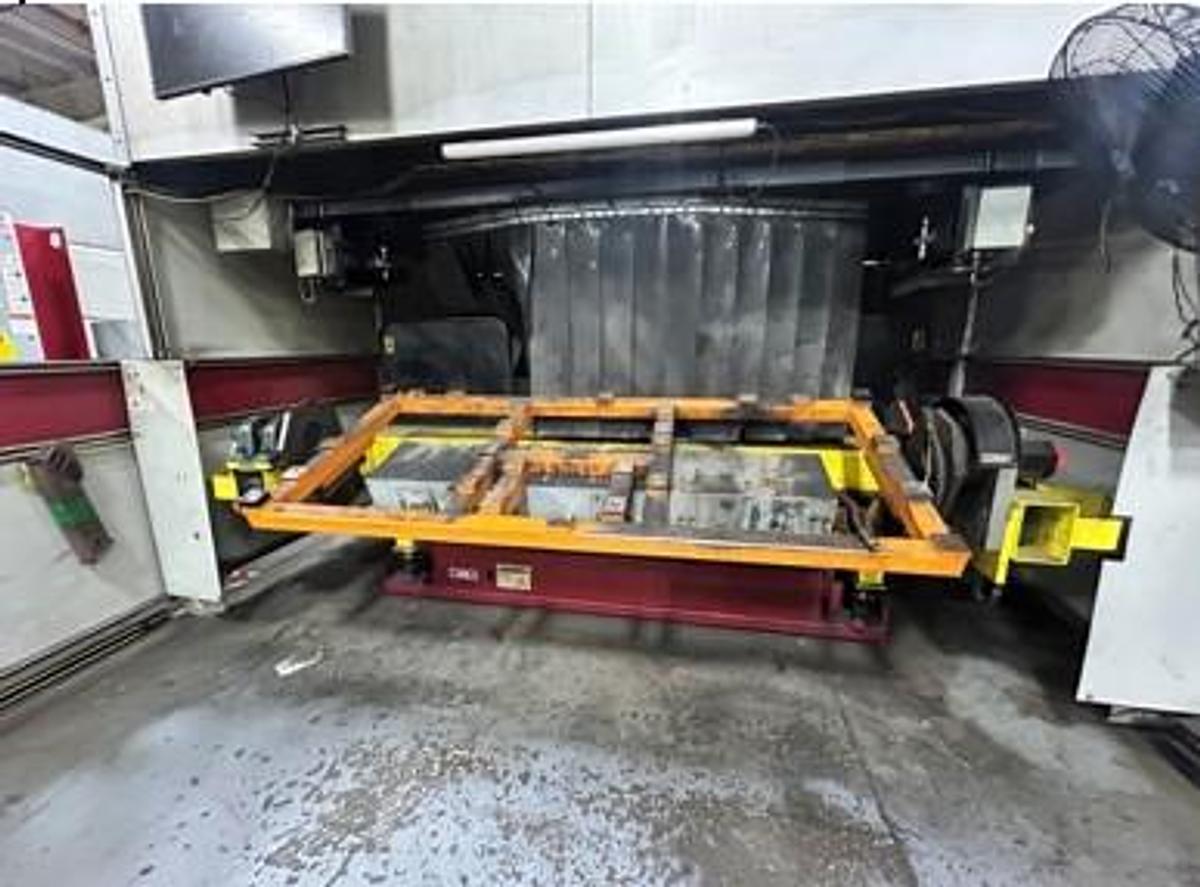

GENESIS DUAL TRUNION SYSTEM

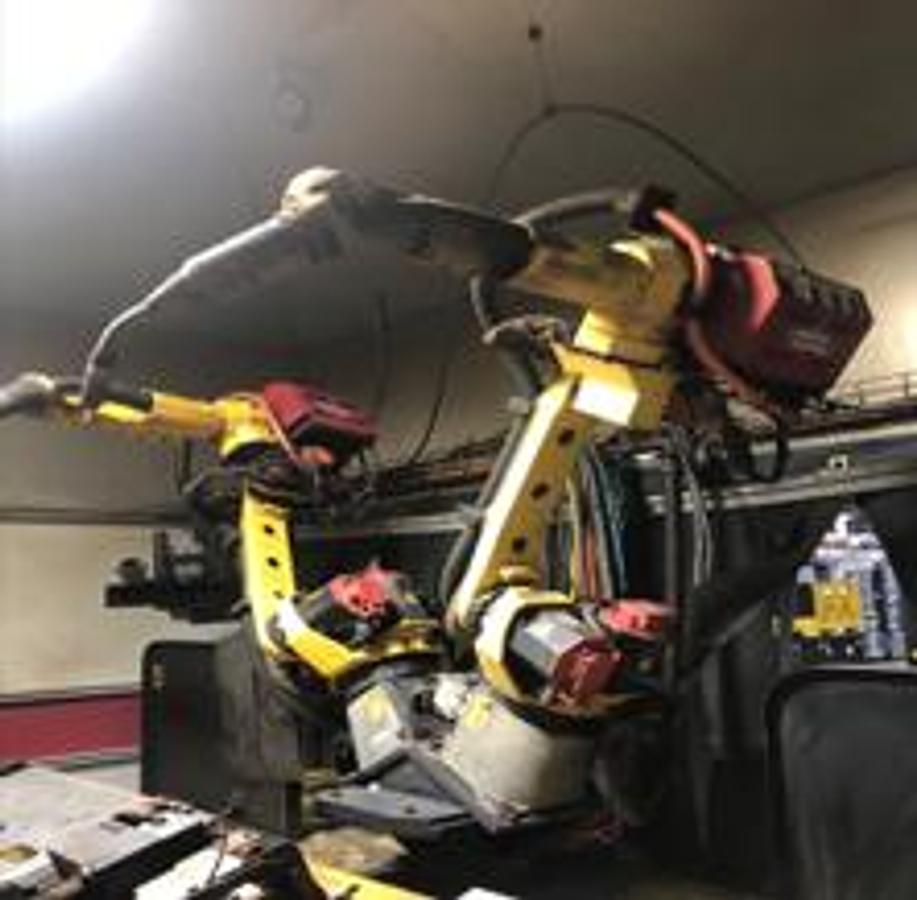

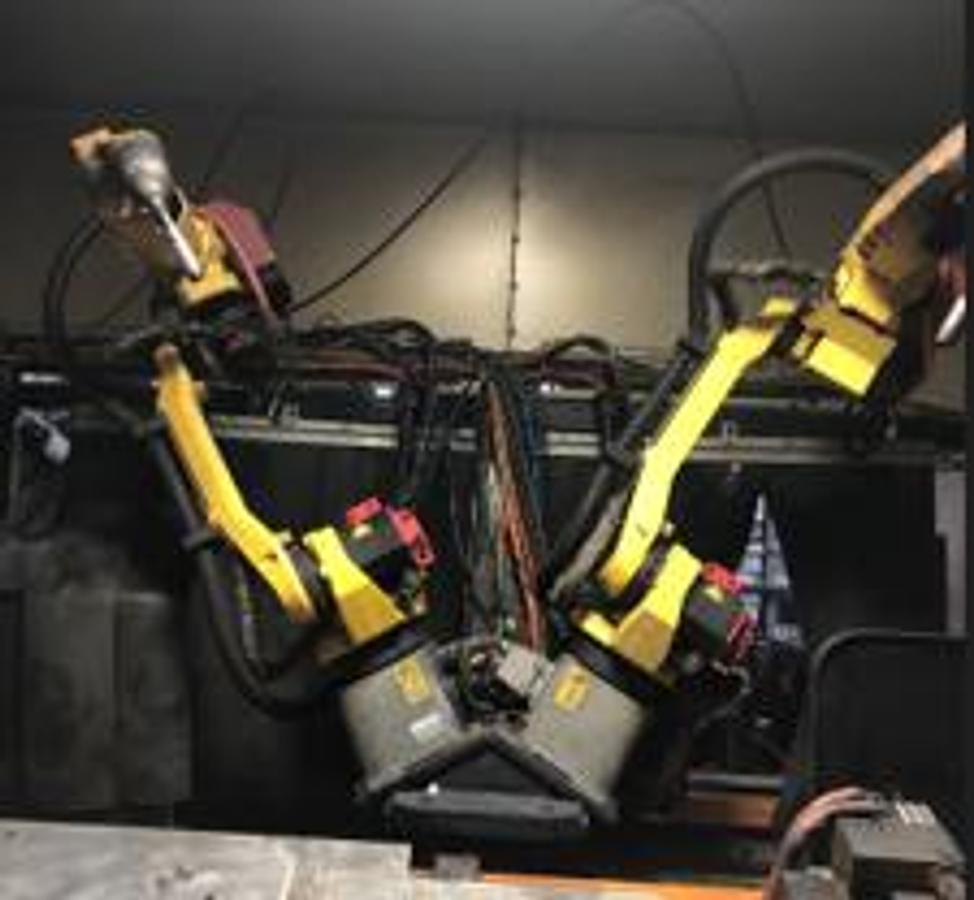

2 FANUC 100IC ROBOTS

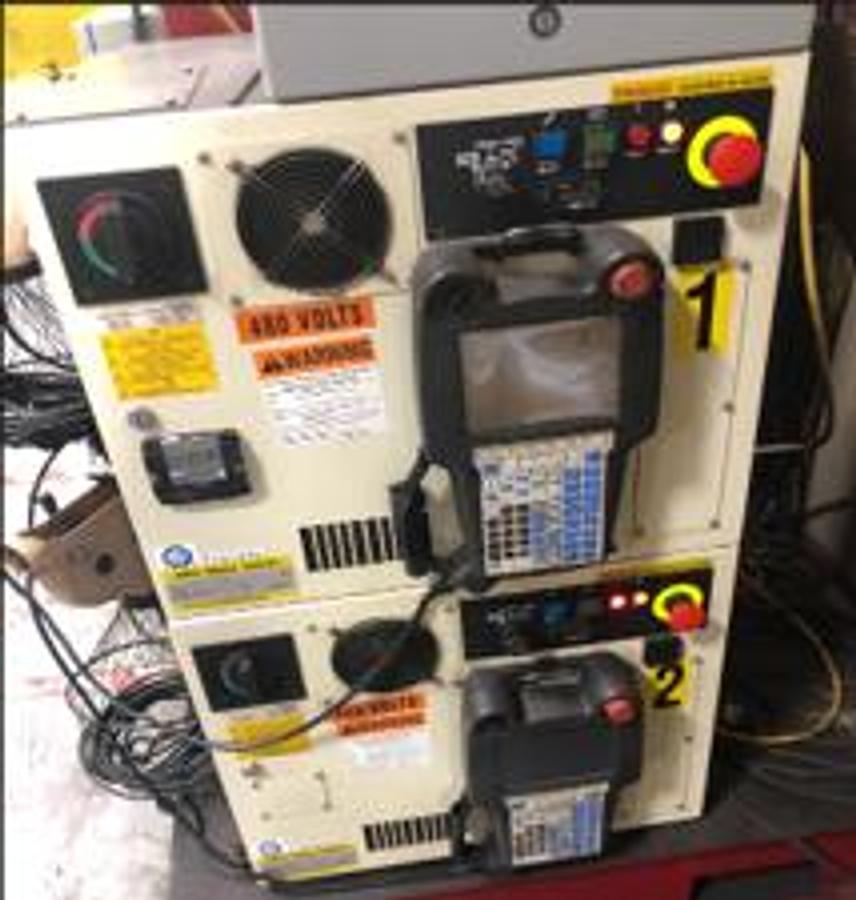

2 R-30iB cONTROLS WITH TEACH

LINCOLN WELING TIPS

FULL ENCLOSURE & CUTAINS

ROBOT SPECS:

Payload 10 kg

Reach 1420 mm

Axes 6

Repeatability 0.08 mm

Mass 130 kg

Structure Articulated

Mounting Floor, Inverted, Angle

MOTION SPEED:

J1 210 °/s (3.67 rad/s)

J2 190 °/s (3.32 rad/s)

J3 210 °/s (3.67 rad/s)

J4 400 °/s (6.98 rad/s)

J5 400 °/s (6.98 rad/s)

J6 600 °/s (10.47 rad/s)

RANGE OF MOTIONS:

J1 ±360°

J2 ±250°

J3 ±447°

J4 ±380°

J5 +380° - 280°

J6 +720° - 540°

TRUNION SPECS:
