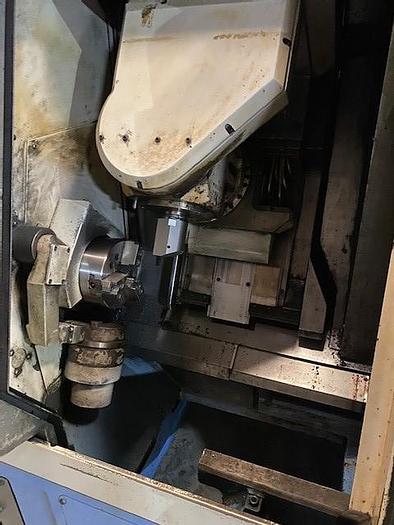

MAZAK INTEGREX 100Y MULTI AXIS CNC LATHE

MAZAK INTEGREX 100Y MULTI AXIS CNC LATHE

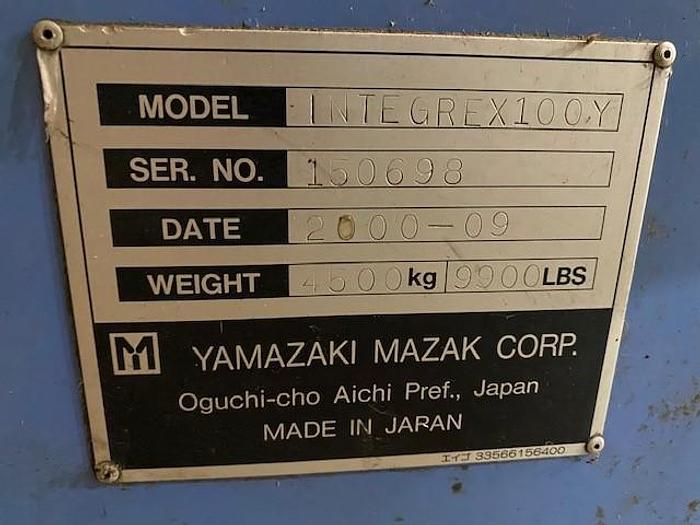

YEAR 09/2000

SN 150698

STOCK# 103997

SPECIFICATIONS:

===================================================================

SUJECT TO VERIFICATION

-----------------------------------------------------------------------------------------------------

LIVE TOOLING / MILLING

C-Axis: Equipped With

Y-Axis: Equipped With

Live Tooling / Milling: Equipped With

B-Axis: Equipped With

B-Axis Travel: 0.001 Degree Incr"

SPECIFICATIONS

X-Travel: 16"

Z-Travel: 21"

Distance Between Centers: 20"

Max Swing Over Bed: 19"

Max Turning / Cutting Length: 20"

SPINDLE

Bar Capacity: 1.65"

Chuck Size: 6"

Chuck Type: Hydraulic

Spindle Bore: 2"

Spindle Speed: 6,000 RPM

Spindle Motor: 10 HP

Spindle Nose: A2-5

SECOND SPINDLE

Total Spindles: 1

TURRET

Single Turret: Equipped With

Tool Positions: 40

Turret Max RPM: 6000 RPM

Turret Options: KM-63 Tooling Type

CONTROL

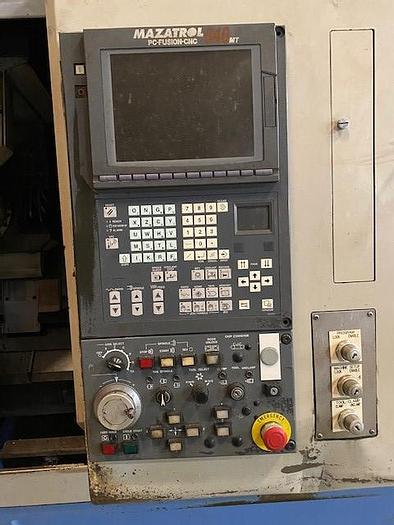

Control Make/Model: Fusion 640MT Control

Control Options: Color Monitor;Floppy Drive;RS-232;EIA/ISO Code Input Function

Additional Control Options: 10.4" Color TFT Display
