2018 STARRAG BUMOTEC S191 CNC MACHINING CENTER

2018 STARRAG BUMOTEC S191 CNC MACHINING CENTER

Contact us for price

Coffeyville, KS

orCall 1-231-526-7135 fax

Description

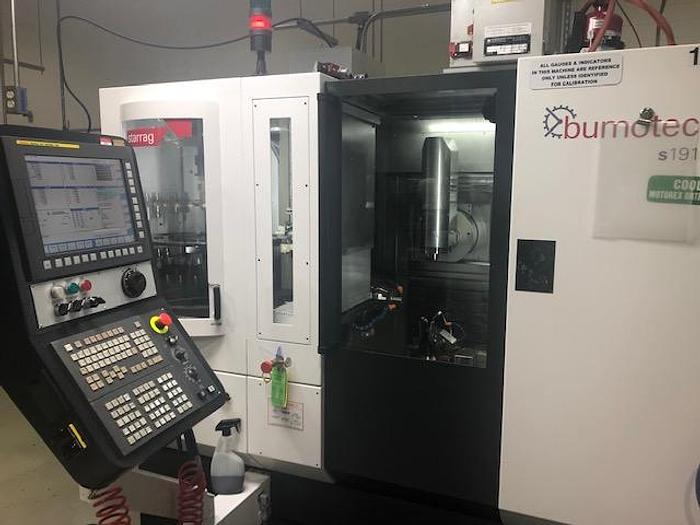

STARRAG BUMOTEC S191 CNC MACHINING CENTER

YEAR 2018

STOCK # 104002





SPECIFICATIONS:

===================================================================

SUBJECT TO VERIFICATION:

___________________________________________________________________

LIVE TOOLING / MILLING

C-Axis: Equipped With

B-Axis: Equipped With

B-Axis Travel: X-axis: 16.14”

Y-axis: 7.87”

Z-axis: 16.14”

"

SPINDLE

Bar Capacity: 1.96"

Spindle Speed: 6,000 RPM

SECOND SPINDLE

Sub-Spindle: Equipped With

Second Bar Capacity: 1.96"

Second Spindle Speed: 5500 RPM

TURRET

Tool Positions: 60

Live Milling Max RPM: 30,000 RPM

CONTROL

Control Make/Model: Fanuc 31iB5 CNC Control

OPTIONS

Additional Machine Specs: B-Axis Head

CAPTO C4

Full C-Axis : 72,000 Degrees

Both Spindles, Full Pass Through

50mm Bar Capacity Upgrade

Diamond Oil Distribution System

Mist Extractor

700mm Bar Pusher

Grinding Packaged installed

Single Part Clamping Device- OTTET

SK52 Bar Clamping Device

Coolant Types: Thru-Spindle Coolant

Chip Removal: Chip Conveyor

Probe Make/Model: Renishaw Dual Probing System - OMP-400


WWW.HARBORMACHINERY.COM



Specifications

ManufacturerSTARRAG BUMOTEC
ModelS191 CNC MACHINING CENTER
Year2018
ConditionUsed
Stock Number104002
C-AxisEquipped With
B-AxisEquipped With
