TEC WELD FANUC ROBOTIC DUAL TRUNION WELDING CELL WITH 2 FANUC ARCM
No longer available
TEC WELD FANUC ROBOTIC DUAL TRUNION WELDING CELL WITH 2 FANUC ARCM
Harbor Springs, MI
Description

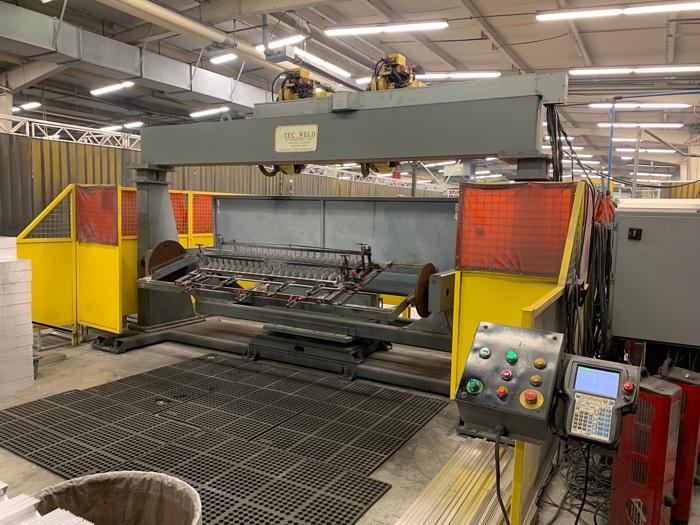

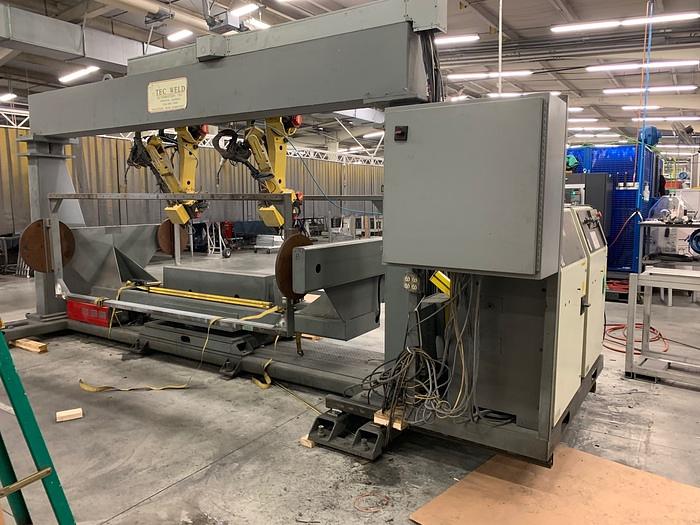

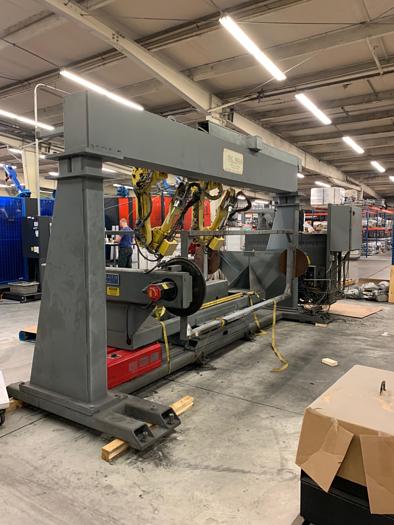

THIS IS A DUAL SERVO TRUNION CELL. ROBOTS ARE MOUNTED ON BEAM
ABOVE. THE LOAD UNLOAD TRUNIONS INDEX 180 DEGREES TO PRESENT
WORK TO THE ARCMATE WELDING ROBOTS.
LENGTH 120"
SWING 50"
(2) FANUC ARCMATE 120iB ROBOTS
Robot Motion Speed
J1 165 °/s (2.88 rad/s)
J2 165 °/s (2.88 rad/s)
J3 175 °/s (3.05 rad/s)
J4 350 °/s (6.11 rad/s)
J5 340 °/s (5.93 rad/s)
J6 520 °/s (9.08 rad/s)
Robot Motion Range
J1 ±170°
J2 +160° - 90°
J3 +290° - 170°
J4 ±200°
J5 ±140°
J6 ±450°
MIG Welding Robots
Oxyacetylene Welding Robots
Plasma Cutting Robots
Plasma Welding Robots
Submerged Arc Welding Robots
TIG Welding Robots
MAG Welding Robots
Welding Automation Robots
Arc Welding Robots
Suitable for high-speed welding and cutting processes, the FANUC ARC
Mate 120iB is a six-axis robotic arm that is servo-driven. The FANUC
120iB RJ3iB welding robot provides accurate and consistent path
performance based on its simple and reliable construction.
In addition to high-speed cutting and welding, the ARC Mate 120iB is
Specifications
Manufacturer | TEC WELD/FANUC |
Model | DUAL TRUNION |
Condition | Used |
Stock Number | 103751 |
Axes | 6 |
Payload | 20.00kg |
H-reach | 1667.00mm |
Repeatability | ±0.0800mm |
Robot mass | 220.00kg |
Structure | Articulated |
Mounting | Floor, Inverted, Angle |
