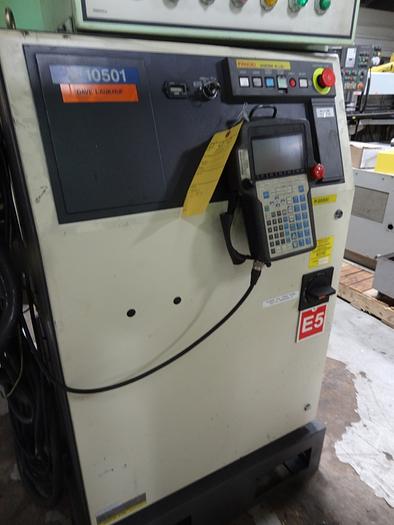

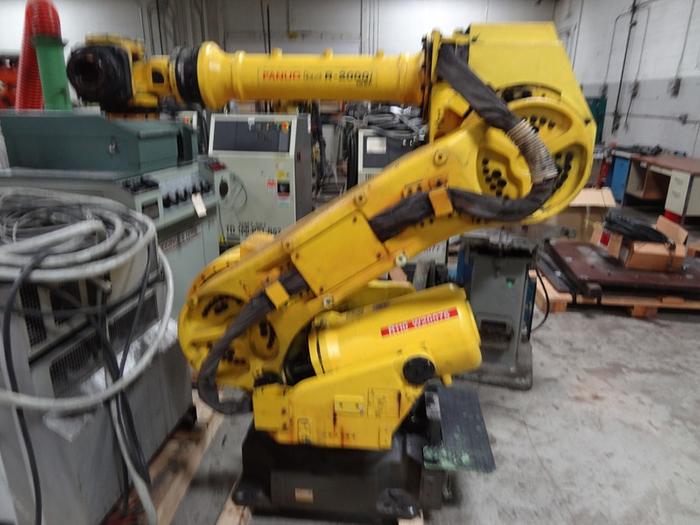

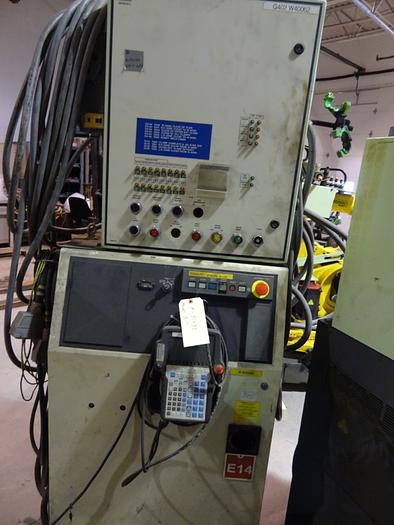

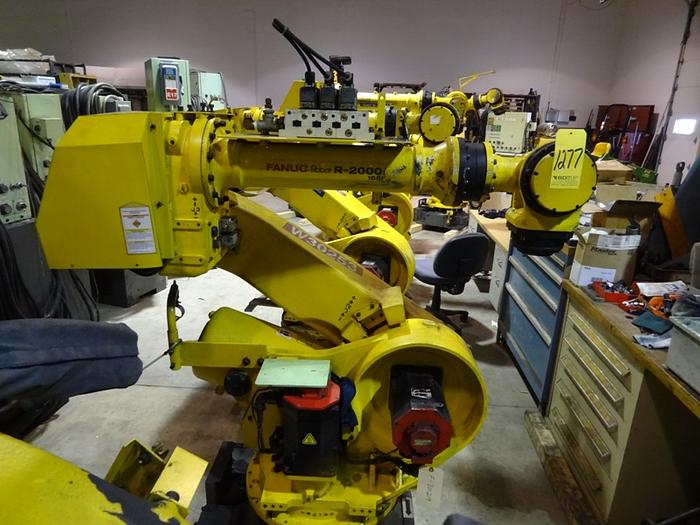

200- FANUC R2000i/165F ROBOT W/RJ3I MODEL B CONTROLLER

200- FANUC R2000i/165F ROBOT W/RJ3I MODEL B CONTROLLER

Contact us for price

Location:Harbor Springs, MI

orCall 1-231-526-7135 fax

Description

Robot Motion Speed J1 105 °/s (1.83 rad/s) J2 105 °/s (1.83 rad/s) J3 105 °/s (1.83 rad/s) J4 130 °/s (2.27 rad/s) J5 130 °/s (2.27 rad/s) J6 210 °/s (3.67 rad/s) Robot Motion Range J1 ±180° J2 +75° - 60° J3 +230° - 132° J4 ±360° J5 ±125° J6 ±360° ARM-MECHANICAL UNIT CONTROLLER RJ3i TEACH PENDANT EE CONNECTION Robot Applications Laser Welding Robots Spot Welding Robots Machine Tending Robots Material Handling Robots Cutting Robots Fiberglass Cutting Robots The FANUC R-2000iA/165F is the heavy-duty workhouse you want on your production floor! It is a floor-mounted, versatile robot arm that has high-performance motion to produce fast cycle times and increase your throughput. The R-2000iA/165F has the capability of handling a variety of applications, including arc welding, part transfer, material removal, dispensing, assembly, and spot welding. This level of versatility will improve a company's ability to put the robot to work and get a high rate of ROI.

Specifications

ManufacturerFANUC
ModelR2000i/165F
Year2001
ConditionUsed
Stock Number103650
Axes6
H-reach2650.00mm
Payload165.00kg
MountingFloor
StructureArticulated
Robot mass1210.00kg
Repeatability±0.2000mm
