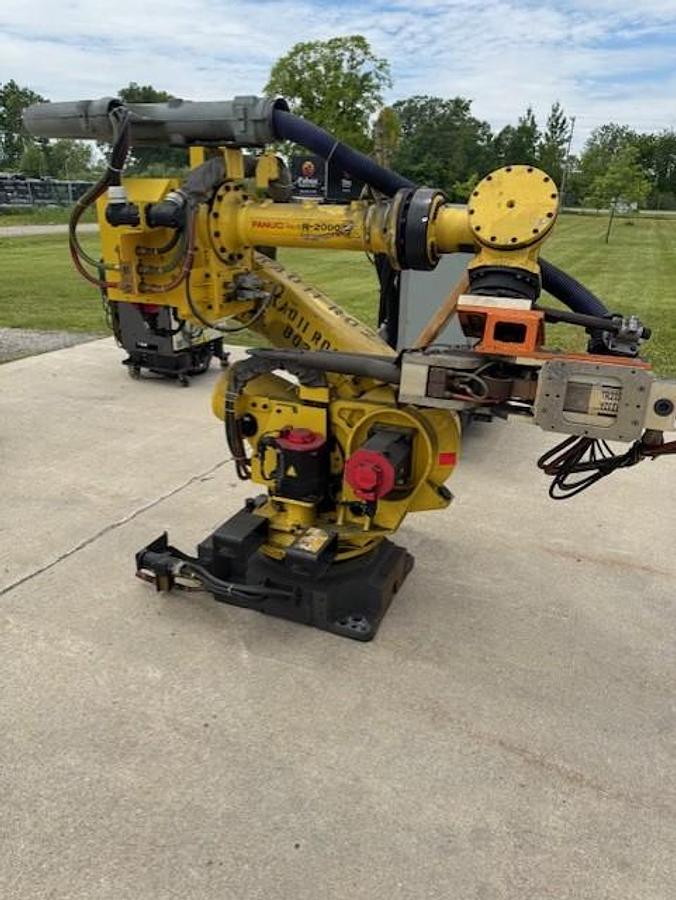

2-Fanuc R-2000IB/210f's with 30iA Controls

2-Fanuc R-2000IB/210f's with 30iA Controls

Stock # 103518

Years 2007

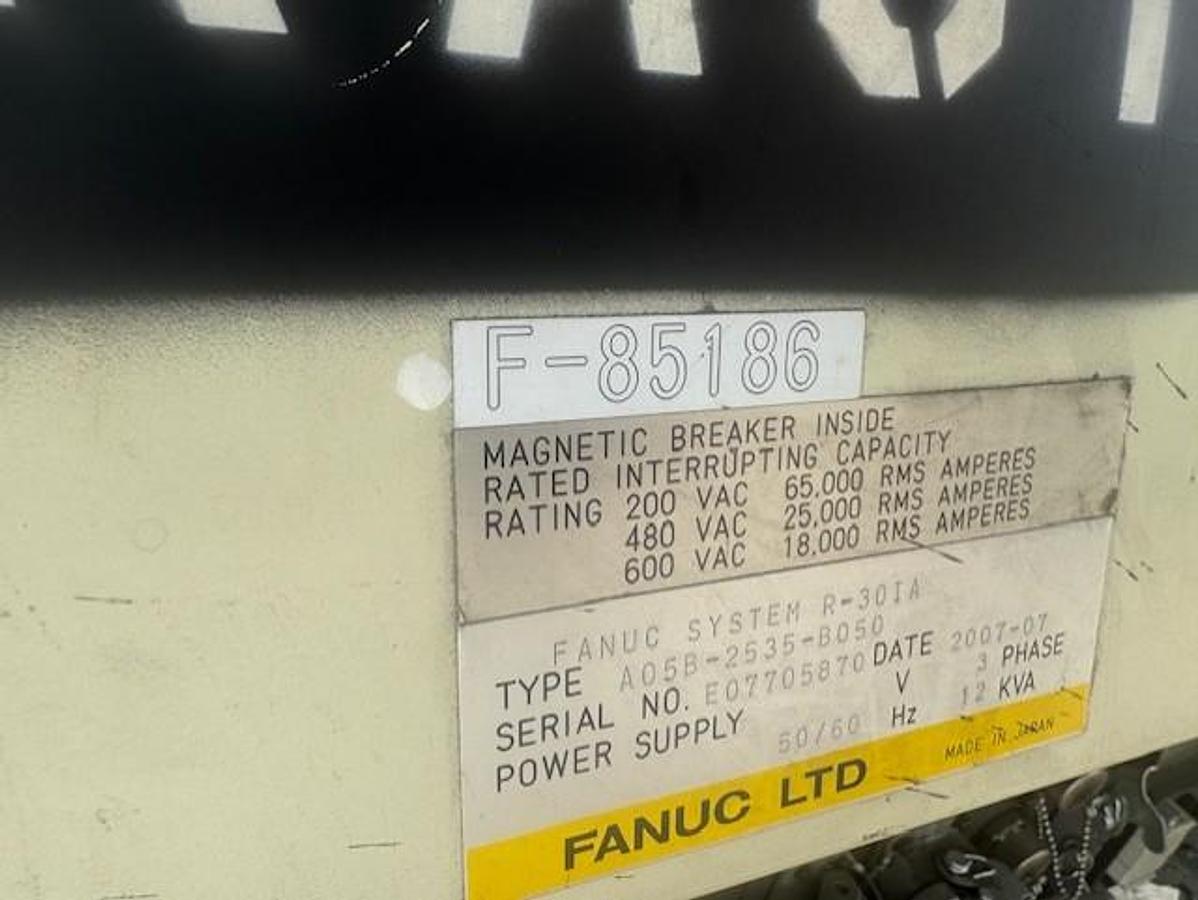

SN's 85186 & 86016

SPECS

==================================================

Axes: 6

Payload: 210kg

H-Reach: 2655mm

Repeatability: ±0.3mm

Robot Mass: 1240kg

Structure: Heavier Payload

Robot Motion Speed

J1 95 °/s (1.66 rad/s)

J2 90 °/s (1.57 rad/s)

J3 95 °/s (1.66 rad/s)

J4 120 °/s (2.09 rad/s)

J5 120 °/s (2.09 rad/s)

J6 190 °/s (3.32 rad/s)

Robot Motion Range

J1 ±180°

J2 +75° - 60°

J3 +230° - 132°

J4 ±360°

J5 ±125°

J6 ±360°

EQUIPPED WITH:

TEACH PENDANT

CABLES

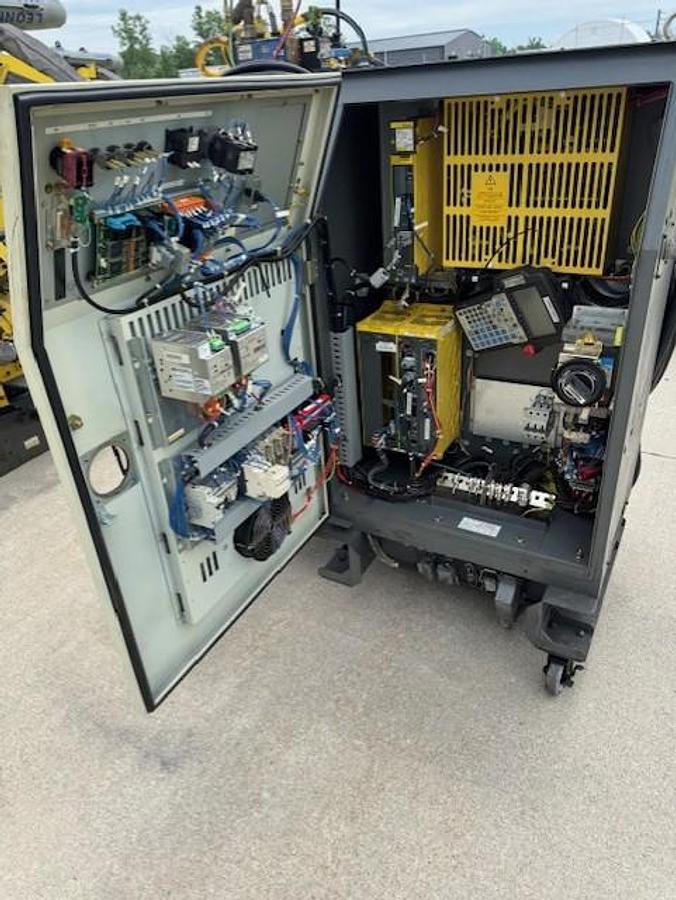

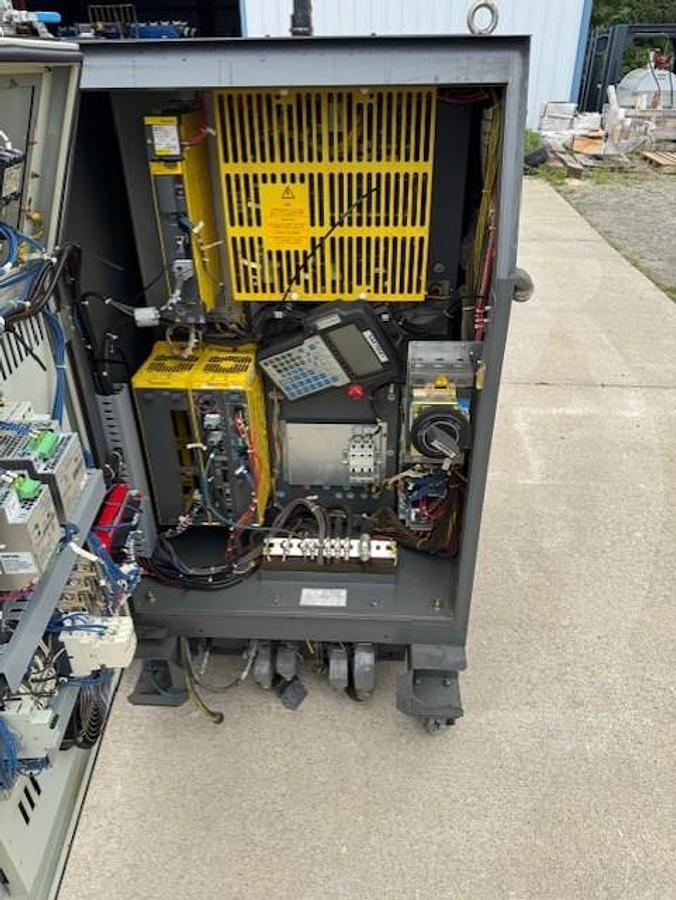

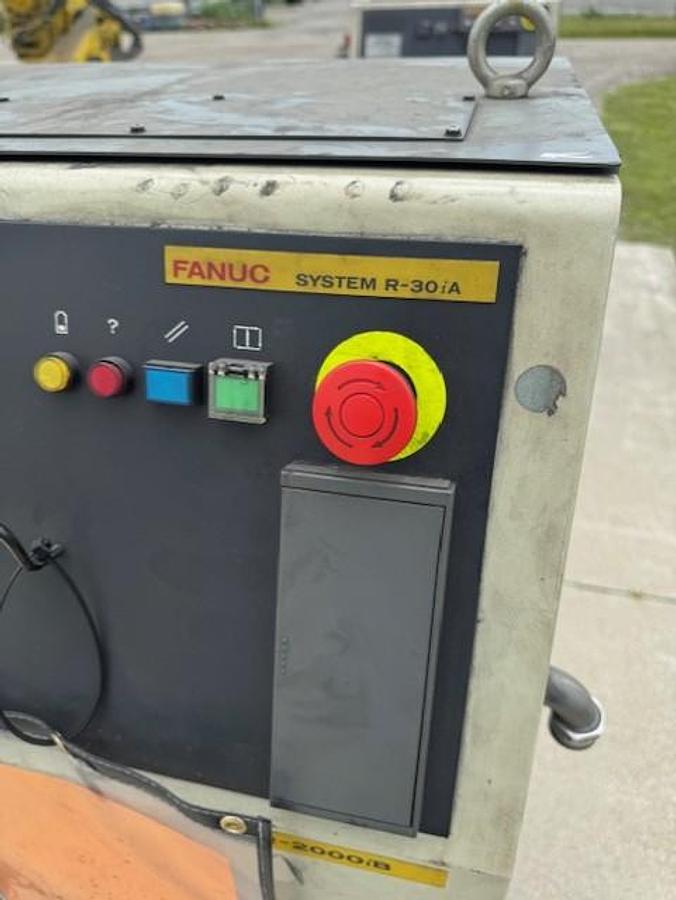

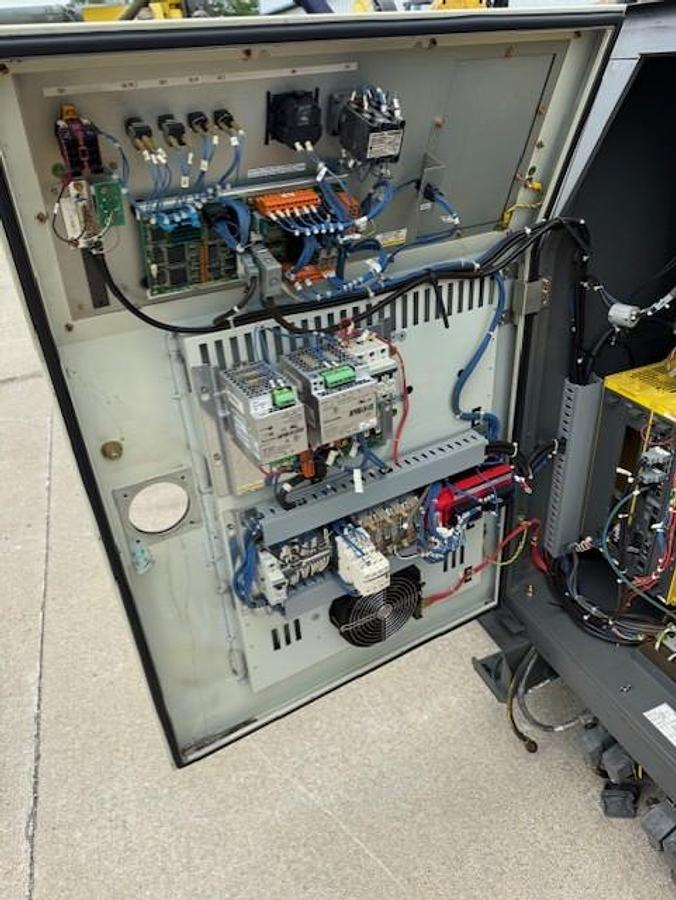

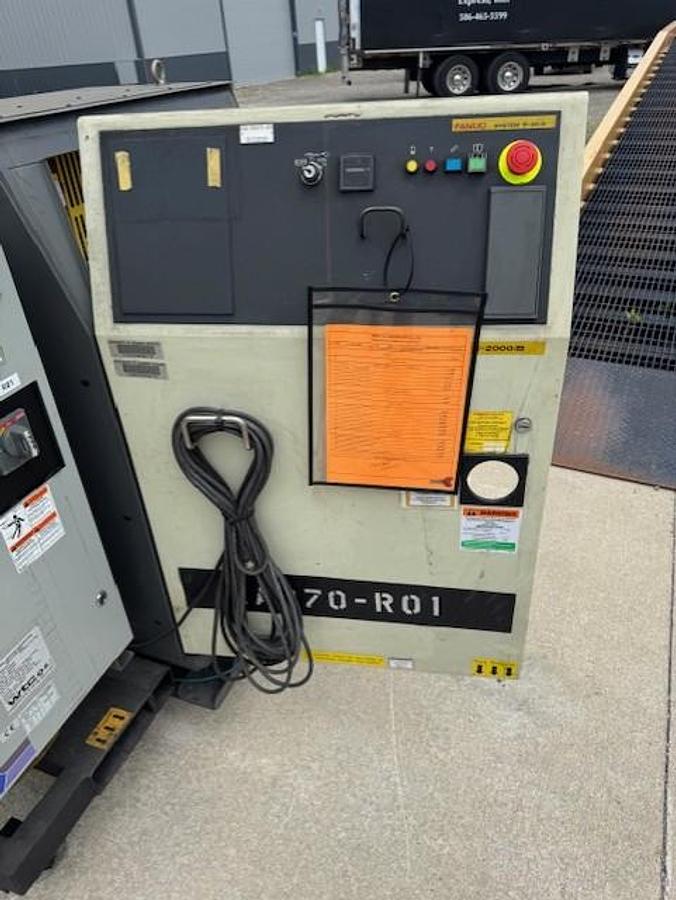

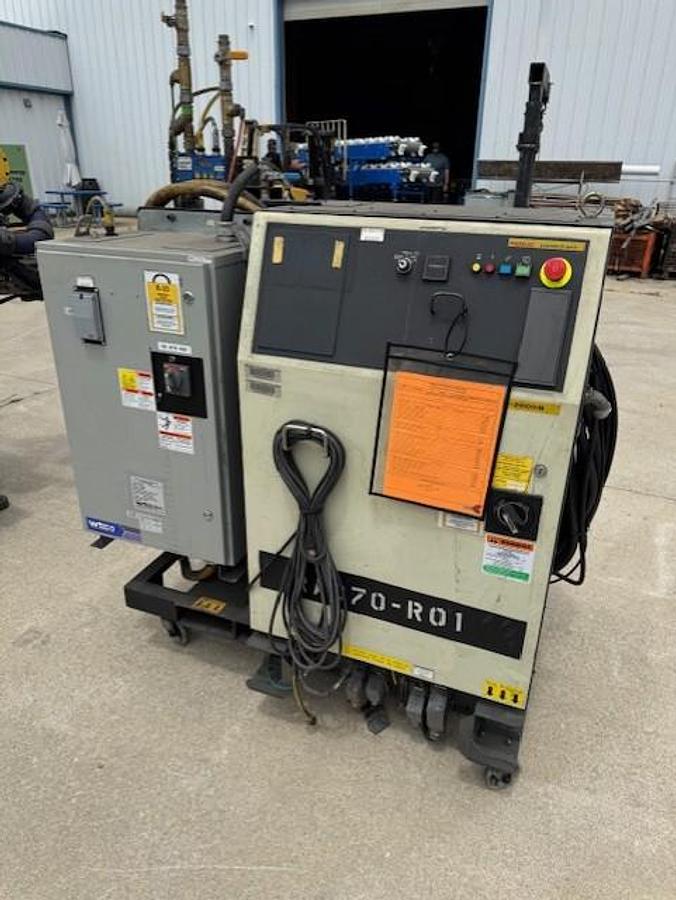

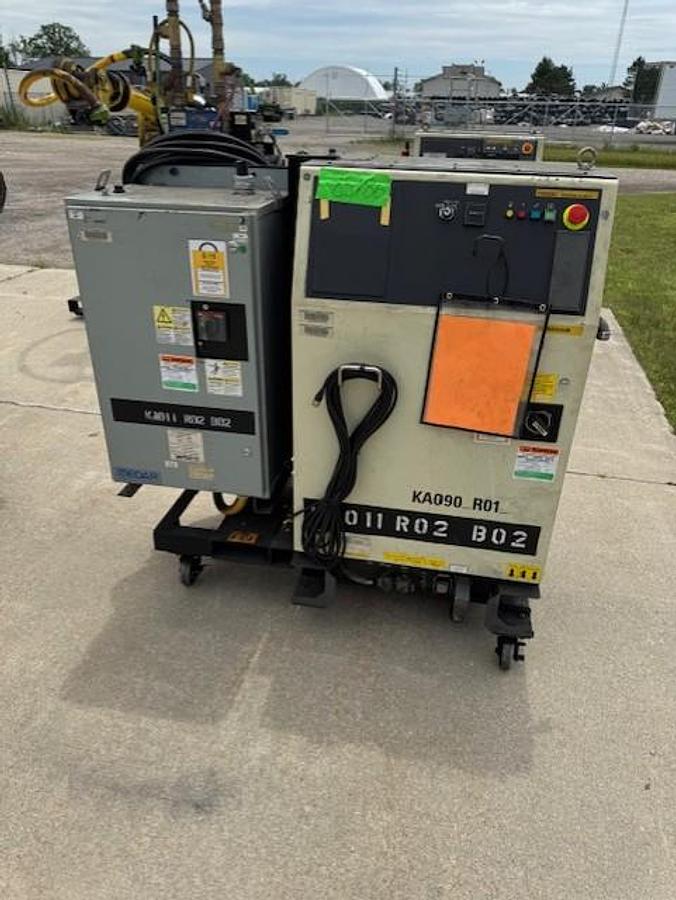

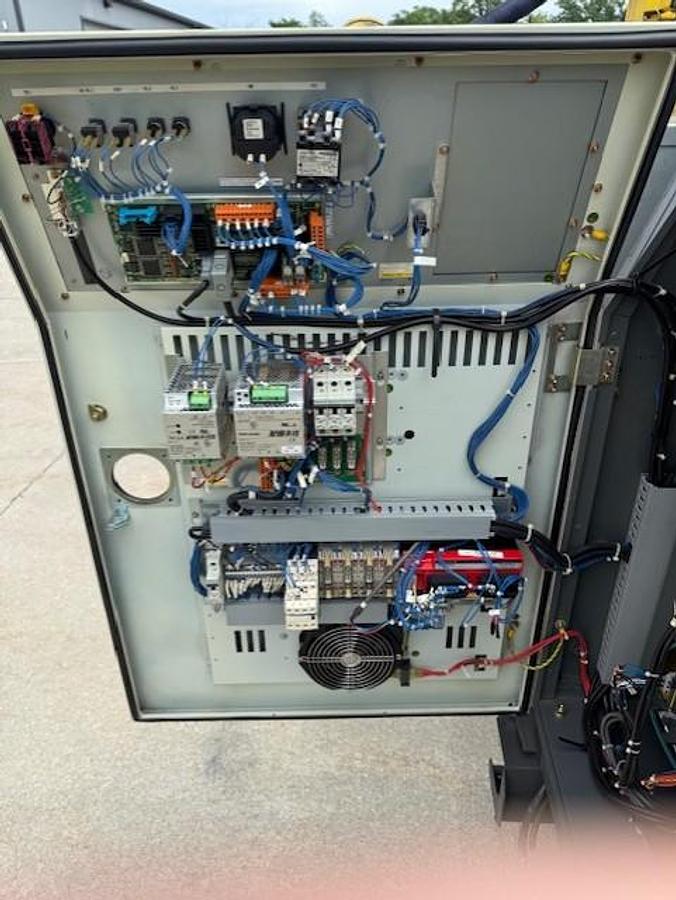

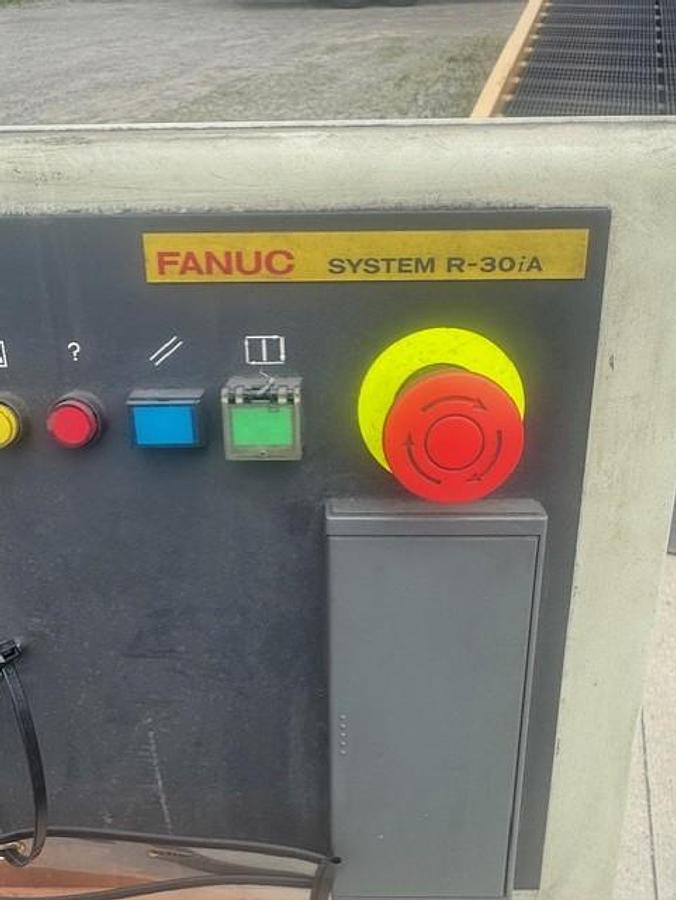

R30iA CONTROLLER
