FANUC M410iB/160 PALLETIZING ROBOT WITH RJ3iB CONTROLLER
No longer available
FANUC M410iB/160 PALLETIZING ROBOT WITH RJ3iB CONTROLLER
Harbor Springs, MI
Description
Robot Motion Speed
J1 130 °/s (2.27 rad/s)
J2 130 °/s (2.27 rad/s)
J3 135 °/s (2.36 rad/s)
J4 300 °/s (5.24 rad/s)
Robot Motion Range
J1 ±360°
J2 ±144°
J3 ±136°
J4 ±540°
The FANUC M-410iB/160 is one of the latest-generation palletizing
robots engineered to produce high-quality work with its precision,
high-speed, and high-payload offerings robot. It features a 160kg
payload and delivers high-speed performance, with one of the fastest
cycle times and payloads in its class.
There are various software
options available with the FANUC M-410iB/160 such as Collision Guard,
Pallet Tool, Pallet PRO, web-based software for remote connectivity,
machine vision (iRVision-2D or 3D), and iPendant.
The M-410iB/160 can operate in harsh or traditional environments and
it gives the user more floor space as it has a small footprint and
integrated controller. The new and used M410iB/160 can be paired with
the R-30iA, RJ3iB, or R-30iB controller.

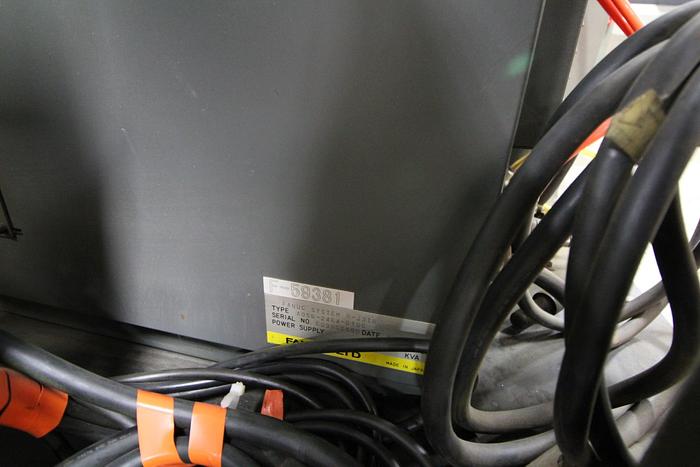

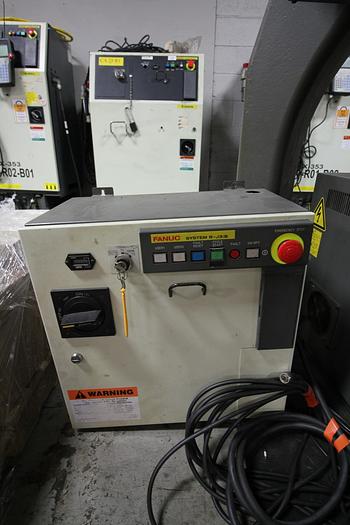

RJ3iB controller
CABLES
TEACH PENDANT
SUCTION GRIPPERS
Specifications
Manufacturer | FANUC |
Model | M410iB/160 PALLETIZING ROBOT |
Year | 2003 |
Condition | Used |
Serial Number | F59381 |
Stock Number | 103734 |
Axes | 4 |
H-reach | 3140.00mm |
Payload | 160.00kg |
Mounting | Floor |
Structure | Articulated |
Robot mass | 1940.00kg |
Repeatability | ±0.5000mm |
