2008 FANUC M10iA DUAL ARM ROBOTIC FOAM CELL WITH A/B SIDED INDEX TABE/ COULD CONVERT TO WELD CELL

2008 FANUC M10iA DUAL ARM ROBOTIC FOAM CELL WITH A/B SIDED INDEX TABE/ COULD CONVERT TO WELD CELL

Contact us for price

Location:Imlay City, MI

orCall 1-231-526-7135 fax

Description

ROBOT CELL WITH 2 FANUC M10IA ROBOTS WITH 30IA CONTROLLERS IN A CELL WITH A/B SIDED INDEX TABLE

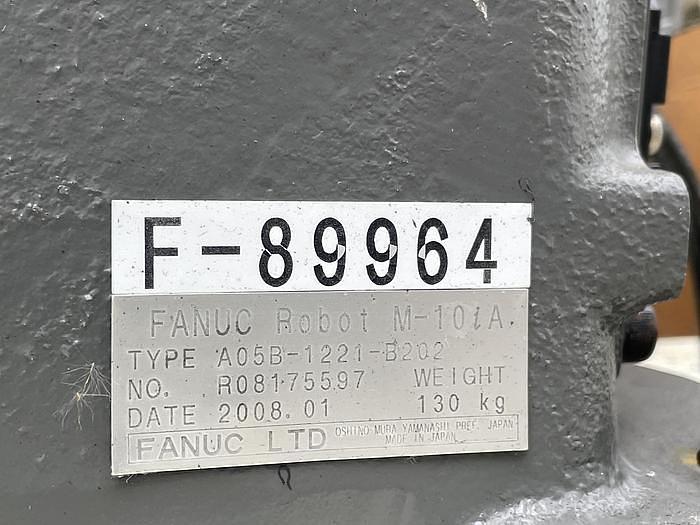

ROBOT SERIAL NUMBERS F89963 & F89964

DATE OF MFG. 01/2008

STK#104041

==========================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:


THIS ROBOTIC FOAM ADHESIVE DISPENCING CELL WAS BUILT BY SYSTEMS UNLIMITED, INC.

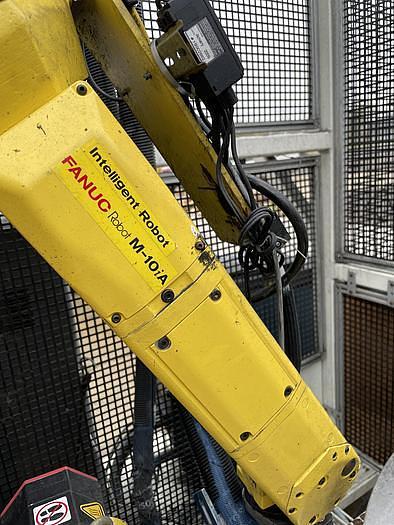

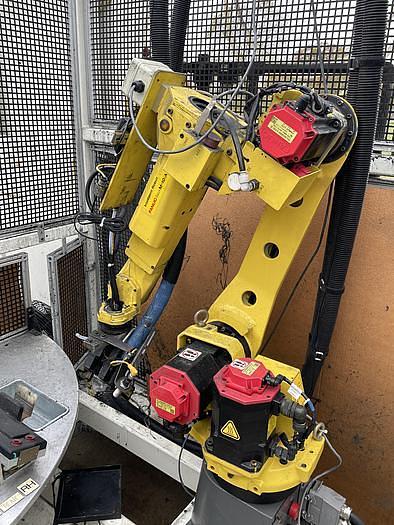

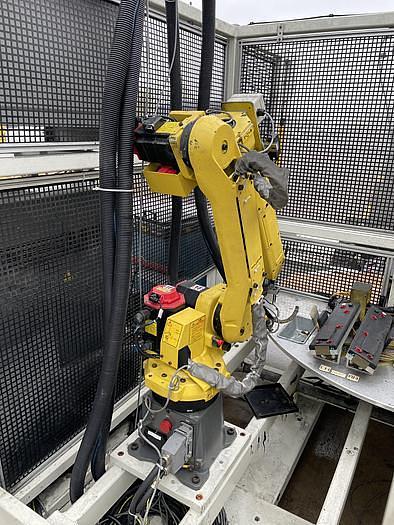

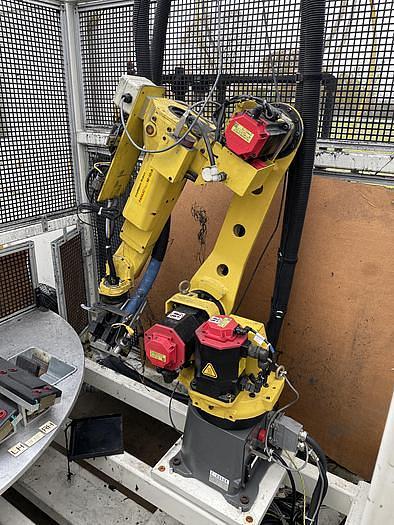

IT IS INTEGRATED ON A COMMON BASE WITH 2 FANUC M10IA ROBOTS WITH 30IA CONTROLLERS. BOTH

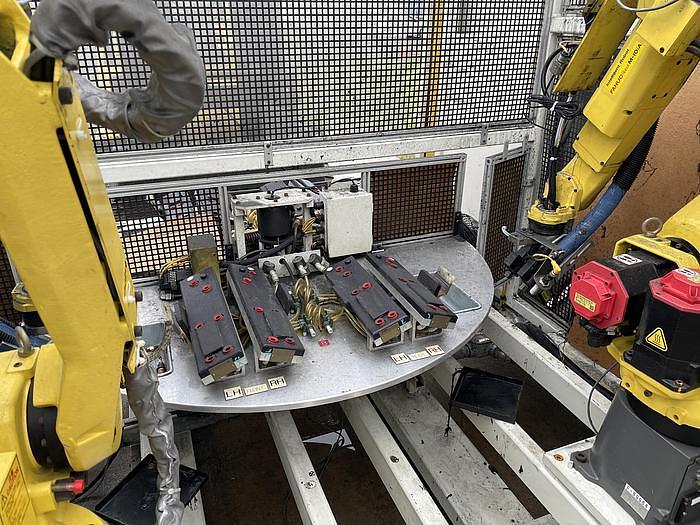

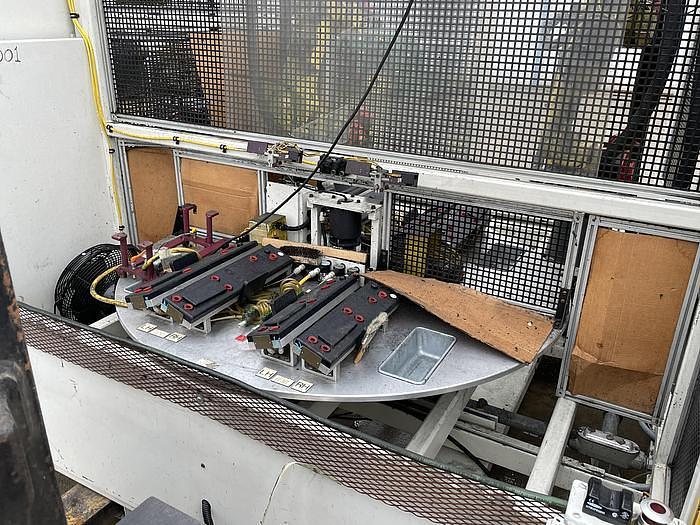

ROBOTS ARE MOUNTED ON THE SAME SIDE OF A ROUND 60" DIAMETER A/B SIDED INDEX TABLE.

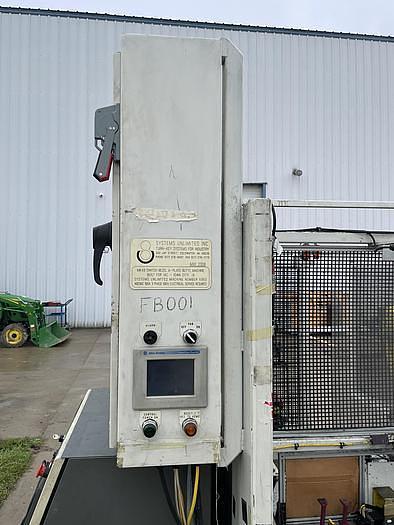

THE CELL IS TIED TOGETHER WITH AN ALLEN BRADLEY PLC PANEL AND FLAT SCREEN HMI

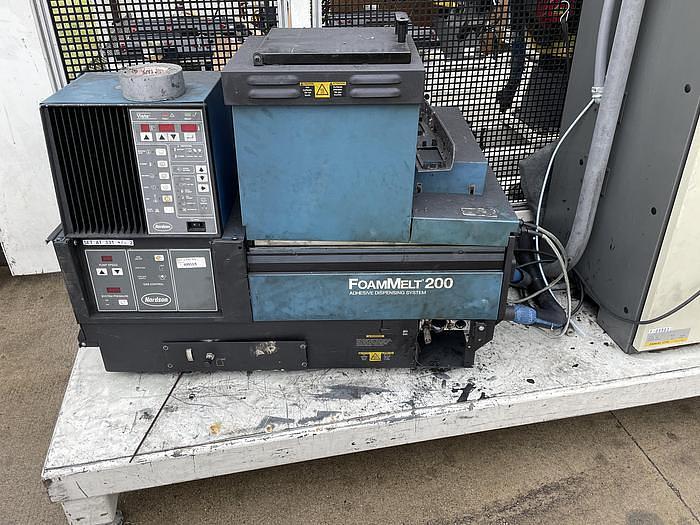

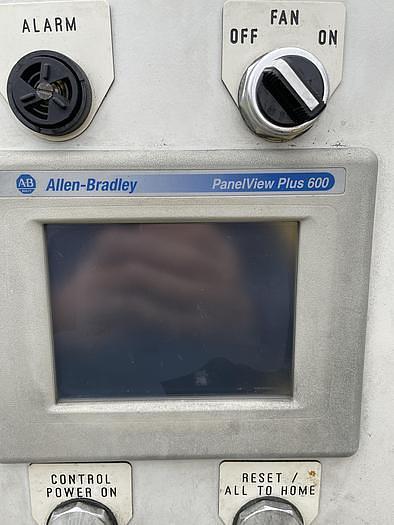

ALLEN BRADLEY 600 PANEL VIEW PLUS OPERATORS CONTROL STATION. EACH ROBOT IS EQUIPPED WITH

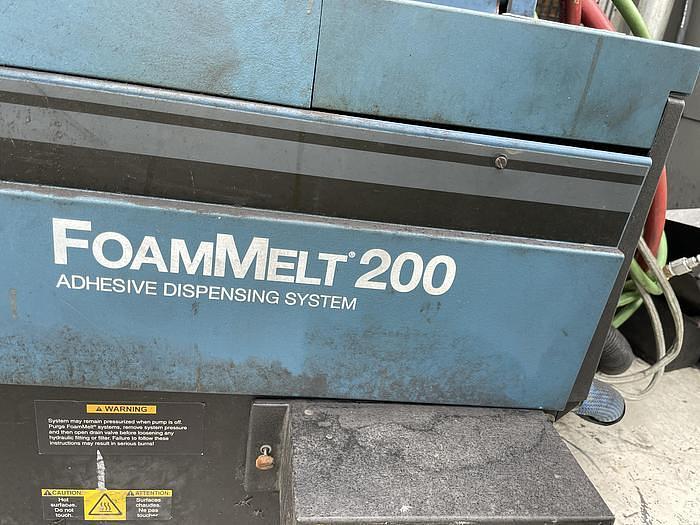

A FOAMMELT 200 ADHESIVE DISPENSING SYSTEM. THE CELL CAN BE USED AS DESIGNED AS AN ADHESIVE

FOAM DISPENSING MACHINE OR COULD BE CONVERTED TO A DUAL ARM ROBOTIC WELDING CELL.

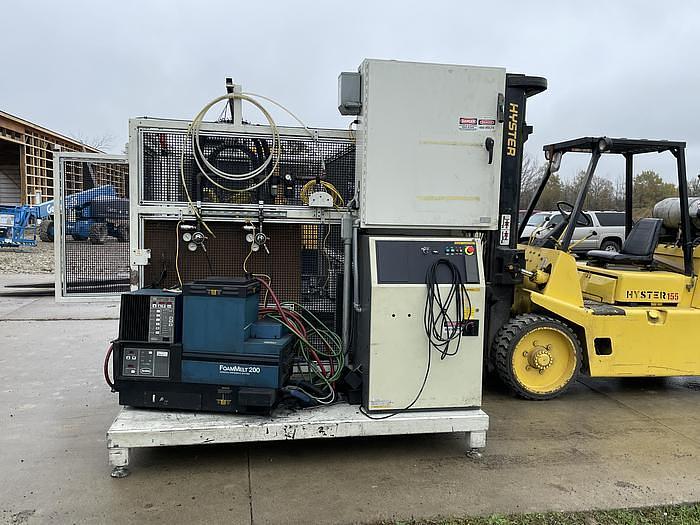

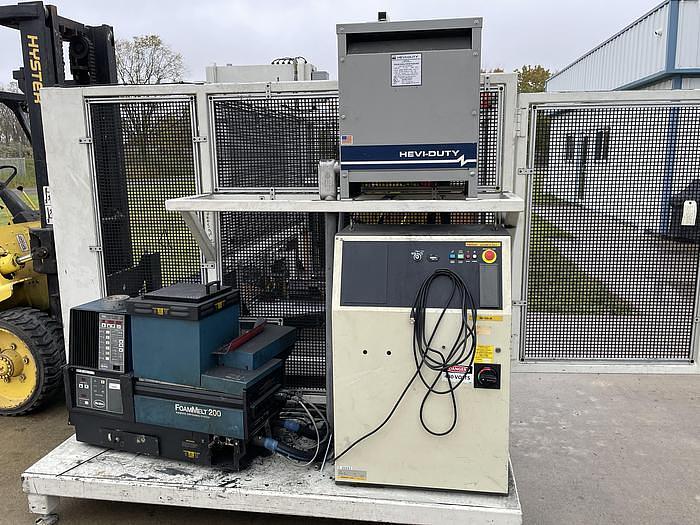

THE CELL IS COMPLETE WITH FENCING, LIGHT CURTAINS AND THERE ARE FORK POCKETS UNDER

THE BASE OF THE CELL FOR EASY UNLOADING AND MOVING AROUND YOUR PLANT.


Robot Specifications:

Axes: 6

Payload: 10kg

H-Reach: 1420mm

Repeatability: ±0.08mm

Robot Mass: 130kg

Structure: Articulated

Mounting: Floor, Inverted, Angle


Robot Motion Speed:

J1 210 °/s (3.67 rad/s)

J2 190 °/s (3.32 rad/s)

J3 210 °/s (3.67 rad/s)

J4 400 °/s (6.98 rad/s)

J5 400 °/s (6.98 rad/s)

J6 600 °/s (10.47 rad/s)


Robot Motion Range

J1 +340° - 360°

J2 ±250°

J3 ±290°

J4 ±380°

J5 ±380°

J6 ±720°


Applications:

Material Handling Robots

Assembly Robots

Machine Loading Robots

Machine Tending Robots

Milling Robots

Part Transfer Robots

Pick and Place Robots

Routing Robots

Spindle Robots

Waterjet Robots


EQUIPPED WITH:

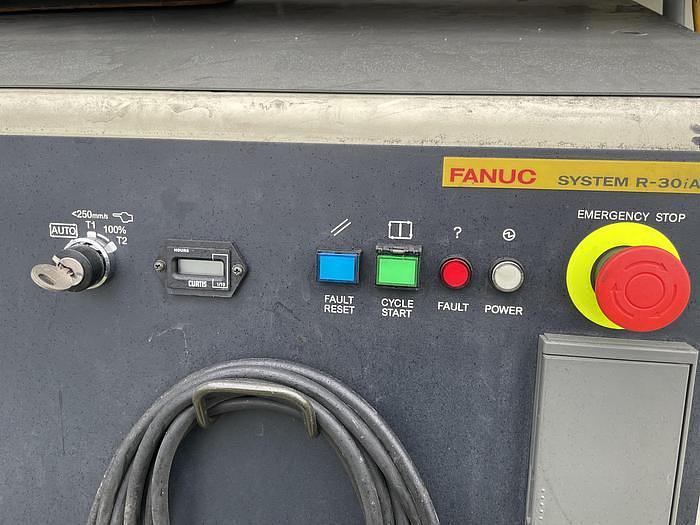

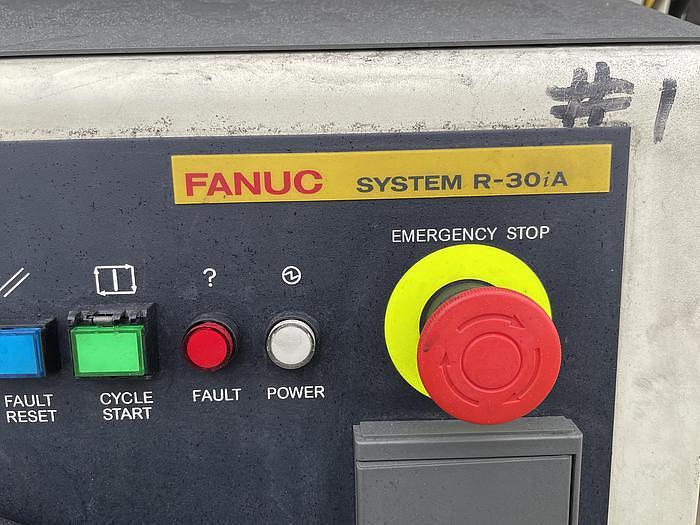

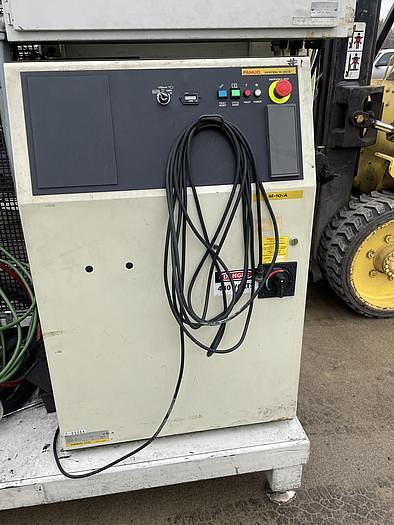

FANUC R30IA CONTROLLER

FANUC ROBOT RCC CABLES

FANUC TEACH PENDANT


FOB TRUCK, IMLAY CITY, MI 48444


THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND

BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS

AND CONDITIONS.


HARBOR MACHINERY INC.

Specifications

ManufacturerFANUC
ModelM10iA DUAL ARM ROBOTIC FOAM CELL WITH A/B SIDED INDEX TABE/ COULD CONVERT TO WELD CELL
Year2008
ConditionUsed
Serial NumberROBOT SERIAL NUMBERS F89963 & F89964
Stock Number104041
