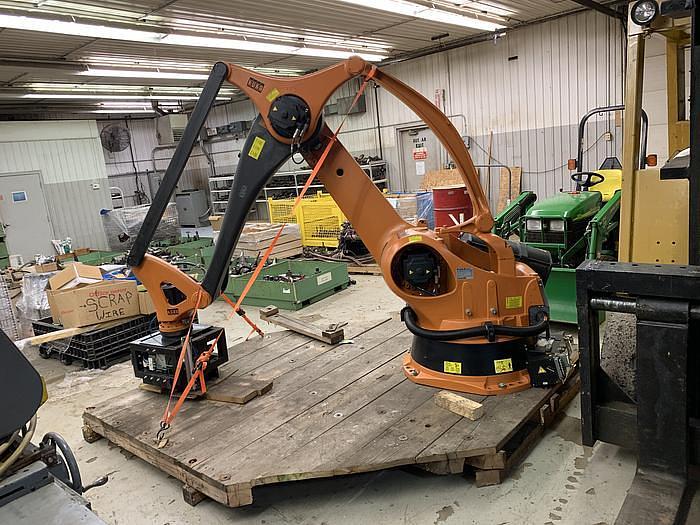

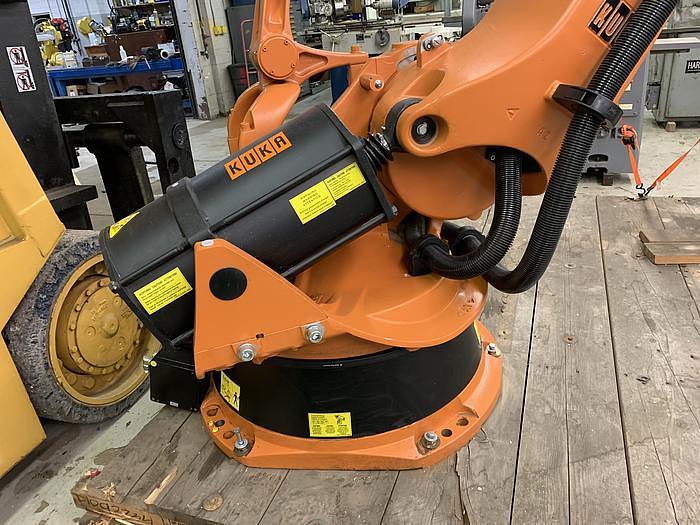

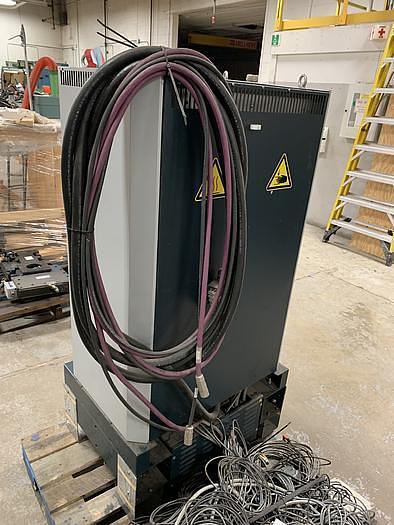

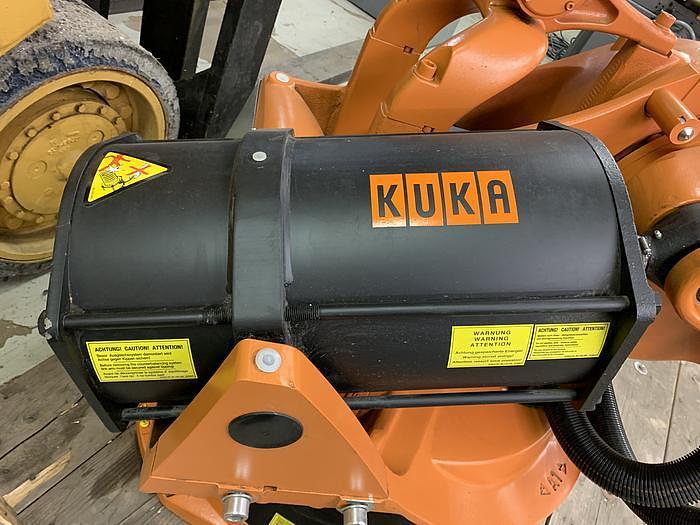

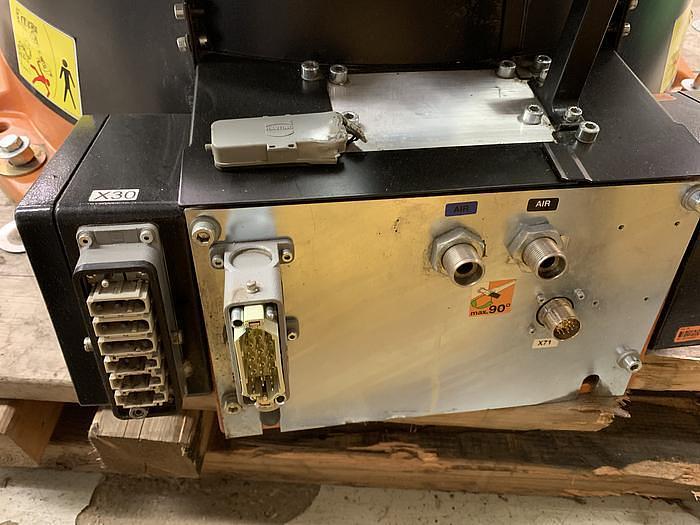

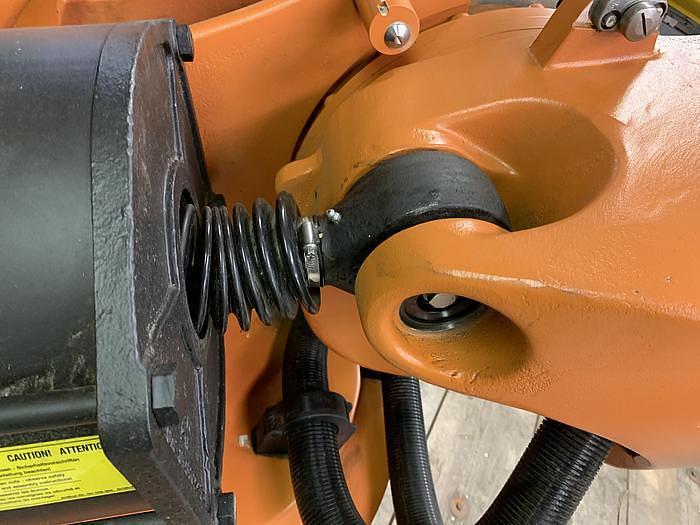

2010 KUKA KR 100-2 PA 4 AXIS PALETTIZING ROBOT W/KRC 2 ed05 CONTROLLER

2010 KUKA KR 100-2 PA 4 AXIS PALETTIZING ROBOT W/KRC 2 ed05 CONTROLLER

Contact us for price

Location:Almont, MI

orCall 1-231-526-7135 fax

Description

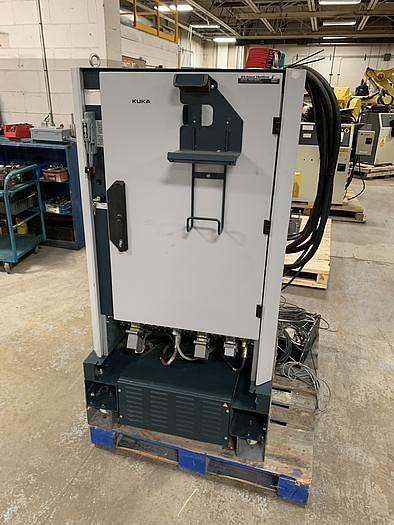

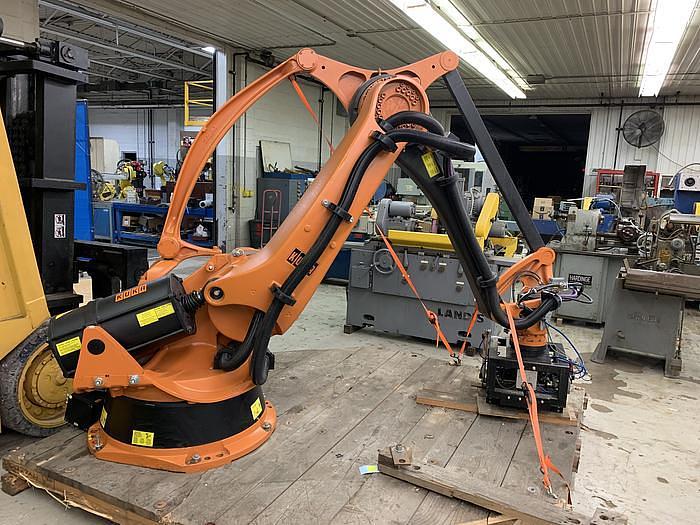

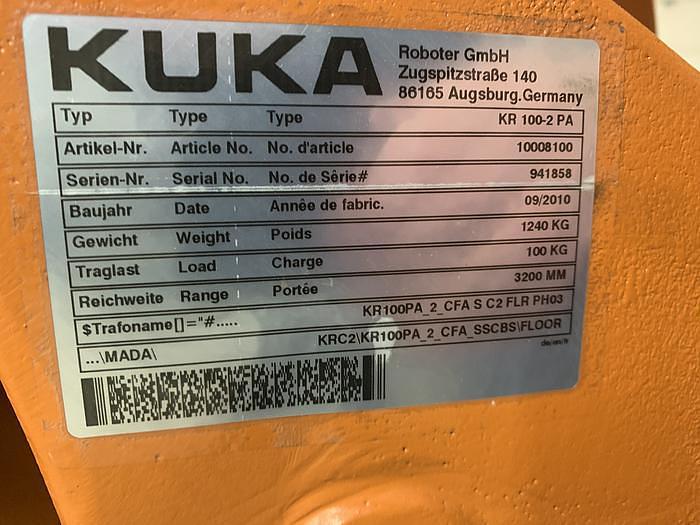

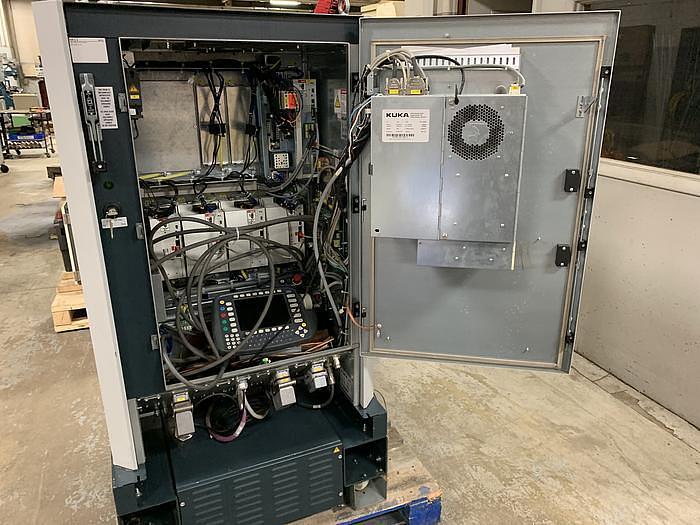

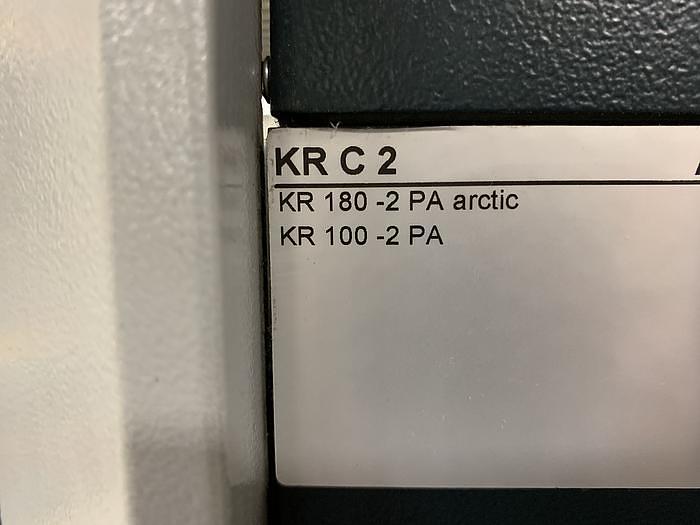

1-USED KUKA KR 100-2 PA 4 AXIS CNC PALLETIZING ROBOT WITH KR C2 ed05 CONTROLLER MACHINE SERIAL NUMBER 941858 DATE OF MFG. 09/2010 STK#103831 ============================= SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER: Type KR 100-2 pA Maximum reach 3,200 mm Rated payload 100 kg suppl. load, arm/link arm/rotating col. 50/–/200 kg suppl. load, arm + link arm, max. 50 kg Maximum total load 350 kg number of axes 4 Mounting position floor variant positioning repeatability* ±0.25 mm path repeatability* controller KR c2 edition2005 weight (excluding controller), approx. 1,200 kg Temperature during operation +10 °c to +55 °c protection classification IP 65 Robot footprint 1,006 mm x 1,006 mm connection 13.5 kvA noise level < 75 db 100 kg MODEL ROBOT MOTION RANGE AND SPEED: Axis 1 (A1) ±185° 105°/s Axis 2 (A2) 0°/–129° 105°/s Axis 3 (A3) +161°/–19° 105°/s Axis 4 (A4) ±350° 300°/s DETAILS FROM THE OEM: »KR 100-2 PA and KR 180-2 PA: our most popular palletizers Higher, faster, further: KUKA makes things easy for you – with the most extensive range of palletizing robots in the world. A total of eleven models are available for your palletizing, order picking and handling tasks: with payloads from 40 to 1,300 kg and reaches from 1,991 to 3,600 mm. This unique comprehensiveness gives you the flexibility to use the robot that is perfectly dimensioned for your requirements. For individual models, various options are available: different arm extensions and the use of H1 oil approved for applications in the food industry. You can also decisively expand the work envelope of any model by mounting it on a KUKA linear unit. A further decisive factor: you benefit from top quality and shorter cycle times. The advantages: a high degree of planning reliability and security of investment. »Extremely fast – extremely optimized Increase your output: the KR 100-2 PA and KR 180-2 PA belong to the 2000 Series and thus have particularly powerful motors and high-performance gear units. These ensure top dynamic performance and fast production at approx. 30 cycles per minute. And thanks to the optimized design, these stacking specialists are able to stack multiple pallets up to great heights with ease. The advantages: shorter cycle times and greater productivity. »Extremely powerful – extremely reliable With their carbon-fiber-reinforced components, the KR 100-2 PA And KR 180-2 PA score in more ways than one: firstly, the mass to be moved is reduced, thereby greatly increasing performance and reducing energy consumption. Secondly, the usual high stiffness is maintained, ensuring reliable operation for every requirement. Thirdly, the resulting functional design has already won many awards. The advantages: greater performance and lower energy consumption. EQUIPPED WITH: ROBOT MECHANICAL UNIT KR 100-2 PA ROBOT CONTROLLER KRC2 ed05 CABLES TEACH PENDANT WWW.HARBORMACHINERY.COM 231-526-9525

Specifications

ManufacturerKUKA
ModelKR 100-2 PA 4 AXIS PALETTIZING ROBOT W/KRC 2 ed05 CONTROLLER
Year2010
ConditionUsed
Stock Number103831
