FANUC ARCMATE 120iB 6 AXIS CNC ROBOT WITH RJ3iB CONTROLLER

FANUC ARCMATE 120iB 6 AXIS CNC ROBOT WITH RJ3iB CONTROLLER

Contact us for price

Location:Imlay City, MI

orCall 1-231-526-7135 fax

Description

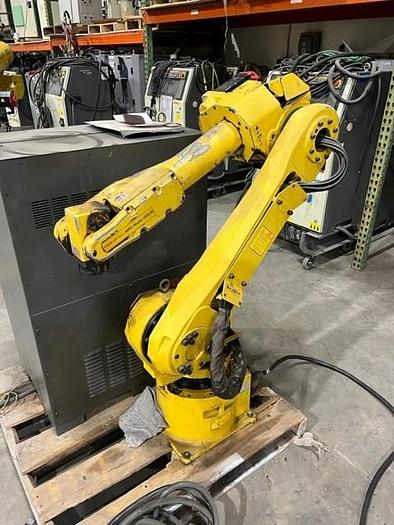

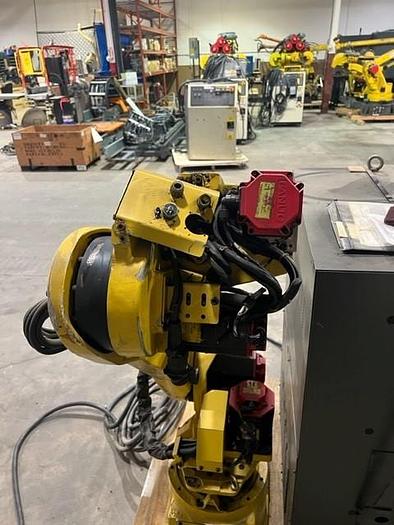

1-USED FANUC ARCMATE 120iB 6 AXIS ROBOT WITH RJ3iB CONTROLLER

SERIAL NUMBER F62261

DATE OF MANUFACTURE 04/2004

STK#104064


===================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:


This Robot is Suitable for high-speed welding and cutting processes, the FANUC ARC Mate 120iB is a six-axis robotic arm that is servo-driven. The FANUC 120iB RJ3iB welding robot provides accurate and consistent path performance based on its simple and reliable construction.


Robot Specifications:

Axes: 6

Payload: 20.00kg

H-Reach: 1667.00mm

Repeatability: ±0.0800mm

Robot Mass: 220.00kg

Structure: Articulated

Mounting: Floor, Inverted, Angle


Robot Motion Speed:

J1 165 °/s (2.88 rad/s)

J2 165 °/s (2.88 rad/s)

J3 175 °/s (3.05 rad/s)

J4 350 °/s (6.11 rad/s)

J5 340 °/s (5.93 rad/s)

J6 520 °/s (9.08 rad/s)


Robot Motion Range:

J1 ±170°

J2 +160° - 90°

J3 +290° - 170°

J4 ±200°

J5 ±140°

J6 ±450°


Robot Applications:

MIG Welding Robots

Oxyacetylene Welding Robots

Plasma Cutting Robots

Plasma Welding Robots

Submerged Arc Welding Robots

TIG Welding Robots

MAG Welding Robots

Welding Automation Robots

Arc Welding Robots


EQUIPPED WITH:

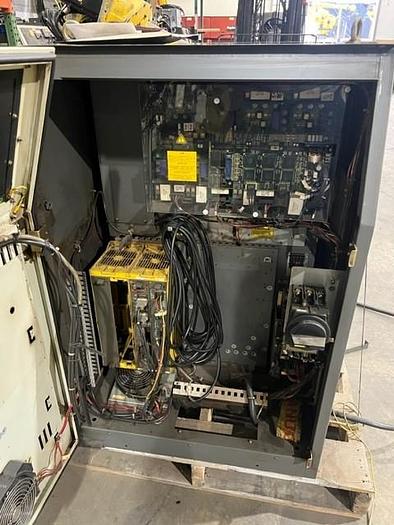

FANUC RJ3iB ROBOT CONTROLLER

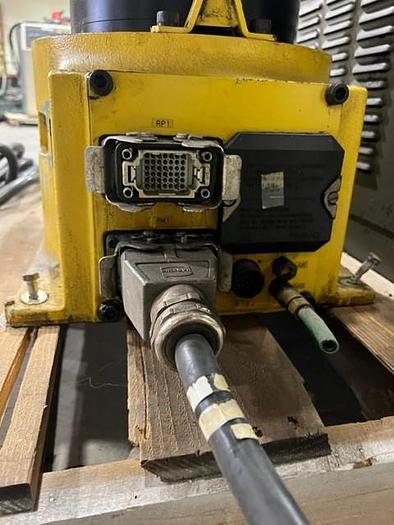

FANUC ROBOT CONNECTION CABLES

TEACH PENDANT


www.harbormachinery.com

231-526-9525

Specifications

ManufacturerFANUC ARCMATE 120iB 6 AXIS CNC ROBOT WITH RJ3iB CONTROLLER
ConditionUsed
Stock Number104064
