2011 FANUC ARCMATE 120iC/10L 6 AXIS CNC MIG WELDING ROBOT WITH R30iA CONTROLLER (SEVERAL AVAILABLE)

No longer available

2011 FANUC ARCMATE 120iC/10L 6 AXIS CNC MIG WELDING ROBOT WITH R30iA CONTROLLER (SEVERAL AVAILABLE)

Location:Almont, MI

Description

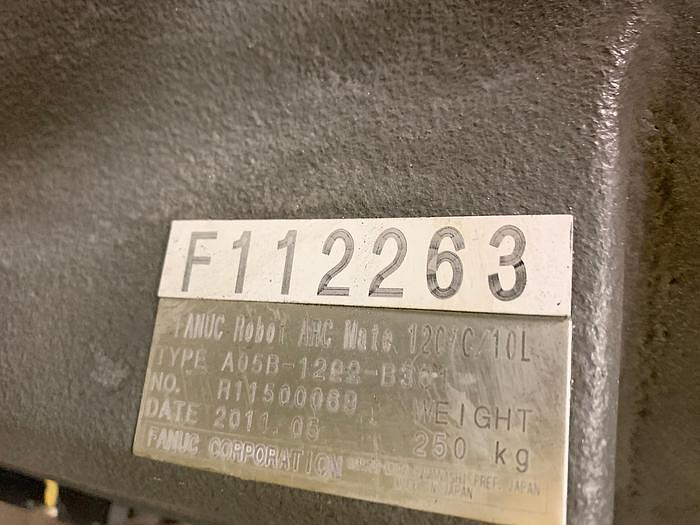

FANUC ARCMATE 120IC/10L 6 AXIS CNC MIG WELDING ROBOT WITH R30iA CONTROLLER SERIAL NUMBER F112263 DATE OF MFG. 2011 STK#103840 ====================================== SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER: HOURS SHOWN ON METER 6,963.4 Robot Specifications: Axes:.............6 Payload:........10 kg H-Reach:.......2009 mm Repeatability:± 0.01 mm Robot Mass: 255 kg Structure: .....Articulated Mounting:.....Floor, Inverted, Angle Robot Motion Speed: J1...... 195°/s (3.4 rad/s) J2...... 175°/s (3.05 rad/s) J3...... 180°/s (3.14 rad/s) J4...... 400°/s (6.98 rad/s) J5...... 400°/s (6.98 rad/s) J6...... 600°/s (10.47 rad/s) Robot Motion Range: J1...... ±370° J2...... ±260° J3...... ±460° J4...... ±400° J5...... +380°- 280° J6...... +900°- 540° EQUIPPED WITH: FANUC R30iA CONTROLLER CONNECTION CABLES COLOR I TEACH PENDANT RISER TORCH WIRE FEEDER LINCOLN I-400 WELDING POWER SUPPLY Robot Applications: Arc Welding 􏰃 Plasma Cutting 􏰃 Plasma Welding FANUC ARC Mate 120iC/10L is the long arm version of its series and can easily get to hard to reach work pieces. An extended horizontal reach of 2,009 millimeters gives the ARC Mate 120iC/10L a wide work envelope. A 10 kilogram maximum payload capacity provides the FANUC 120iC/10L R30iA arc welding robot more than enough strength to hold and maneuver an arc welding torch.

Specifications

ManufacturerFANUC
ModelARCMATE 120iC/10L 6 AXIS CNC MIG WELDING ROBOT WITH R30iA CONTROLLER (SEVERAL AVAILABLE)
Year2011
ConditionUsed
Stock Number103840
