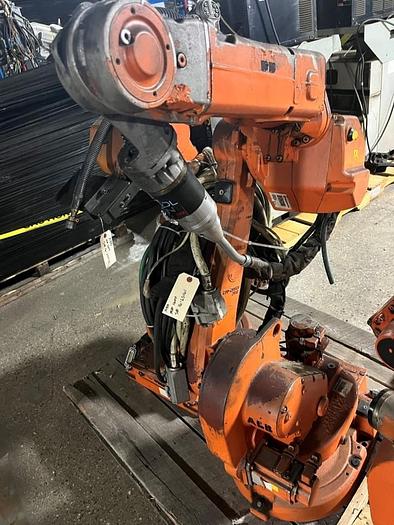

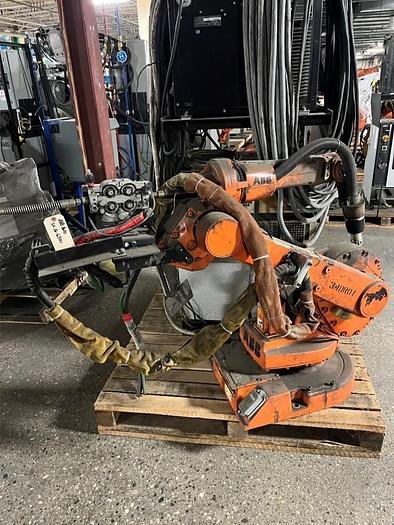

2011 8 - ABB IRB 1600 MIG WELDING ROBOTS WITH IRC5 CONTROLS.

8 - ABB IRB 1600 MIG WELDING ROBOTS WITH IRC5 CONTROLS

STOCK #104068

YEAR 2011

BASIC SPECIFICATIONS:

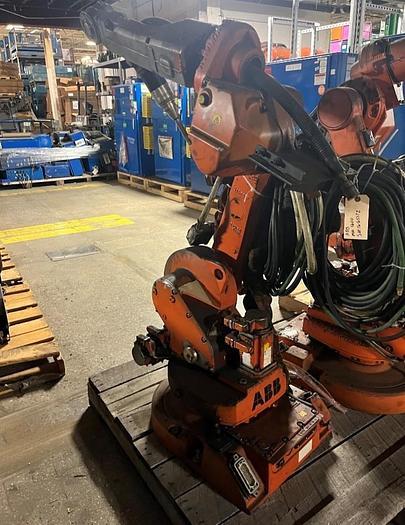

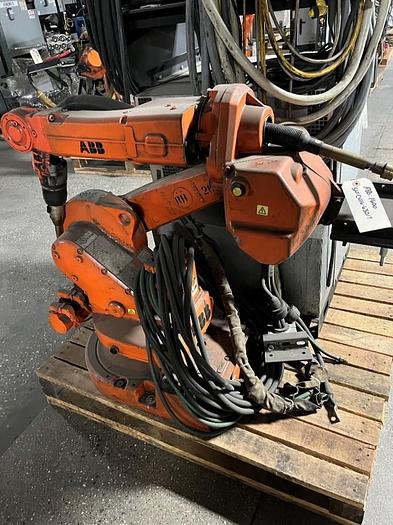

Robot Specifications

Axes:

6

Payload:

6kg

H-Reach:

1200mm

Repeatability:

±0.05mm

Robot Mass:

250kg

Structure:

Articulated

Mounting:

Floor, Inverted, Angle

Robot Motion Speed

J1

150 °/s (2.62 rad/s)

J2

160 °/s (2.79 rad/s)

J3

170 °/s (2.97 rad/s)

J4

320 °/s (5.59 rad/s)

J5

400 °/s (6.98 rad/s)

J6

460 °/s (8.03 rad/s)

Robot Motion Range

J1

+180° - 180°

J2

+136° - 63°

J3

+55° - 235°

J4

+200° - 200°

J5

+115° - 115°

J6

+400° - 400

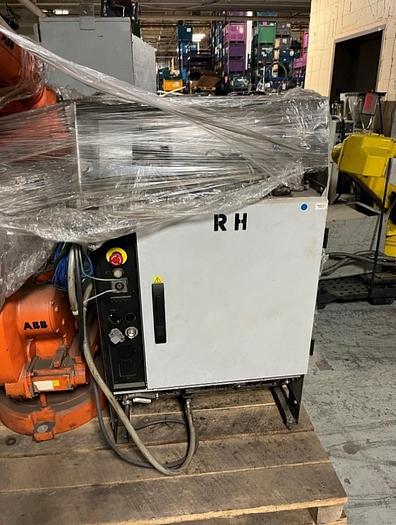

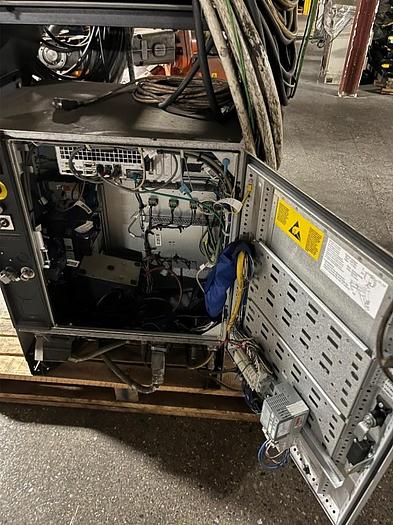

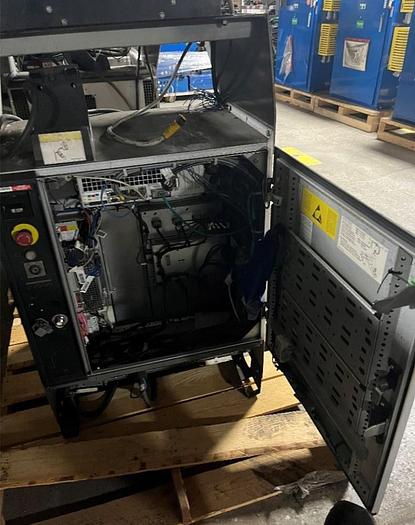

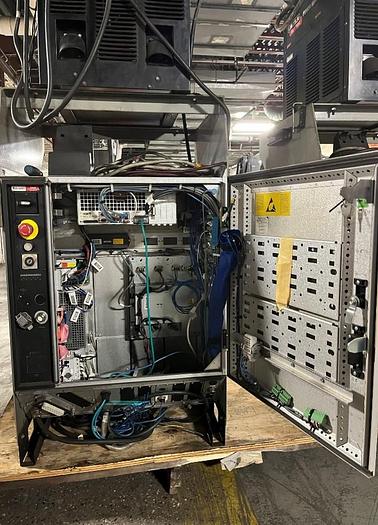

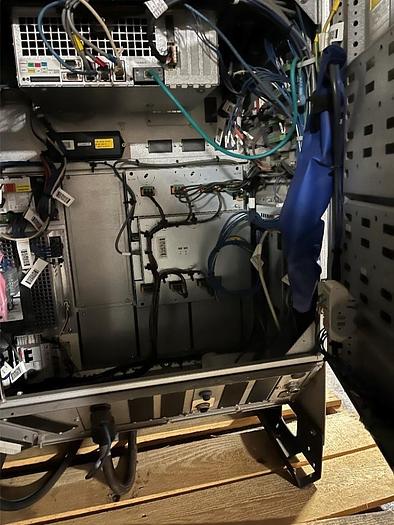

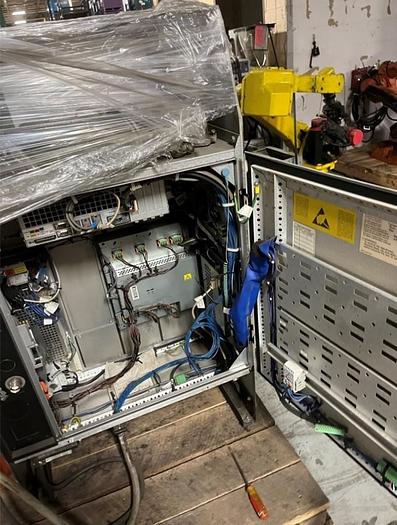

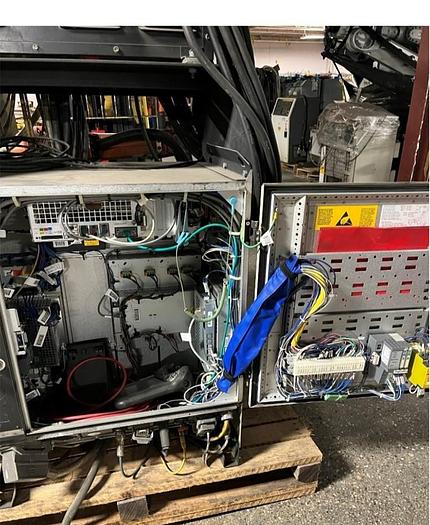

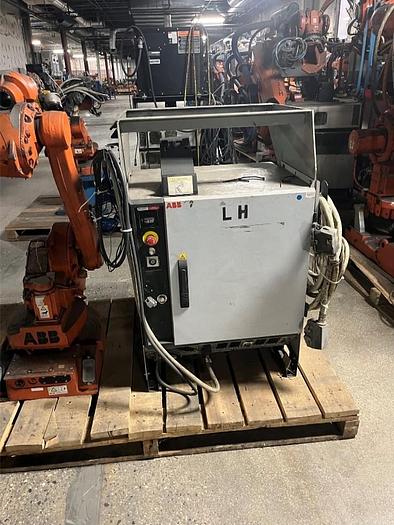

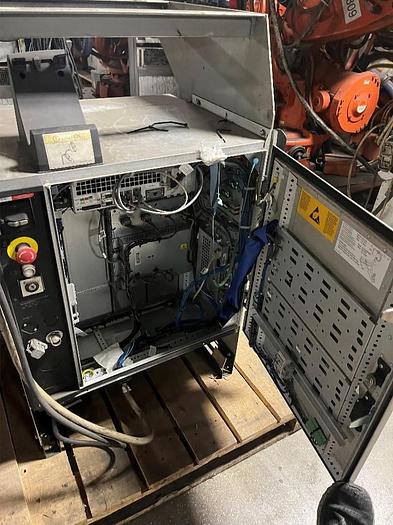

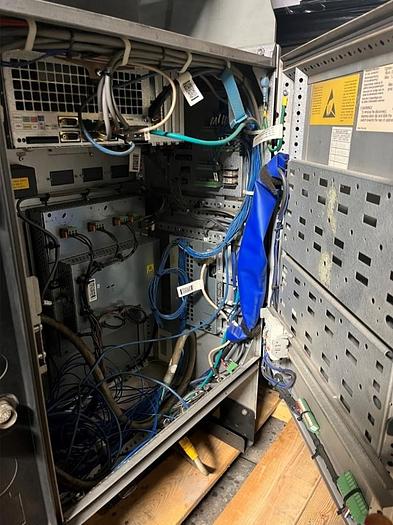

IRC5 CONTROLS

CABLES

MISSING A FEW TEACH PENDANTS

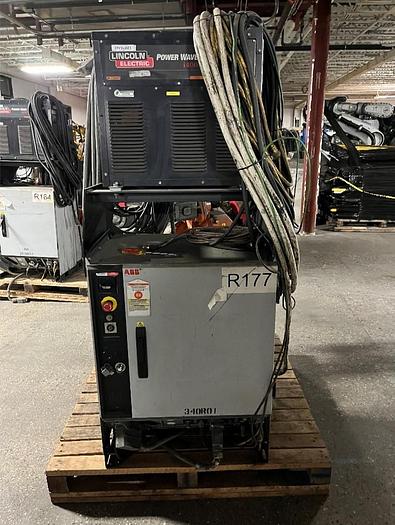

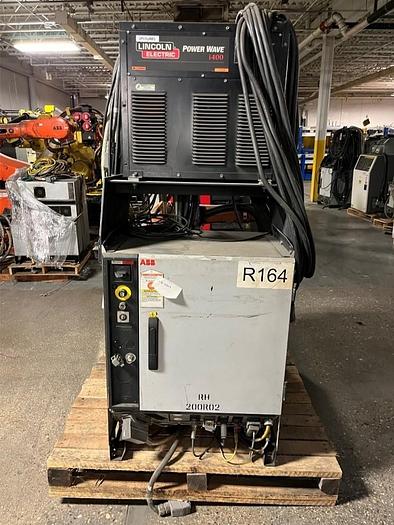

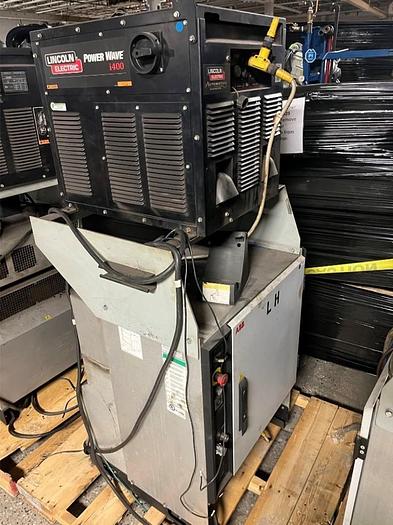

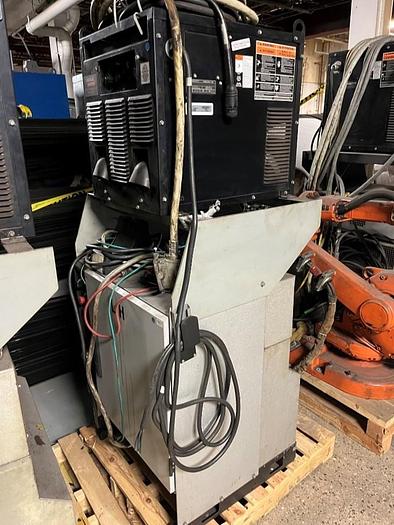

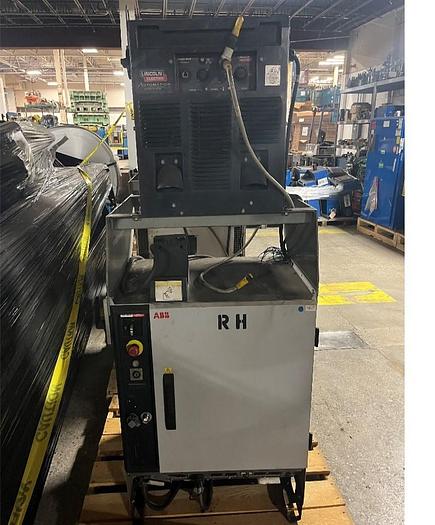

SEVERAL HAVE THE LINCOLNi400 POWER SUPPLY
