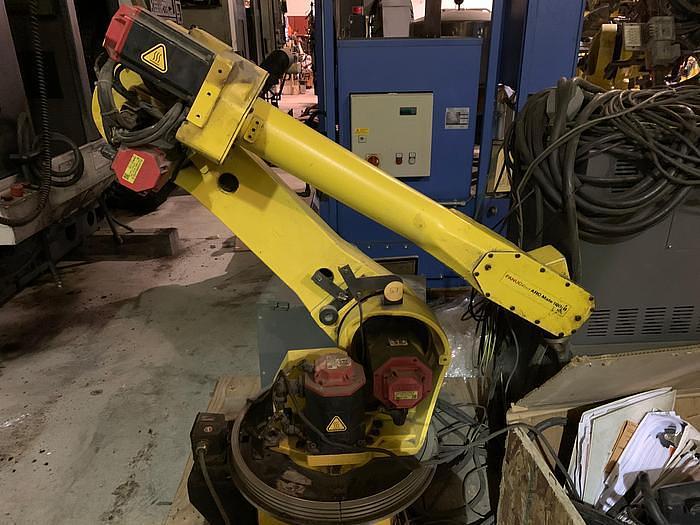

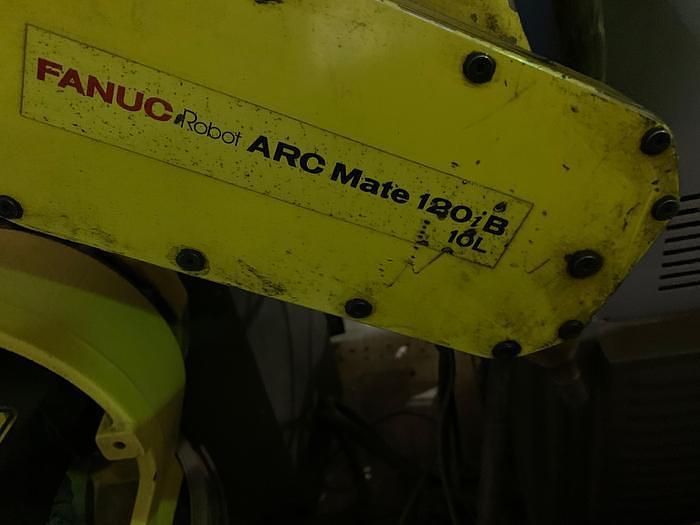

FANUC ARCMATE 120iB/10L 6 AXIS ROBOT 10 KG X 1885 MM HIGH REACH

$19,500 (USD)

Almont, MI

orCall 1-231-526-7135 fax

Description

FANUC ARCMATE 120iB/10L 6 AXIS ROBOT 10 KG X 1885 MM HIGH REACH

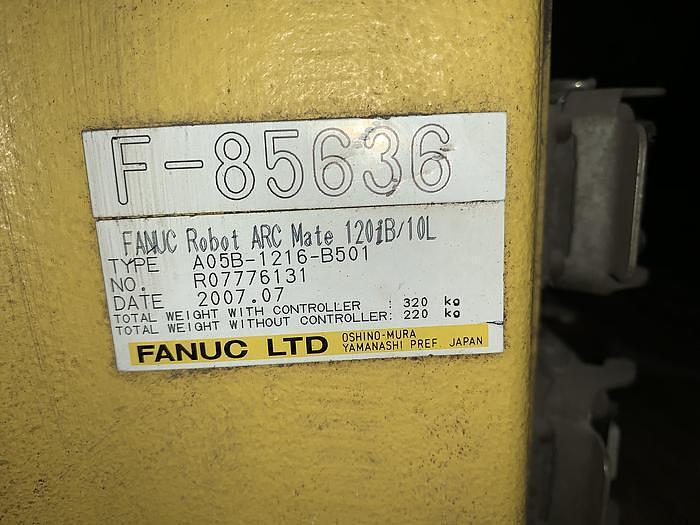

SERIAL NUMBER F85636
DATE OF MFG. 07/2007
STK#103869
===========================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

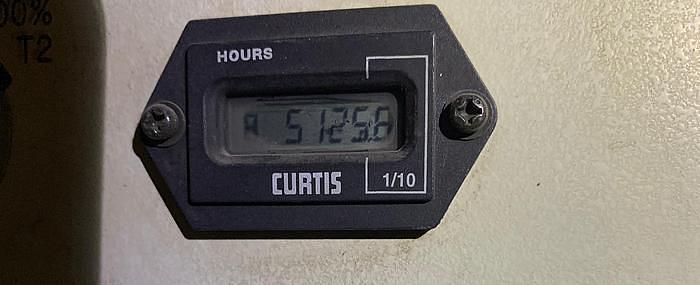

HOURS SHOWN ON METER 5,125.6

Robot Specifications:
Axes: 6
Payload: 10.00kg
H-Reach: 1885.00mm
Repeatability: ±0.1000mm
Robot Mass: 220.00kg
Structure: Articulated
Mounting: Floor, Inverted, Angle

Robot Motion Speed:
J1 165 °/s (2.88 rad/s)
J2 165 °/s (2.88 rad/s)
J3 175 °/s (3.05 rad/s)
J4 350 °/s (6.11 rad/s)
J5 340 °/s (5.93 rad/s)
J6 520 °/s (9.08 rad/s)

Robot Motion Range:
J1 ±170°
J2 +160° - 90°
J3 +285° - 170°
J4 ±200°
J5 ±140°
J6 ±450°

Robot Applications:
MIG Welding Robots
Plasma Welding Robots
TIG Welding Robots
Welding Automation Robots
Arc Welding Robots

The extended reach FANUC ARC Mate 120iB/10L performs arc welding and cutting applications with ease. The 120iB/10L uses its six-axes, overhead rail-mount, horizontal reach of 1,885 millimeters and, +/- 0.1 millimeter repeatability to ensure that parts large and small receive extremely accurate welds and cuts. The FANUC ARC Mate 120iB 10L RJ3iB arc welding robot has a maximum payload capacity of 10 kilograms.

The 120iB is the best in its class for reach versus stroke ratio and fastest motion speeds. The exceptionally fast wrist axes reduce air cut times, and the ARC Mate has an extremely large work envelopes and complex tooling.

EQUIPPED WITH:

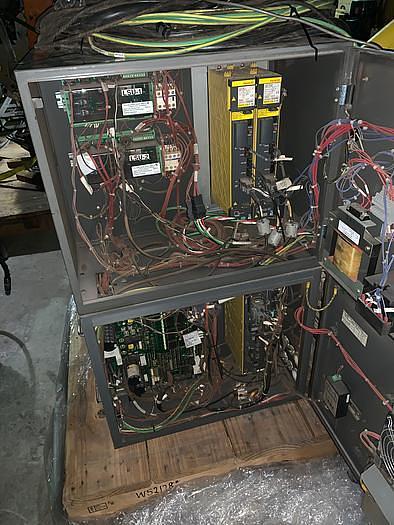

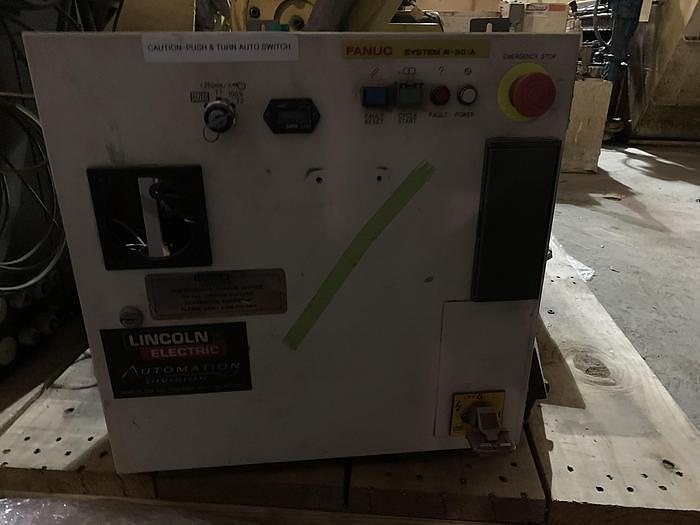

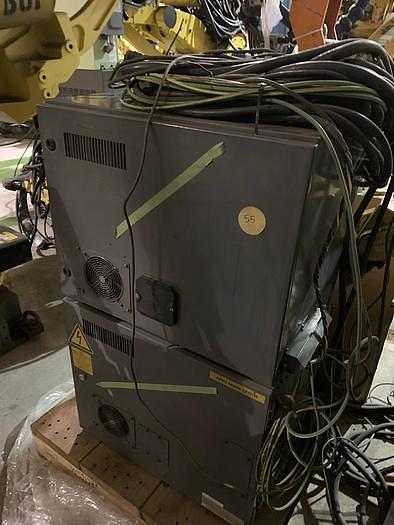

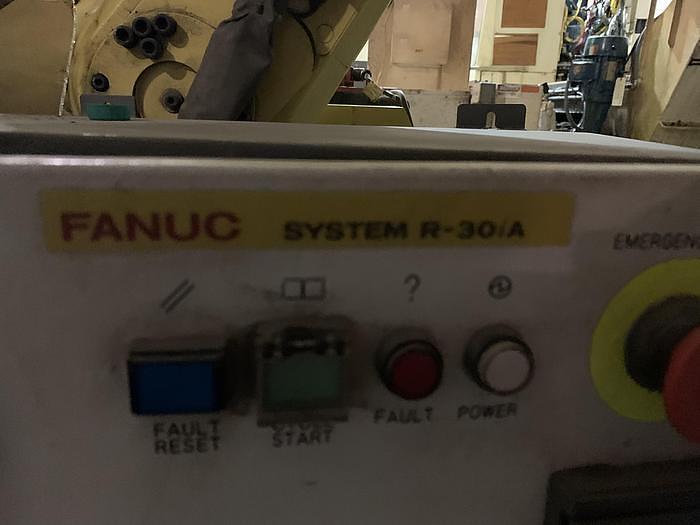

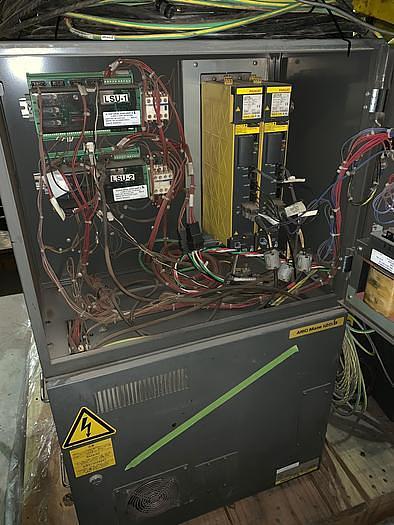

FANUC R30iA CONTROLLER
CABLES
TEACH PENDANT

Specifications

ManufacturerFANUC
ModelARCMATE 120iB/10L 6 AXIS ROBOT 10 KG X 1885 MM HIGH REACH
ConditionUsed
Stock Number103869
