2017 FANUC LR MATE 200ID/7C CLEAN ROOM 6 AXIS ROBOT WITH R30IB

2017 FANUC LR MATE 200ID/7C CLEAN ROOM 6 AXIS ROBOT WITH R30IB

Contact us for price

Location:Almont, MI

orCall 1-231-526-7135 fax

Description

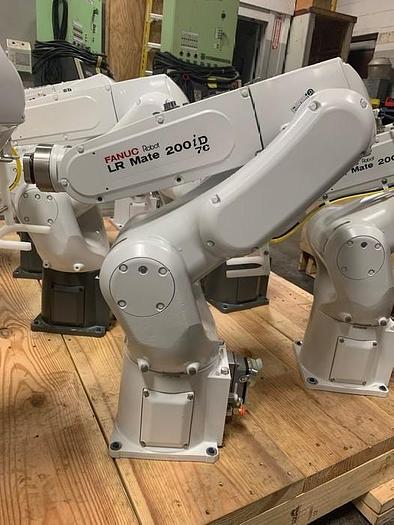

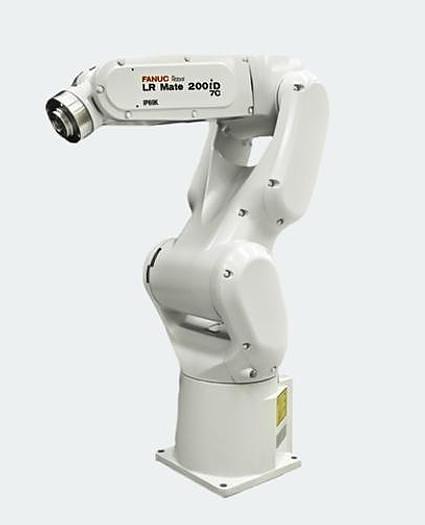

FANUC LR MATE 200iD/7C 6 AXIS CLEAN ROOM ROBOT WITH R30iB CONTROLLER THESE ROBOTS ARE NEW OR LIKE NEW DATE OF MFG. 2017 STK#103917 ====================================== SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER: Robot Specifications: Axes: 6 Payload: 7.00kg H-Reach: 717.00mm Repeatability: ±0.0200mm Robot Mass: 25.00kg Structure: Articulated Mounting: Floor Robot Motion Speed: J1 450 °/s (7.85 rad/s) J2 380 °/s (6.63 rad/s) J3 520 °/s (9.08 rad/s) J4 550 °/s (9.6 rad/s) J5 545 °/s (9.51 rad/s) J6 1000 °/s (17.45 rad/s) Robot Motion Range: J1 ±360° J2 ±245° J3 ±420° J4 ±380° J5 ±250° J6 ±720° This robot has a footprint of only 190 mm x 190 mm, a low acoustic decibel, and average power consump- tion at only 0.5 kW, the FANUC LR Mate 200iD/7C doesn't take up much space, sound, or energy. It is also dust-proof, with an IP67 rating, and an IP69K rating for those industries that need the robot to be cleaned with hot, high pressure jets. The LRMate 200iD/7C is a clean room class 10, meaning it can be used when working with highly sensitive parts. Equipped With: R30iB MATE CONTROLLER CABLES COLOR I TEACH PENDANT

Specifications

ManufacturerFANUC
ModelLR MATE 200ID/7C CLEAN ROOM 6 AXIS ROBOT WITH R30IB
Year2017
ConditionUsed
Stock Number103917
