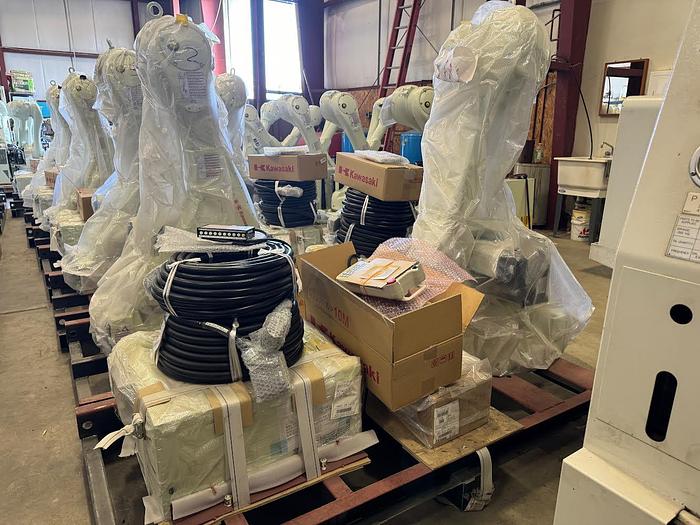

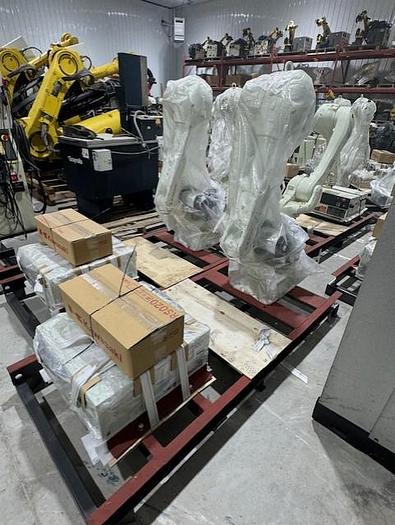

MULTIPLE NEW NEVER USED KAWASAKI ROBOT MODEL RS020N, 20KG X 1725MM REACH WITH EO1 CONTROLS, CABLES & TEACH

MULTIPLE NEW NEVER USED KAWASAKI ROBOT MODEL RS020N, 20KG X 1725MM REACH WITH EO1 CONTROLS, CABLES & TEACH

Contact us for price

Location:Imlay City, MI

orCall 1-231-526-7135 fax

Description

MULTIPLE NEW NEVER USED KAWASAKI ROBOT MODEL RS020N, 20KG X 1725MM REACH WITH EO1 CONTROLS, CABLES & TEACH

YEAR, 21/22

STOCK# 104088


SPECIFICATIONS:

====================================================================

PAYLOAD: 20KG

MAX. REACH: 1725MM

ROBOT CATEGORY: GENERAL PURPOSE ROBOTS (3-80KG PAYLOAD)

MOUNTING: FLOOR, CEILING

ROBOT SERIES: R SERIES

POSITIONAL REPEATABILITY: 0.04MM


ROBOT MOTION RANGE (DEGREES):

ARM ROTATION (JT1): ±180

ARM OUT-IN (JT2): +155 - –105

ARM UP-DOWN (JT3): +150 - –163

WRIST SWIVEL (JT4): ±270

WRIST BEND (JT5): ±145

WRIST TWIST (JT6): ±360


MAXIMUM ROBOT MOTION SPEEDS (DEGREES PER SECOND):

ARM ROTATION (JT1): 190

ARM OUT-IN (JT2): 205

ARM UP-DOWN (JT3): 210

WRIST SWIVEL (JT4): 400

WRIST BEND (JT5): 360

WRIST TWIST (JT6): 610


ROBOT WRIST MOMENT OF INERTIA (KG X M SQUARED)

WRIST SWIVEL (JT4): 0.9

WRIST BEND (JT5): 0.9

WRIST TWIST (JT6): 0.3


ROBOT MASS (KG)

230


DEGREE OF PROTECTION

ROBOT WRIST: IP67

BASE AXES: IP65


APPLICATIONS:

MIG WELDING ROBOT

ARC WELDING ROBOT

MATERIAL HANDLING ROBOT

WATER JET CUTTING ROBOT

FIBERGLASS CUTTING ROBOT

MACHING TENDING ROBOT


EQUIPPED WITH:

KAWASAKI ROBOTICS E01 CONTROLLER

KAWASAKI ROBOT CONNECTION CABLES

KAWASAKI COLOR TEACH PENDANT

ROBOT RISER

KAWASAKI TRANSFORMER


DESCRIPTION:

Kawasaki’s R series robots are setting the benchmark for all small to medium duty

industrial robots. The compact design along with industry leading speed, reach, and work

range make the R series robots ideal for a wide range of applications in a multitude of

diverse industries.


Features:

High-speed operation

The light weight of the R series arm together with high output, high revolution motors provide industry leading

acceleration and high-speed operation. The acceleration rate automatically adjusts to suit the payload and robot

posture to deliver optimum performance and the shortest cycle times.


High torque:

High output motors combined with a rigid arm construction deliver superior wrist torque and load capacity. This

high torque rating lets system designers select from a broad range of end-of-arm tooling, as well as provides more

­flexibility when working with complex workpieces.


Wide work range:

In addition to extending the robot’s maximum reach, the rotation range of each axis has also been increased. The

extended motion range translates to a larger usable work area with minimal dead space and greater fl­exibility.

Environmental protection


The R series incorporates a double seal construction on all axes and water-resistant electrical connections, offering

an IP67 classification for the wrist and IP65 for the remaining axes. If a washdown arm is required, the entire

robot can be provided as IP67. (Except for the RS003N, RS005N and RS005L)


Integrated features:

Built-in pneumatic lines and internal wiring for sensors and solenoid valves are standard. Mounting pads and taps

are provided to allow the easy installation of additional cabling, tubing or equipment

Specifications

ManufacturerMULTIPLE NEW NEVER USED KAWASAKI
ModelROBOT MODEL RS020N, 20KG X 1725MM REACH WITH EO1 CONTROLS, CABLES & TEACH
ConditionUsed
Stock Number104088
