FANUC M-410iC/110 NEW NEVER USED 4 AXIS PALLETIZING ROBOT WITH R-30iB PLUS CONTROLLER

FANUC M-410iC/110 NEW NEVER USED 4 AXIS PALLETIZING ROBOT WITH R-30iB PLUS CONTROLLER

Contact us for price

Imlay City, MI

orCall 1-231-526-7135 fax

Description

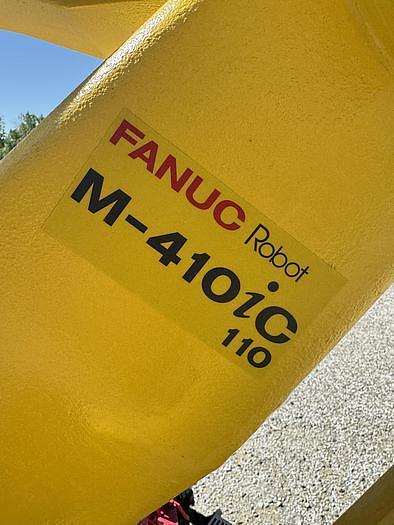

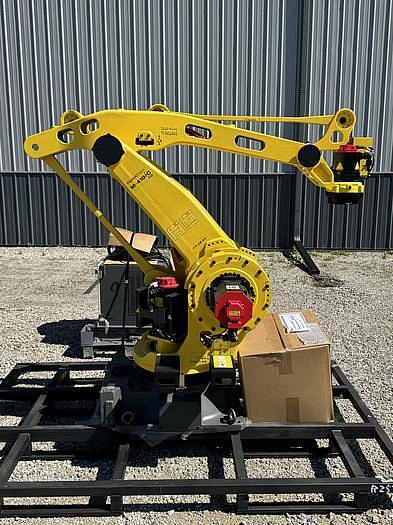

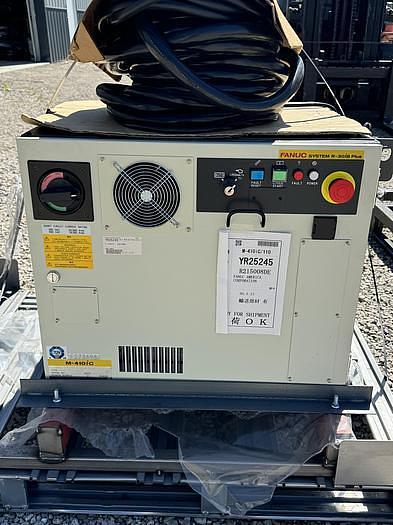

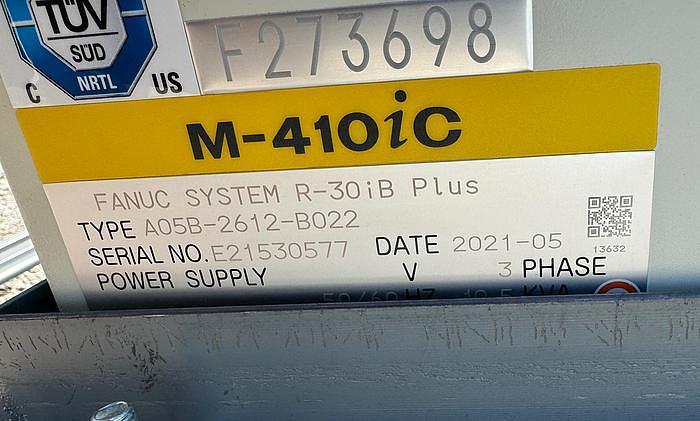

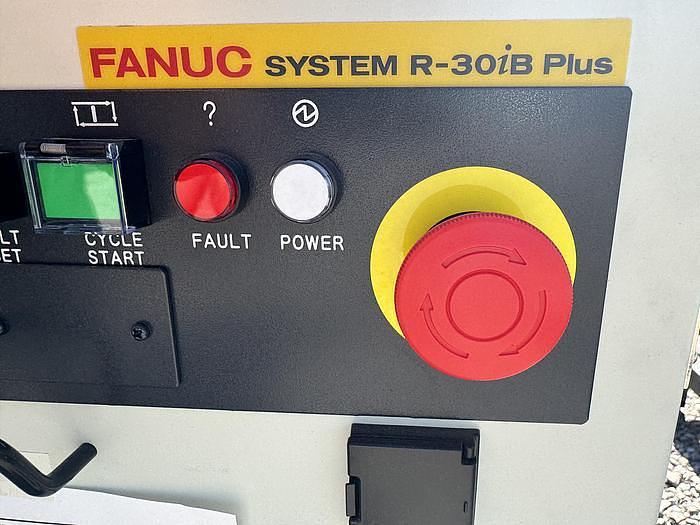

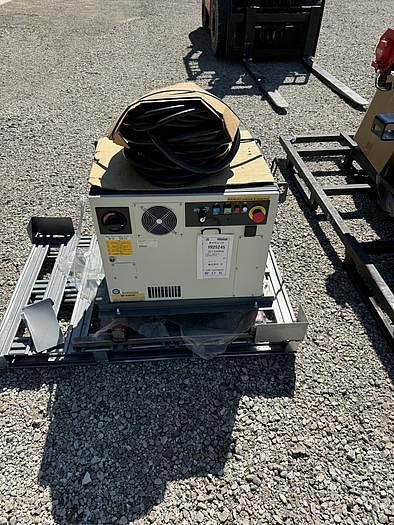

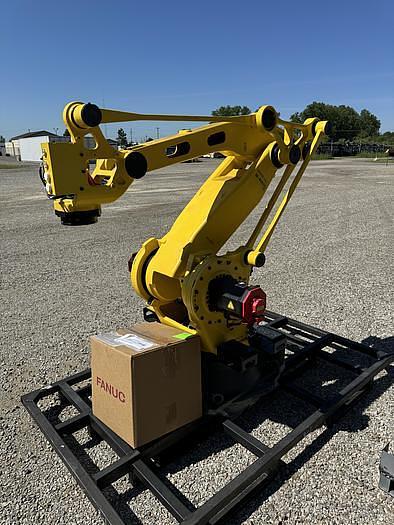

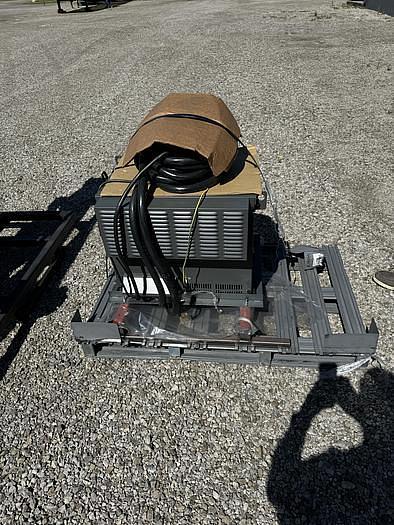

1-NEW NEVER USED FANUC M-410iC/110 4 AXIS PALLETIZING ROBOT WITH R-30iB PLUS CONTROLLER

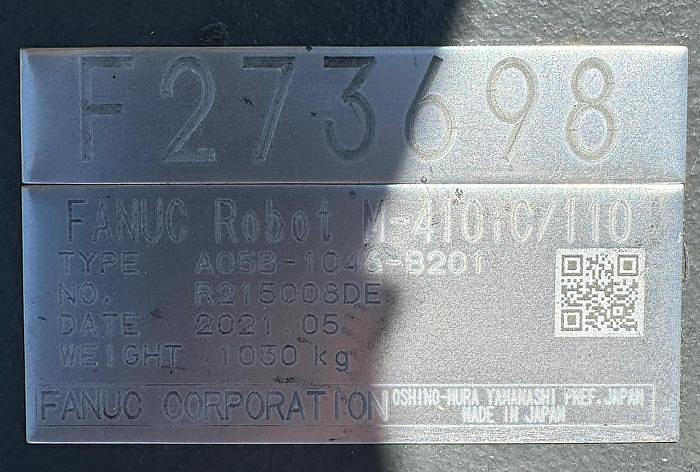

SERIAL NUMBER F273698

DATE OF MFG. 05/2021

STK#104093

======================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:


PAYLOAD 110 kg

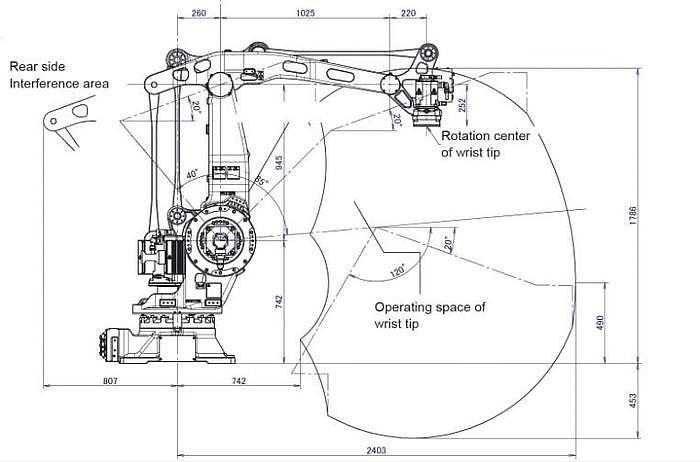

REACH 2,403 mm

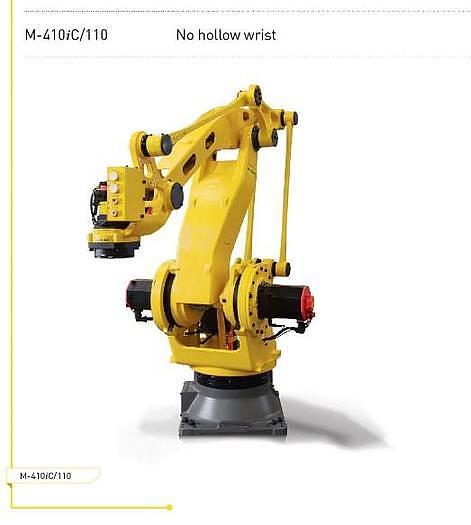

The Fanuc M-410iC/110 robot is the smallest in this new series of Fanuc palletizing robots. It runs on the Fanuc R30iB and R30iB Plus controller platform. With lighter payload this robot is designed to run faster than its bigger variants.


Robot Specifications:

Axes: 4

Payload: 110 kg

H-Reach: 2403mm

Repeatability: ±0.5mm

Robot Mass: 1030kg

Structure: Articulated

Mounting: Floor


Robot Motion Speed:

J1 145°/s (1.48 rad/s)

J2 130°/s (1.48 rad/s)

J3 140°/s (1.48 rad/s)

J4 420 °/s (3.49 rad/s)


Robot Motion Range:

J1 ±370°

J2 ±125°

J3 ±140°

J4 ±720°


Applications:

Material Handling Robots

Packaging Robots

Palletizing Robots


Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.

Fanuc M-410 Series Robots in stock

ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND

BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS

AND CONDITIONS.

www.harbormachinery.com

231-526-9525


Specifications

ManufacturerFANUC
ModelM-410iC/110 NEW NEVER USED 4 AXIS PALLETIZING ROBOT WITH R-30iB PLUS CONTROLLER
ConditionUsed
Stock Number104093
