ACME/FANUC ROBOTIC POLISHING CELL WITH FANUC M710IB/45 ROBOT
No longer available
ACME/FANUC ROBOTIC POLISHING CELL WITH FANUC M710IB/45 ROBOT
Harbor Springs, MI
Description

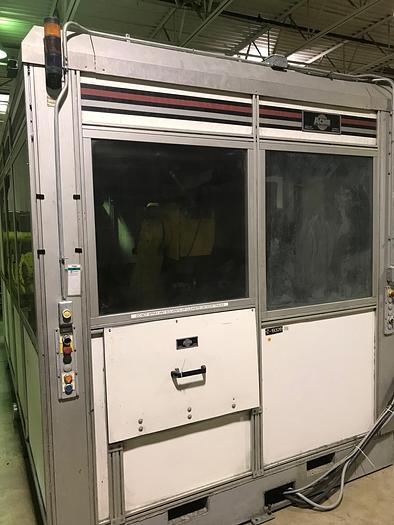

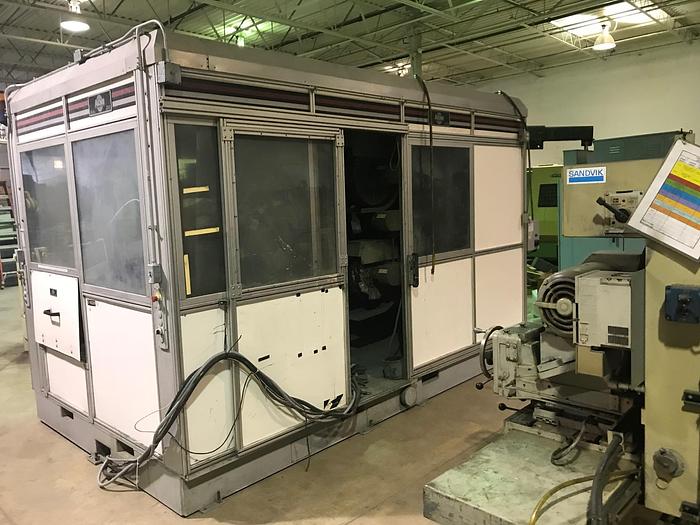

FULLY INTEGRATED ACME SANDING AND POLISHING CELL.
CELL IS FULLY ENCLOSED WITH FORKLIFT POCKETS FOR
EASY RELOCATION IN YOUR PLANT.

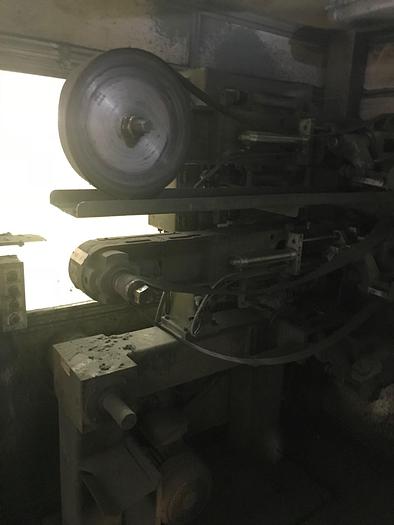

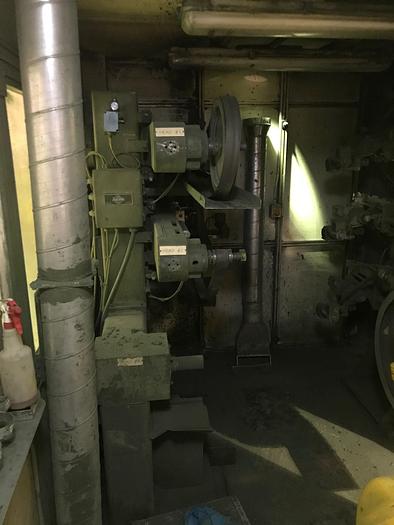

2 ACME SANDING STATIONS

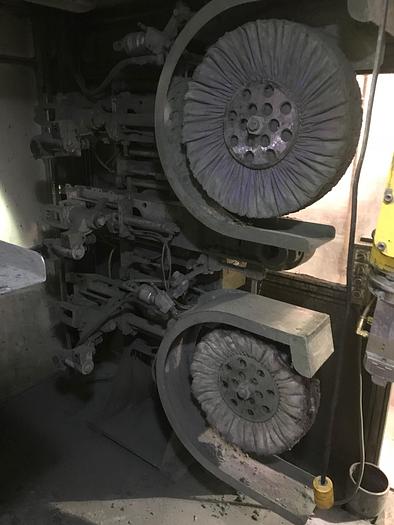

2 ACME BUFFING POLISHING STATIONS

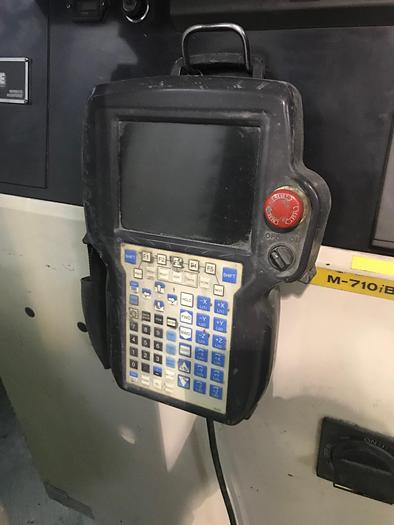

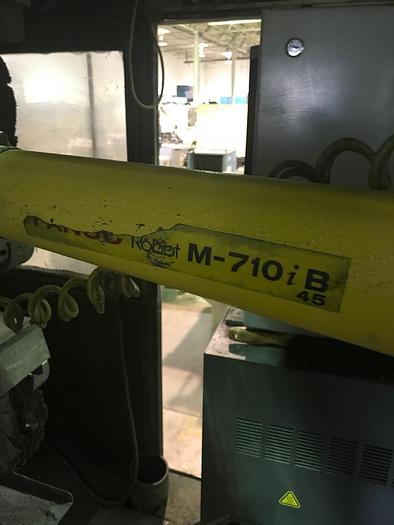

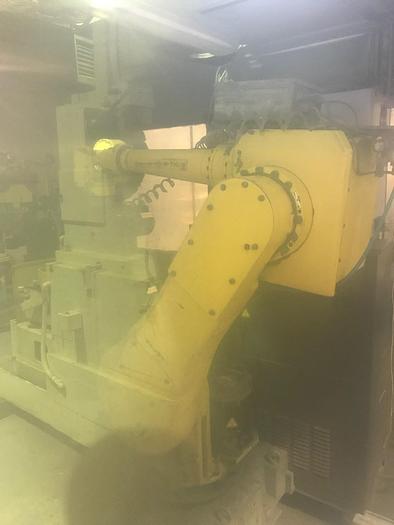

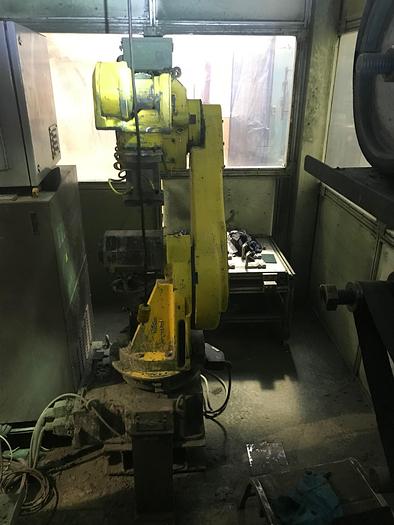

1 FANUC M710iB/45 6 AXIS CNC ROBOT WITH RJ3iB CONTROLLER
Robot Motion Speed
J1 160 °/s (2.79 rad/s)
J2 120 °/s (2.09 rad/s)
J3 150 °/s (2.62 rad/s)
J4 240 °/s (4.19 rad/s)
J5 240 °/s (4.19 rad/s)
J6 340 °/s (5.93 rad/s)
Robot Motion Range
J1 +320° - 350°
J2 ±260°
J3 ±420°
J4 ±540°
J5 ±250°
J6 ±720°

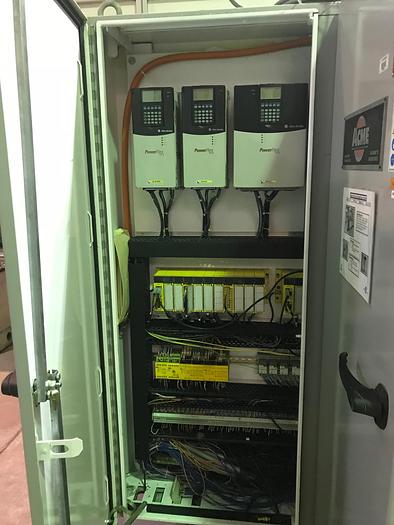

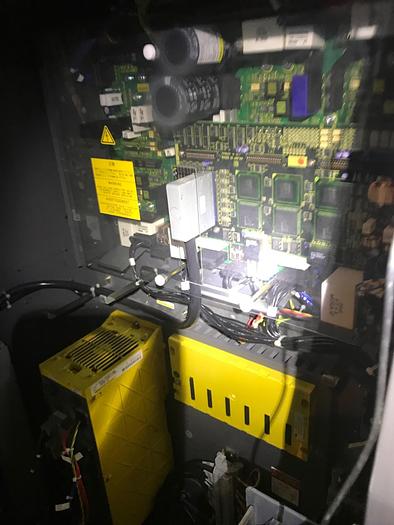

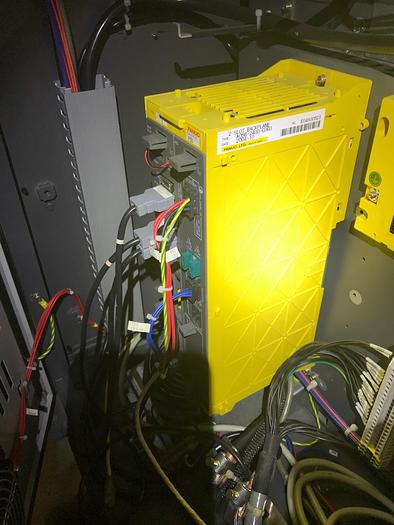

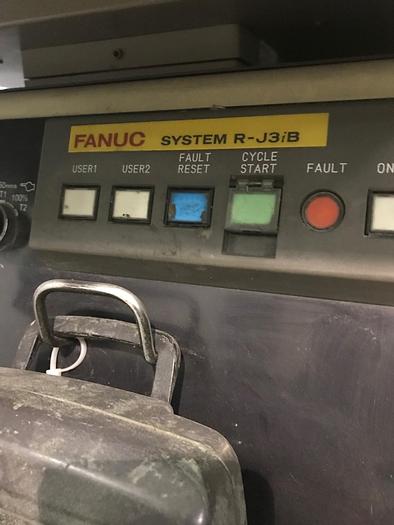

The FANUC R-J3iB uses advanced technology packaged in a proven,
reliable and efficient controller design. Process capability and open
architecture features provide intelligence to improve application and
motion performance while simplifying system integration. The R-J3iB
Controller incorporates the plug-in options concept, which allows
flexibility for application specific configurations while maintaining
a commonality for all users of the system.
Specifications
Manufacturer | ACME/FANUC |
Model | M710iB/45 |
Year | 2005 |
Condition | Used |
Stock Number | 103666 |
Axes | 6 |
Rj3ib | A05B-2490-C372 |
H-reach | 1706.00mm |
Payload | 45.00kg |
Mounting | Floor, Inverted, Angle |
Structure | Articulated |
Robot mass | 530.00kg |
Repeatability | ±0.0700mm |
