FANUC ROBOT MODEL ARCMATE 120iC WITH R-30iA CONTROLS, LINCOLN POWER SUPPLY i400, TORCH TIP AND MORE

30+ FANUC ROBOT MODEL ARCMATE 120iC WITH R-30iA CONTROLS, LINCOLN POWER SUPPLY i400, TORCH TIP AND MORE

STOCK # 104168

YEAR 2013

CATALOG SPECS

========================================================================

Robot Specifications:

Axes:.............6

Payload:........10 kg

H-Reach:.......2009 mm

Repeatability:± 0.01 mm

Robot Mass: 255 kg

Structure: .....Articulated

Mounting:.....Floor, Inverted, Angle

Robot Motion Speed:

J1...... 195°/s (3.4 rad/s)

J2...... 175°/s (3.05 rad/s)

J3...... 180°/s (3.14 rad/s)

J4...... 400°/s (6.98 rad/s)

J5...... 400°/s (6.98 rad/s)

J6...... 600°/s (10.47 rad/s)

Robot Motion Range:

J1...... ±370°

J2...... ±260°

J3...... ±460°

J4...... ±400°

J5...... +380°- 280°

J6...... +900°- 540°

Robot Applications:

Arc Welding 􏰃

Plasma Cutting 􏰃

Plasma Welding

FANUC ARC Mate 120iC/10L is the long arm version of its series and can easily get to hard to reach work pieces. An extended horizontal reach of 2,009 millimeters gives the ARC Mate 120iC/10L a wide work envelope. A 10 kilogram maximum payload capacity provides the FANUC 120iC/10L R30iA arc welding robot more than enough strength to hold and maneuver an arc welding torch.

EQUIPPED WITH:

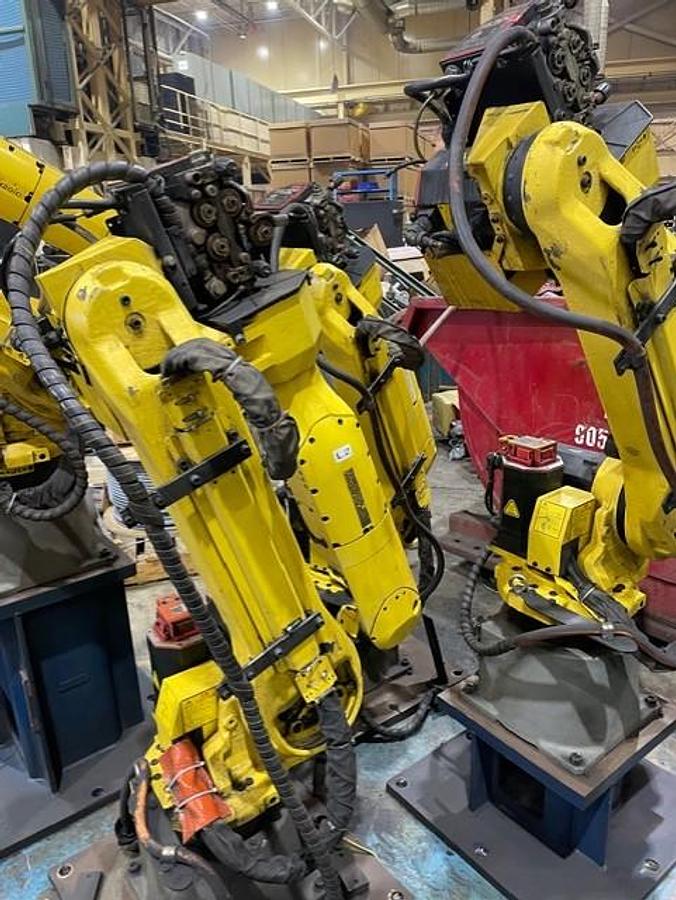

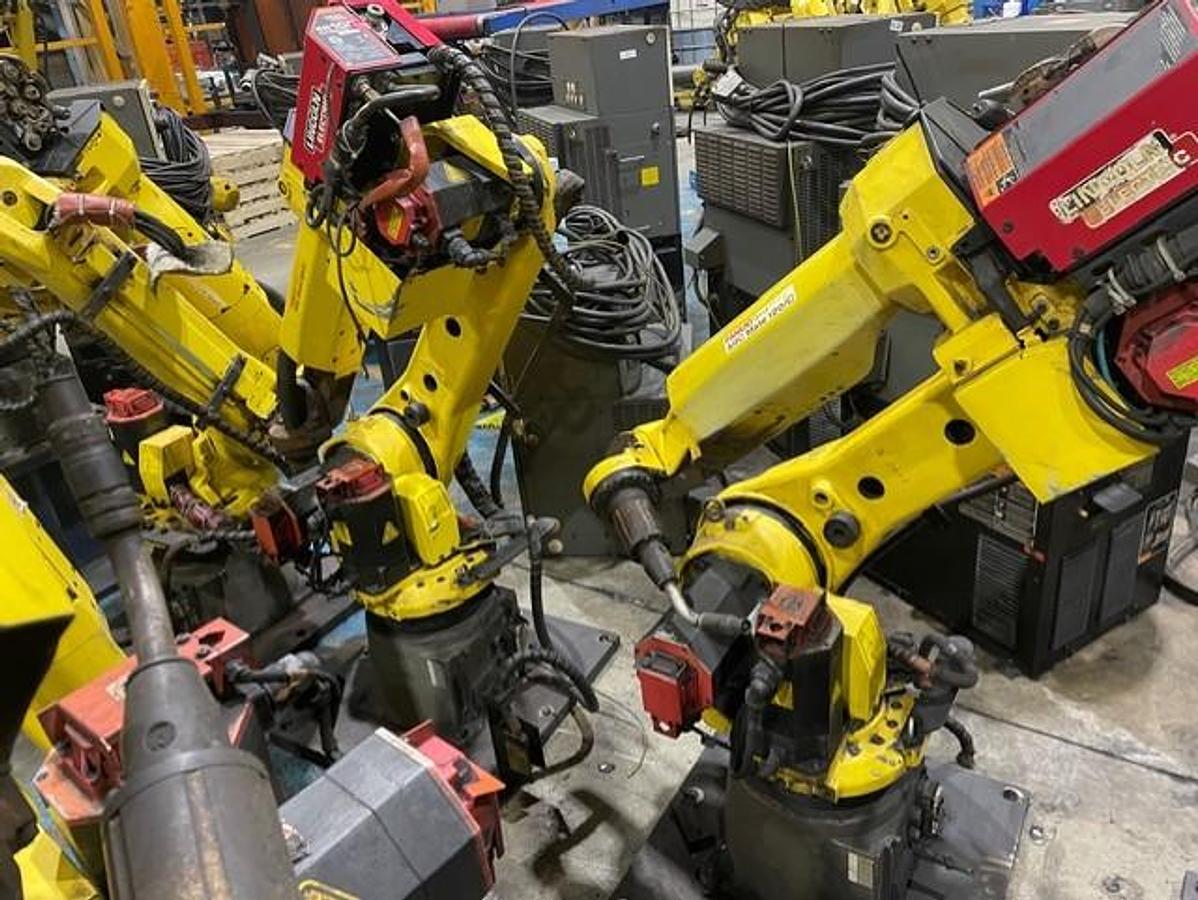

MECHANICAL ARM

GUN MIG WELDING TORCH

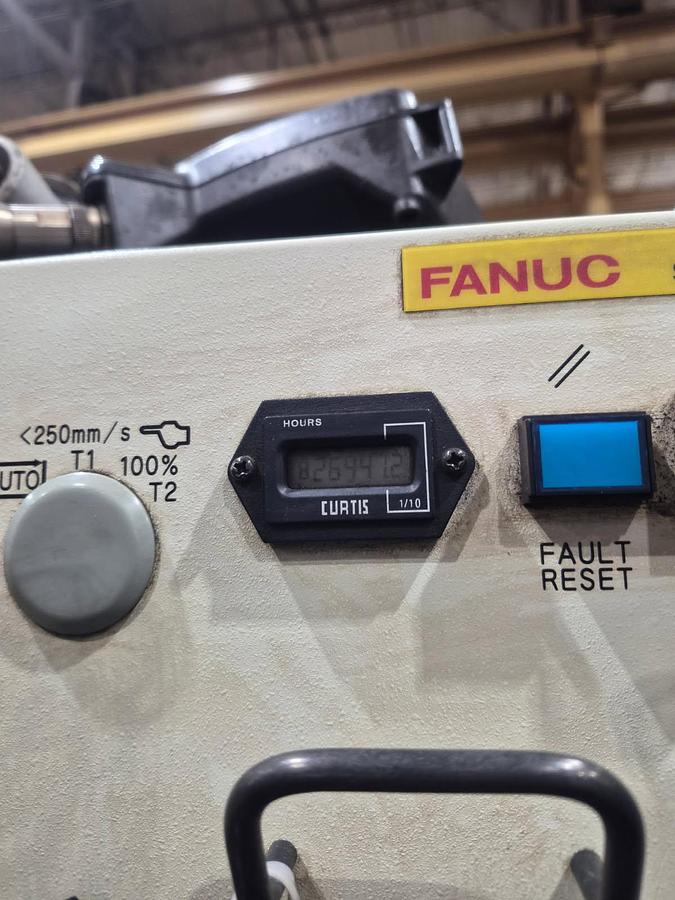

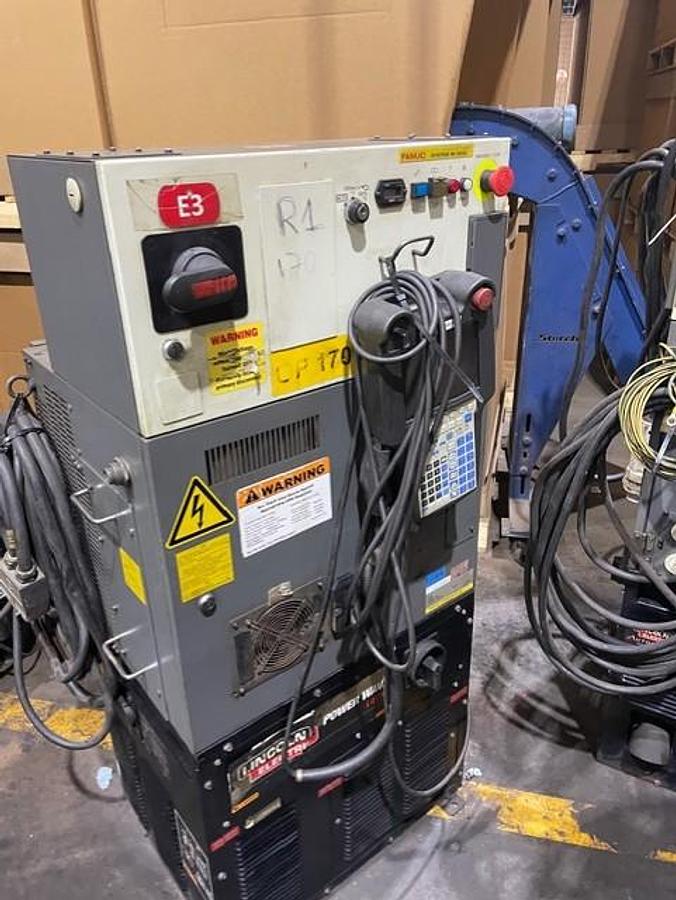

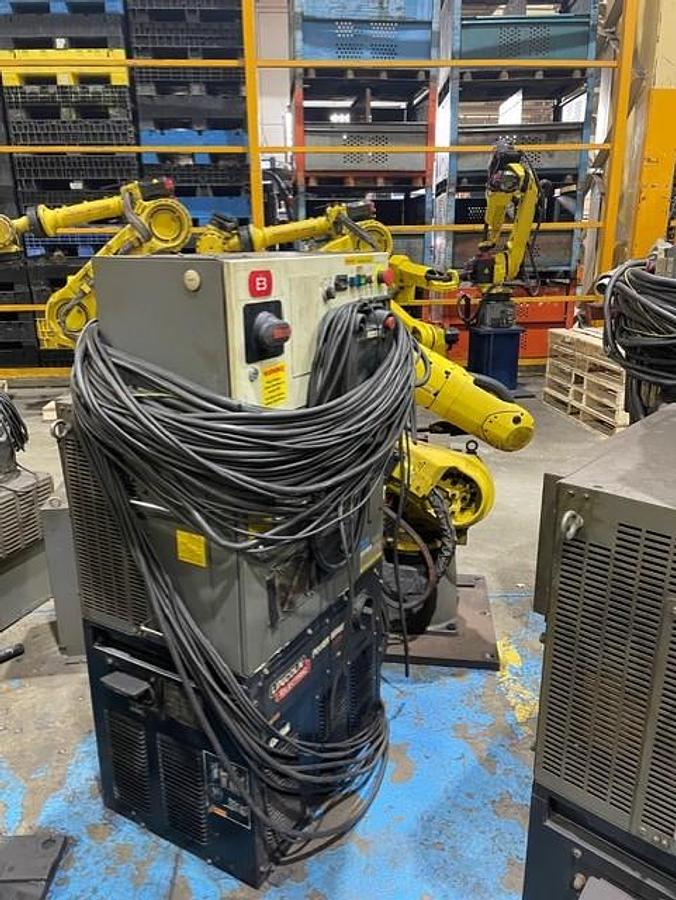

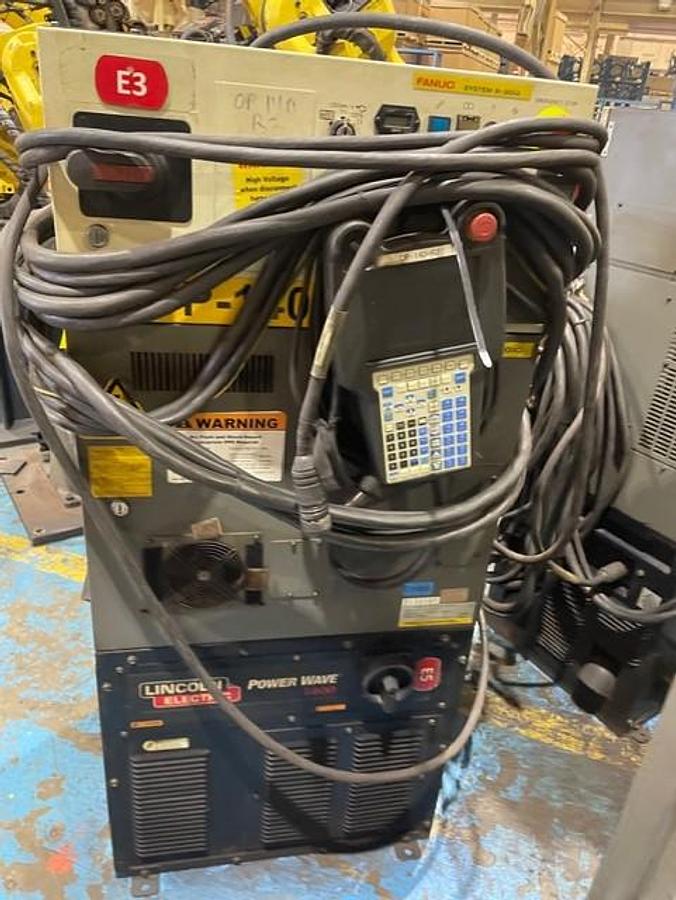

FANUC R30iA CONTROLLER

CONNECTION CABLES

COLOR IPENDANT TEACH PENDANT

LINCOLN i400 WELDING POWER SUPPLY
