2012 FANUC R2000IB/100P 6 AXIS 3500 MM X 100 KG PEDESTALL MOUNT ROBOT

2012 FANUC R2000IB/100P 6 AXIS 3500 MM X 100 KG PEDESTALL MOUNT ROBOT

$17,000 (USD)

Location:Imlay City, MI

orCall 1-231-526-7135 fax

Description

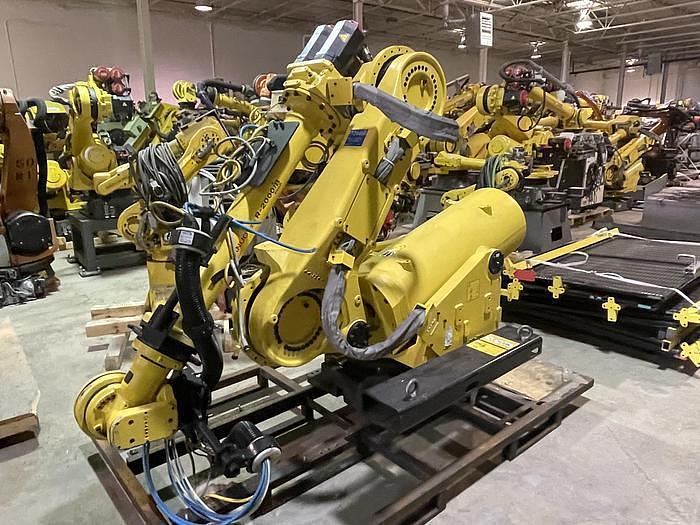

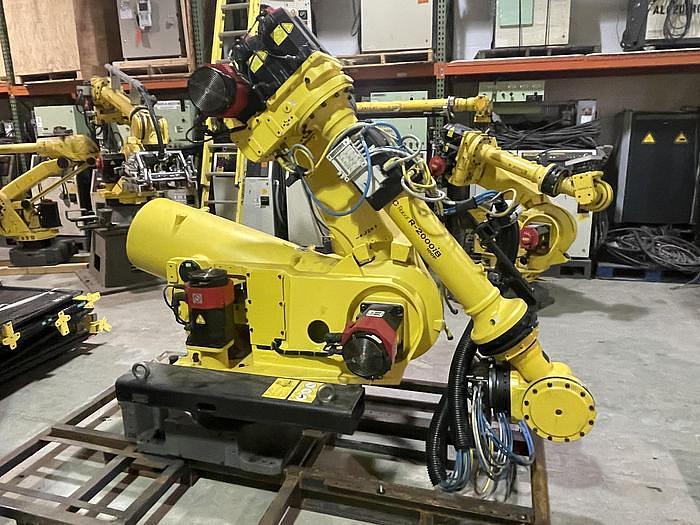

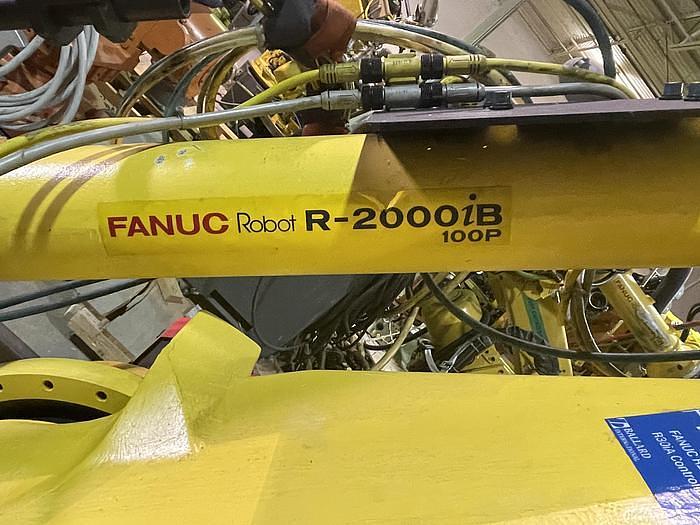

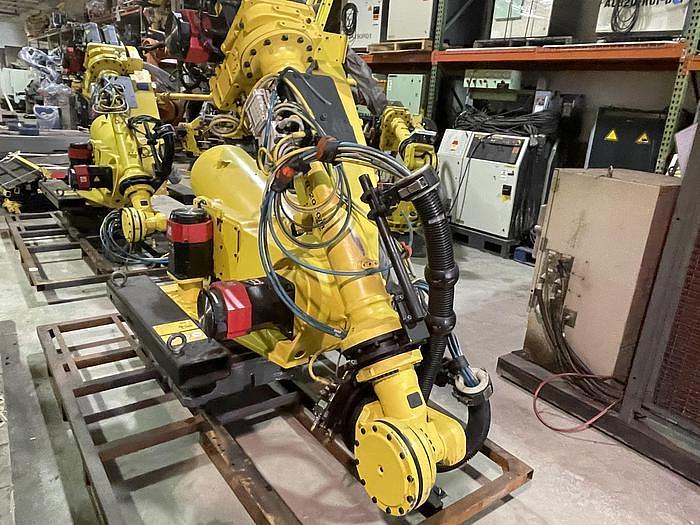

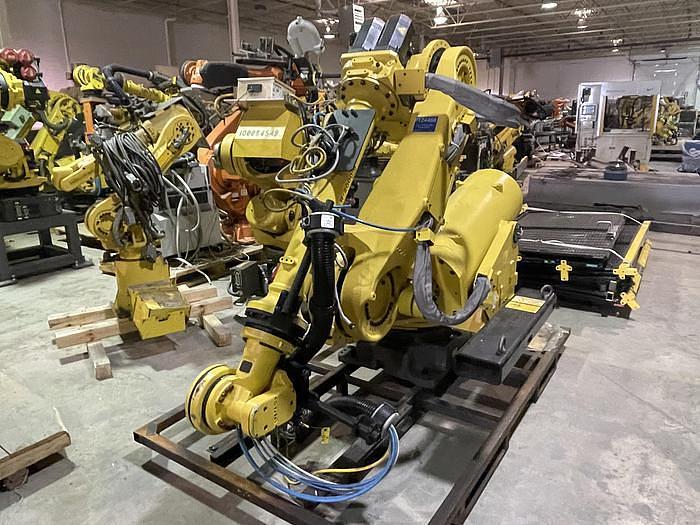

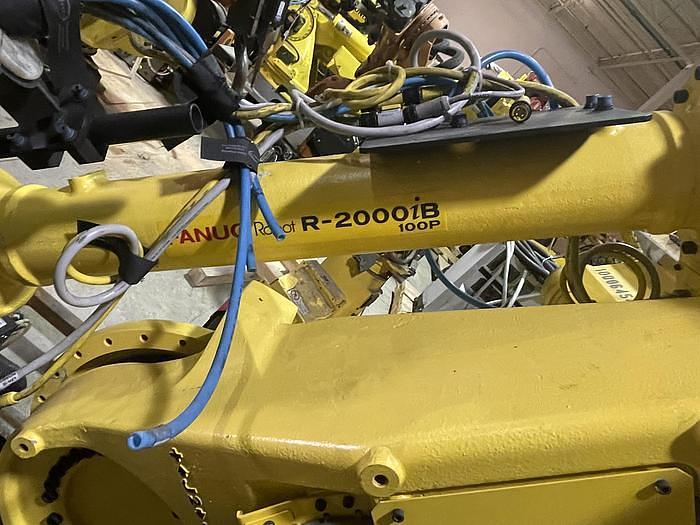

1-USED FANUC R2000iB/100P 6 AXIS CNC ROBOT WITH R30iA CONTROLLER

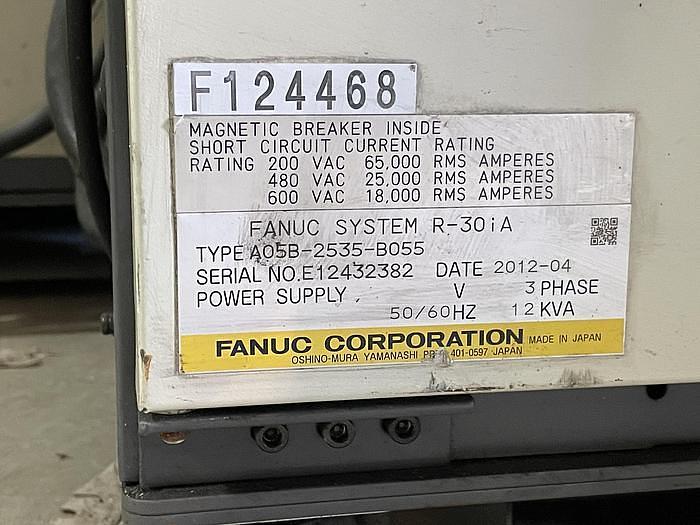

SERIAL NUMBER F124468

DATE OF MFG. 05/2012

STK#104018

==================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:


This FANUC R-2000iB/100P is designed with a long reach (3500 mm) and is used for many applications such as spot welding, material handling, and dispensing. The FANUC R2000iB/100P RJ3iC/ R-30iB is pedestal mounted, using up little space on the work floor.

The R2000iB/100P R30iA delivers high performance while saving room on the automation floor. It's attributes give it the versatility to perform its applications in a wide range of areas, including the ability to work on more than one station at a time, due to its large work envelope. The longer reach also gives manufacturers more layout versatility when planning the layout of their system, whether it be next to existing systems, or part of a brand new automation layout.


Robot Specifications:

Axes: 6

Payload: 100.00kg

H-Reach: 3500.00mm

Repeatability: ±0.3000mm

Robot Mass: 1570.00kg

Structure: Articulated

Mounting: Pedestal


Robot Motion Speed:

J1 110 °/s (1.92 rad/s)

J2 90 °/s (1.57 rad/s)

J3 110 °/s (1.92 rad/s)

J4 120 °/s (2.09 rad/s)

J5 120 °/s (2.09 rad/s)

J6 190 °/s (3.32 rad/s)


Robot Motion Range:

J1 ±360°

J2 ±185°

J3 ±365°

J4 ±720°

J5 ±250°

J6 ±720°


Robot Applications:

Machine Loading Robots

Machine Tending Robots

Material Handling Robots

Palletizing Robots

Pick and Place Robots

Fiberglass Cutting Robots

Foundry Robots


EQUIPPED WITH:

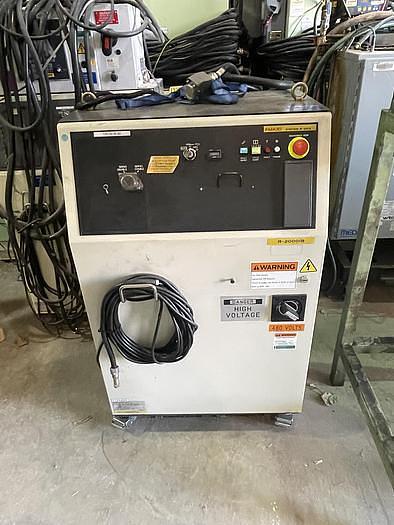

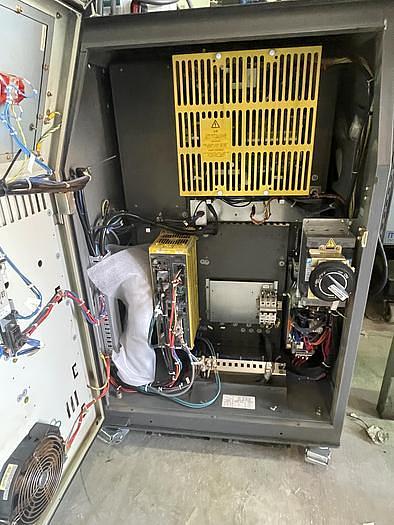

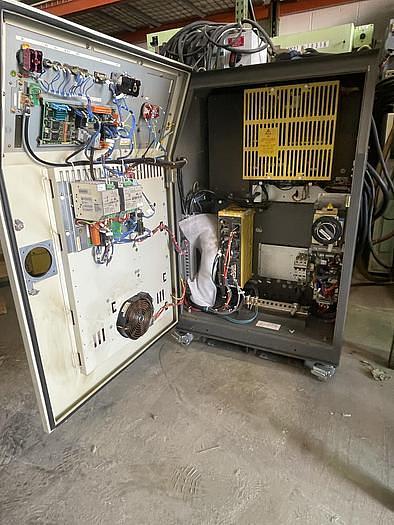

FANUC R30iA CONTROLLER

FANUC ROBOT CONNECTION CABLES

FANUC TEACH PENDANT


FOB TRUCK, IMLAY CITY, MI 48444


Specifications

ManufacturerFANUC
ModelR2000IB/100P 6 AXIS 3500 MM X 100 KG PEDESTALL MOUNT ROBOT
Year2012
ConditionUsed
Stock Number104018
